利用大模型deepseek对中文文本、图片以及pdf中的非结构化文本内容进行分析，并提取主-谓-宾（SPO）三元组的知识形式，以及将这些关系可视化为知识图谱，完整项目见https://github.com/jiangnanboy/llm-knowledge-graph。

这里利用deepseek进行相关分析

• OCR: 对图片和pdf进行OCR识别提取文本
• 分块: 文本分块
• 知识抽取: 抽取实体和关系
• 实体标准化: 确保实体名的一致性
• 关系推理: 对图谱中未连接的实体进行关系推理
• 可视化: 图形可视化html

控制台输出:

==================================================
1: 三元组抽取
==================================================
Processing text in 8 chunks (size: 500 words, overlap: 100 words)
Processing chunk 1/8 (463 words)
response:<Response [200]>
Processing chunk 2/8 (463 words)
response:<Response [200]>
Processing chunk 3/8 (460 words)
response:<Response [200]>
Processing chunk 4/8 (457 words)
response:<Response [200]>
Processing chunk 5/8 (463 words)
response:<Response [200]>
Processing chunk 6/8 (463 words)
response:<Response [200]>
Processing chunk 7/8 (463 words)
response:<Response [200]>
Processing chunk 8/8 (249 words)
response:<Response [200]>

Extracted a total of 239 triples from all chunks

==================================================
2: 实体标准化
==================================================
Starting with 239 triples and 217 unique entities
Standardizing entity names across all triples...
response:<Response [200]>
Found JSON in code block, extracting content...
Applied LLM-based entity standardization for 15 entity groups
Removed 10 self-referencing triples
Standardized 217 entities into 199 standard forms
After standardization: 229 triples and 138 unique entities

==================================================
3: 关系推理
==================================================
Starting with 229 triples
Top 5 relationship types before inference:
  - 提高: 29 occurrences
  - 加强: 25 occurrences
  - 建设: 18 occurrences
  - 注重: 11 occurrences
  - 提供: 8 occurrences
Inferring additional relationships between entities...
Identified 3 disconnected communities in the graph
response:<Response [200]>
Inferred 3 new relationships between communities
response:<Response [200]>
Inferred 6 new relationships between communities
response:<Response [200]>
Inferred 9 new relationships between communities
response:<Response [200]>
Inferred 7 new relationships within communities
Inferred 142 relationships based on lexical similarity
Added 192 inferred relationships

Top 5 relationship types after inference:
  - is type of: 142 occurrences
  - 提高: 24 occurrences
  - 建设: 17 occurrences
  - 加强: 16 occurrences
  - 注重: 10 occurrences

Added 225 inferred relationships
Final knowledge graph: 421 triples

可视化html保存在以下路径中:
llm-knowledge-graph\data\knowledge_graph.html

工作流程

1. 分块: 文档被分割成重叠的块，以适应LLM的上下文窗口
2. SPO三元组抽取:

• 每个块由LLM处理，提取主语-谓语-宾语三元组
• LLM识别实体及其在每个文本段中的关系
• 收集所有块的结果以形成初始知识图

3.实体标准化:

• • 通过文本规范化实现基本标准化
  • 当启用时，LLM检查图中的所有唯一实体，并识别引用相同概念的组
  • 这解决了相同实体在不同块中出现不同的情况（例如，“百度”，“百度科技”，“百度公司”）
  • 标准化有助于创建一个更加连贯的知识图谱

4.关系推理:

• • 传递关系的自动推理
  • LLM分析来自不相连社区的代表性实体，并推断出合理的关系
  • 通过添加文本中没有明确说明的逻辑连接来减少图谱碎片
  • 基于规则和基于llm的推理方法一起工作，以创建更全面的图谱

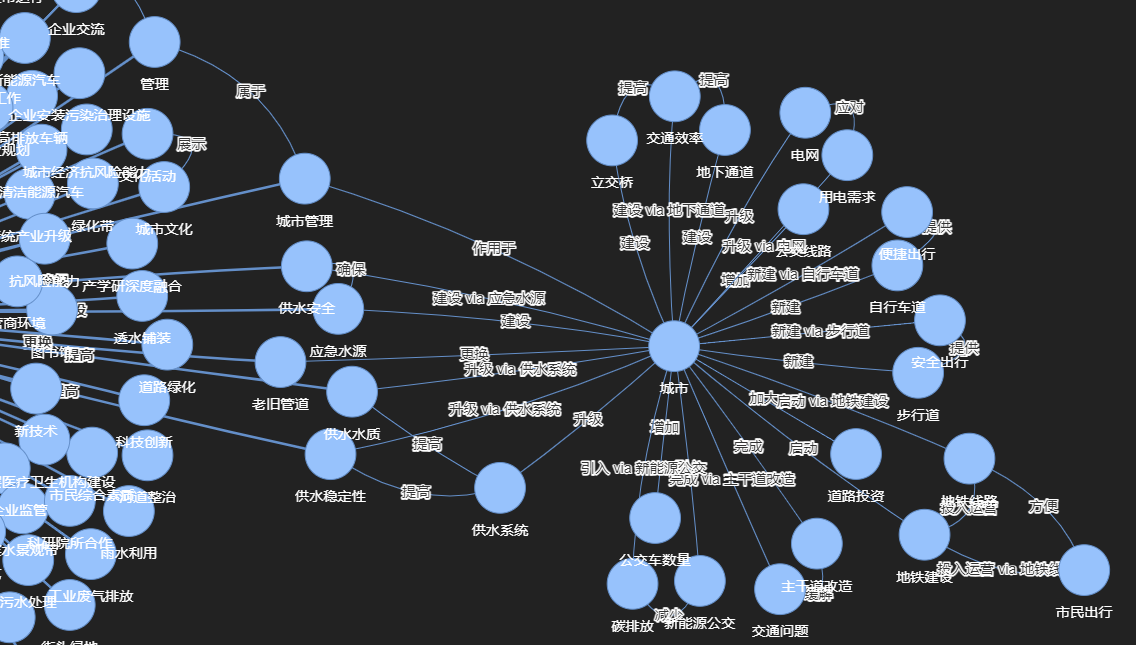

5.可视化:

HTML可视化

可视化

• 利用networks与pyvis进行三元组可视化

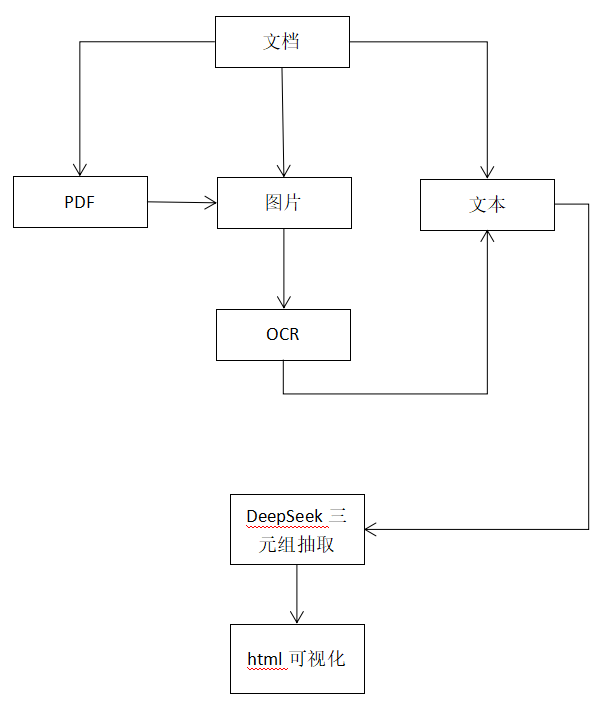

程序流程
