一、器材

TCS230

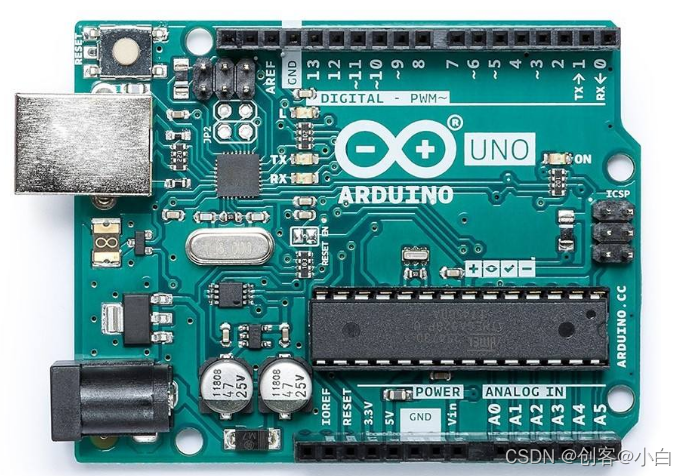

arduino uno

二、接线

三、程序

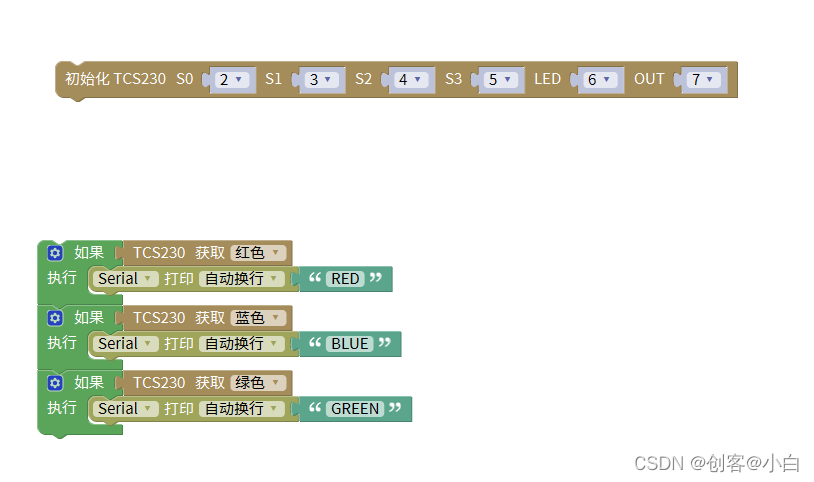

mixly程序

 arduino程序

#define tcs230_S0 2
#define tcs230_S1 3
#define tcs230_S2 4
#define tcs230_S3 5
#define tcs230_sensorOut 7
#define tcs230_LED 6

//TCS230颜色传感器获取RGB值
int tcs230_Getcolor(char data)
{
  int frequency = 0;
  switch(data)
  {
    case 'R':
    {
      digitalWrite(tcs230_S2,LOW);
      digitalWrite(tcs230_S3,LOW);
      frequency = pulseIn(tcs230_sensorOut, LOW);
      frequency = map(frequency, 25, 72, 255, 0);
      break;
    }
    case 'G':
    {
      digitalWrite(tcs230_S2,HIGH);
      digitalWrite(tcs230_S3,HIGH);
      frequency = pulseIn(tcs230_sensorOut, LOW);
      frequency = map(frequency, 30, 90, 255, 0);
      break;
    }
    case 'B':
    {
      digitalWrite(tcs230_S2,LOW);
      digitalWrite(tcs230_S3,HIGH);
      frequency = pulseIn(tcs230_sensorOut, LOW);
      frequency = map(frequency, 25, 70, 255, 0);
      break;
    }
    default:
      return -1;
  }
  if (frequency < 0)
    frequency = 0;
  if (frequency > 255)
    frequency = 255;
  return frequency;
}

void setup(){
  pinMode(tcs230_S0, OUTPUT);
  pinMode(tcs230_S1, OUTPUT);
  pinMode(tcs230_S2, OUTPUT);
  pinMode(tcs230_S3, OUTPUT);
  pinMode(tcs230_LED, OUTPUT);
  pinMode(tcs230_sensorOut, INPUT);
  digitalWrite(tcs230_S0,HIGH);
  digitalWrite(tcs230_S1,LOW);
  digitalWrite(tcs230_LED,HIGH);
  Serial.begin(9600);
}

void loop(){
  if (tcs230_Getcolor('R')) {
    Serial.println("RED");

  }
  if (tcs230_Getcolor('B')) {
    Serial.println("BLUE");

  }
  if (tcs230_Getcolor('G')) {
    Serial.println("GREEN");

  }

}

四、效果

识别到红色打印RED,绿色打印GREEN，蓝牙打印BLUE

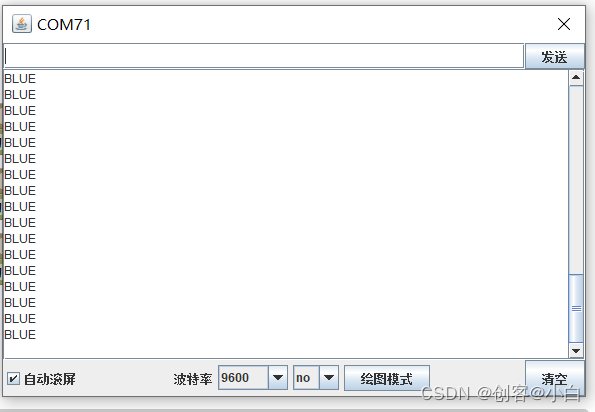

图中的效果是我测试蓝色的物体
