大数据应用之 — apache doris 基于ssb测试

下载doris的ssb-tools

https://github.com/apache/doris

将 doris-master\tools\ssb-tools 上传到lsyk01:/softw
下载 ssb-gen工具包(因为虚拟机没有联网)

https://palo-cloud-repo-bd.bd.bcebos.com/baidu-doris-release/ssb-dbgen-linux.tar.gz

上传至 lsyk01:/softw/ssb-tools

修改脚本 /softw/ssb-tools/build-ssb-dbgen.sh

vi /softw/ssb-tools/build-ssb-dbgen.sh
#修改如下：不去下载了，直接解压下载好的包
# download ssb-dbgen first
if [[ -d $SSB_DBGEN_DIR ]]; then
    echo "Dir $CURDIR/ssb-dbgen/ already exists. No need to download."
    echo "If you want to download ssb-dbgen again, please delete this dir first."
else
    #curl https://palo-cloud-repo-bd.bd.bcebos.com/baidu-doris-release/ssb-dbgen-linux.tar.gz | tar xz -C $CURDIR/
    tar -zxvf $CURDIR/ssb-dbgen-linux.tar.gz -C $CURDIR/
fi

编译ssb-gen

cd /softw/ssb-tools
sh build-ssb-dbgen.sh

生成测试数据

sh gen-ssb-data.sh -s 40

du -sh *
110M    customer.tbl
228K    date.tbl
2.4G    lineorder.tbl.1
2.4G    lineorder.tbl.10
2.4G    lineorder.tbl.2
2.4G    lineorder.tbl.3
2.4G    lineorder.tbl.4
2.4G    lineorder.tbl.5
2.4G    lineorder.tbl.6
2.4G    lineorder.tbl.7
2.4G    lineorder.tbl.8
2.4G    lineorder.tbl.9
99M     part.tbl
6.5M    supplier.tbl


wc -l *
    1200000 customer.tbl
       2556 date.tbl
   23996604 lineorder.tbl.1
   24001837 lineorder.tbl.10
   23992403 lineorder.tbl.2
   23996070 lineorder.tbl.3
   24003563 lineorder.tbl.4
   24005968 lineorder.tbl.5
   24005179 lineorder.tbl.6
   23998304 lineorder.tbl.7
   24002460 lineorder.tbl.8
   24009902 lineorder.tbl.9
    1200000 part.tbl
      80000 supplier.tbl

配置 doris-cluster.conf

# Any of FE host
export FE_HOST='lsyk01'
# http_port in fe.conf
export FE_HTTP_PORT=8030
# query_port in fe.conf
export FE_QUERY_PORT=9030
# Doris username
export USER='root'
# Doris password
export PASSWORD='fa'
# The database where SSB tables located
export DB='ssb'

建表

sh ./create-ssb-tables.sh
sh ./create-ssb-flat-table.sh

导入数据

sh ./load-ssb-dimension-data.sh

sh ./load-ssb-fact-data.sh -c 5

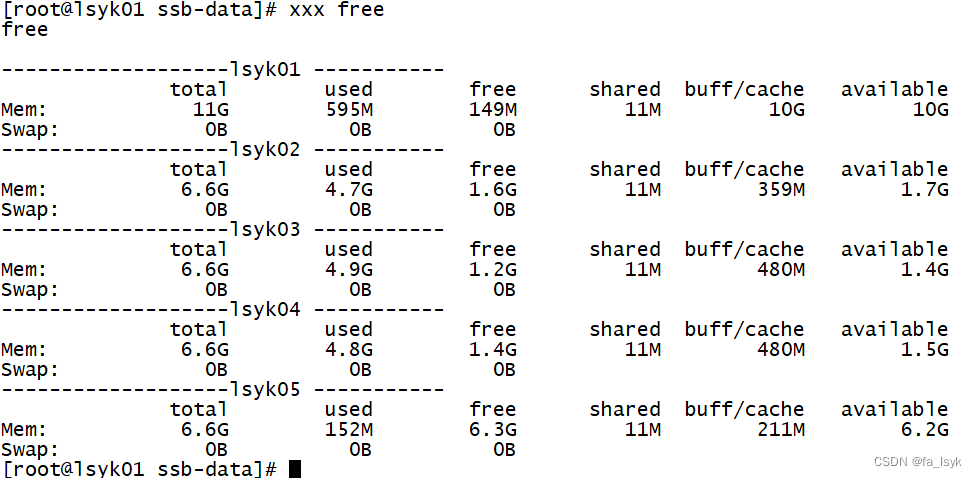

很吃内存：

在这里插入图片描述

用时 8分钟，大小大概6.8G，原文件是：24G

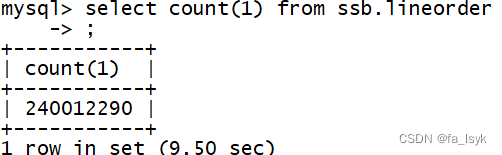

mysql> select count(1) from ssb.lineorder

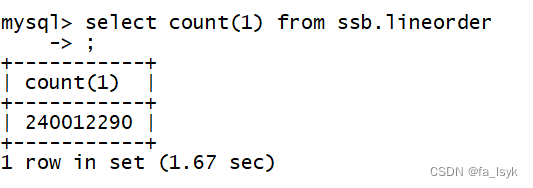

在这里插入图片描述

在这里插入图片描述
由此可见，apache doris 的缓存了得啊。。。

导入flat宽表

sh ./load-ssb-flat-data.sh

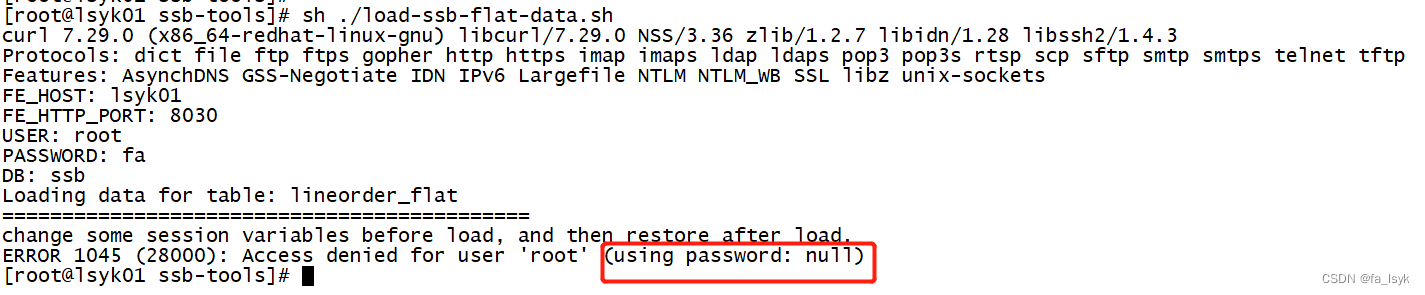

报错：

在这里插入图片描述

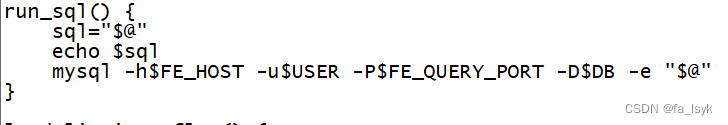

查看代码，发现没有指定密码：

在这里插入图片描述

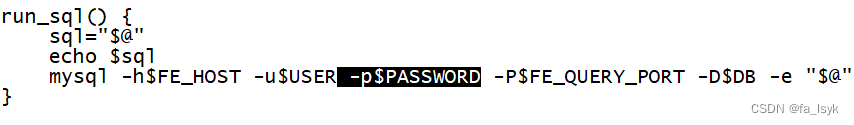

增加-p密码

在这里插入图片描述

耗时25分钟，还报错了,是内存不足了：

在这里插入图片描述

语句拿出来，半年一次，100秒，比官方的脚本快

挂了

在这里插入图片描述

INSERT INTO ssb.lineorder_flat
SELECT
    LO_ORDERDATE,
    LO_ORDERKEY,
    LO_LINENUMBER,
    LO_CUSTKEY,
    LO_PARTKEY,
    LO_SUPPKEY,
    LO_ORDERPRIORITY,
    LO_SHIPPRIORITY,
    LO_QUANTITY,
    LO_EXTENDEDPRICE,
    LO_ORDTOTALPRICE,
    LO_DISCOUNT,
    LO_REVENUE,
    LO_SUPPLYCOST,
    LO_TAX,
    LO_COMMITDATE,
    LO_SHIPMODE,
    C_NAME,
    C_ADDRESS,
    C_CITY,
    C_NATION,
    C_REGION,
    C_PHONE,
    C_MKTSEGMENT,
    S_NAME,
    S_ADDRESS,
    S_CITY,
    S_NATION,
    S_REGION,
    S_PHONE,
    P_NAME,
    P_MFGR,
    P_CATEGORY,
    P_BRAND,
    P_COLOR,
    P_TYPE,
    P_SIZE,
    P_CONTAINER
FROM (
    SELECT
        lo_orderkey,
        lo_linenumber,
        lo_custkey,
        lo_partkey,
        lo_suppkey,
        lo_orderdate,
        lo_orderpriority,
        lo_shippriority,
        lo_quantity,
        lo_extendedprice,
        lo_ordtotalprice,
        lo_discount,
        lo_revenue,
        lo_supplycost,
        lo_tax,
        lo_commitdate,
        lo_shipmode
    FROM ssb.lineorder
    -- WHERE ${con}
) l
INNER JOIN ssb.customer c
ON (c.c_custkey = l.lo_custkey)
INNER JOIN ssb.supplier s
ON (s.s_suppkey = l.lo_suppkey)
INNER JOIN ssb.part p
ON (p.p_partkey = l.lo_partkey);

select 'part',count(*) from ssb.part union all
select 'customer',count(*) from ssb.customer union all
select 'supplier',count(*) from ssb.supplier union all
select 'date',count(*) from ssb.dates union all
select 'lineorder',count(*) from ssb.lineorder union all
select 'lineorder_flat',count(*) from ssb.lineorder_flat

在这里插入图片描述

测试结果

set global enable_vectorized_engine=1;
set global parallel_fragment_exec_instance_num=8;
set global exec_mem_limit=48G;
set global batch_size=4096;
set global enable_projection=true;
set global runtime_filter_mode=global;

--Q1.1   0.68
SELECT
	SUM(LO_EXTENDEDPRICE * LO_DISCOUNT) AS revenue
FROM
	ssb.lineorder_flat
WHERE
	LO_ORDERDATE >= 19930101
	AND LO_ORDERDATE <= 19931231
	AND LO_DISCOUNT BETWEEN 1 AND 3
	AND LO_QUANTITY < 25;

--Q1.2    0.12
SELECT
	SUM(LO_EXTENDEDPRICE * LO_DISCOUNT) AS revenue
FROM
	ssb.lineorder_flat
WHERE
	LO_ORDERDATE >= 19940101
	AND LO_ORDERDATE <= 19940131
	AND LO_DISCOUNT BETWEEN 4 AND 6
	AND LO_QUANTITY BETWEEN 26 AND 35;

--Q1.3   0.78
SELECT
	SUM(LO_EXTENDEDPRICE * LO_DISCOUNT) AS revenue
FROM
	ssb.lineorder_flat
WHERE
	weekofyear(LO_ORDERDATE) = 6
	AND LO_ORDERDATE >= 19940101
	AND LO_ORDERDATE <= 19941231
	AND LO_DISCOUNT BETWEEN 5 AND 7
	AND LO_QUANTITY BETWEEN 26 AND 35;

--Q2.1   4.47
SELECT
	SUM(LO_REVENUE)
	,
	(LO_ORDERDATE DIV 10000) AS YEAR
	,
	P_BRAND
FROM
	ssb.lineorder_flat
WHERE
	P_CATEGORY = 'MFGR#12'
	AND S_REGION = 'AMERICA'
GROUP BY
	YEAR,
	P_BRAND
ORDER BY
	YEAR,
	P_BRAND;

--Q2.2    2.69
SELECT
	SUM(LO_REVENUE),
	(LO_ORDERDATE DIV 10000) AS YEAR,
	P_BRAND
FROM
	ssb.lineorder_flat
WHERE
	P_BRAND >= 'MFGR#2221'
	AND P_BRAND <= 'MFGR#2228'
	AND S_REGION = 'ASIA'
GROUP BY
	YEAR,
	P_BRAND
ORDER BY
	YEAR,
	P_BRAND;

--Q2.3   2.07
SELECT
	SUM(LO_REVENUE),
	(LO_ORDERDATE DIV 10000) AS YEAR,
	P_BRAND
FROM
	ssb.lineorder_flat
WHERE
	P_BRAND = 'MFGR#2239'
	AND S_REGION = 'EUROPE'
GROUP BY
	YEAR,
	P_BRAND
ORDER BY
	YEAR,
	P_BRAND;

--Q3.1   4.10
SELECT
	C_NATION,
	S_NATION,
	(LO_ORDERDATE DIV 10000) AS YEAR,
	SUM(LO_REVENUE) AS revenue
FROM
	ssb.lineorder_flat
WHERE
	C_REGION = 'ASIA'
	AND S_REGION = 'ASIA'
	AND LO_ORDERDATE >= 19920101
	AND LO_ORDERDATE <= 19971231
GROUP BY
	C_NATION,
	S_NATION,
	YEAR
ORDER BY
	YEAR ASC,
	revenue DESC;

--Q3.2   3.99
SELECT
	C_CITY,
	S_CITY,
	(LO_ORDERDATE DIV 10000) AS YEAR,
	SUM(LO_REVENUE) AS revenue
FROM
	ssb.lineorder_flat
WHERE
	C_NATION = 'UNITED STATES'
	AND S_NATION = 'UNITED STATES'
	AND LO_ORDERDATE >= 19920101
	AND LO_ORDERDATE <= 19971231
GROUP BY
	C_CITY,
	S_CITY,
	YEAR
ORDER BY
	YEAR ASC,
	revenue DESC;

--Q3.3   1.76
SELECT
	C_CITY,
	S_CITY,
	(LO_ORDERDATE DIV 10000) AS YEAR,
	SUM(LO_REVENUE) AS revenue
FROM
	ssb.lineorder_flat
WHERE
	C_CITY IN ('UNITED KI1', 'UNITED KI5')
	AND S_CITY IN ('UNITED KI1', 'UNITED KI5')
	AND LO_ORDERDATE >= 19920101
	AND LO_ORDERDATE <= 19971231
GROUP BY
	C_CITY,
	S_CITY,
	YEAR
ORDER BY
	YEAR ASC,
	revenue DESC;

--Q3.4   0.1
SELECT
	C_CITY,
	S_CITY,
	(LO_ORDERDATE DIV 10000) AS YEAR,
	SUM(LO_REVENUE) AS revenue
FROM
	ssb.lineorder_flat
WHERE
	C_CITY IN ('UNITED KI1', 'UNITED KI5')
	AND S_CITY IN ('UNITED KI1', 'UNITED KI5')
	AND LO_ORDERDATE >= 19971201
	AND LO_ORDERDATE <= 19971231
GROUP BY
	C_CITY,
	S_CITY,
	YEAR
ORDER BY
	YEAR ASC,
	revenue DESC;

--Q4.1   5.97
SELECT
	(LO_ORDERDATE DIV 10000) AS YEAR,
	C_NATION,
	SUM(LO_REVENUE - LO_SUPPLYCOST) AS profit
FROM
	ssb.lineorder_flat
WHERE
	C_REGION = 'AMERICA'
	aND S_REGION = 'AMERICA'
	AND P_MFGR IN ('MFGR#1', 'MFGR#2')
GROUP BY
	YEAR,
	C_NATION
ORDER BY
	YEAR ASC,
	C_NATION ASC;

--Q4.2   1.48
SELECT
	(LO_ORDERDATE DIV 10000) AS YEAR,
	S_NATION,
	P_CATEGORY,
	SUM(LO_REVENUE - LO_SUPPLYCOST) AS profit
FROM
	ssb.lineorder_flat
WHERE
	C_REGION = 'AMERICA'
	AND S_REGION = 'AMERICA'
	AND LO_ORDERDATE >= 19970101
	AND LO_ORDERDATE <= 19981231
	AND P_MFGR IN ('MFGR#1', 'MFGR#2')
GROUP BY
	YEAR,
	S_NATION,
	P_CATEGORY
ORDER BY
	YEAR ASC,
	S_NATION ASC,
	P_CATEGORY ASC;

--Q4.3   1.13
SELECT
	(LO_ORDERDATE DIV 10000) AS YEAR,
	S_CITY,
	P_BRAND,
	SUM(LO_REVENUE - LO_SUPPLYCOST) AS profit
FROM
	ssb.lineorder_flat
WHERE
	S_NATION = 'UNITED STATES'
	AND LO_ORDERDATE >= 19970101
	AND LO_ORDERDATE <= 19981231
	AND P_CATEGORY = 'MFGR#14'
GROUP BY
	YEAR,
	S_CITY,
	P_BRAND
ORDER BY
	YEAR ASC,
	S_CITY ASC,
	P_BRAND ASC;

--Q5.1   58.79
select
	count(1),
	sum(cnt)
from
	(
	select
		LO_ORDERPRIORITY,
		LO_SHIPMODE,
		P_COLOR,
		P_BRAND,
		count(1) as cnt,
		sum(LO_SUPPLYCOST)
	from
		ssb.lineorder_flat
	group by
		LO_ORDERPRIORITY,
		LO_SHIPMODE,
		P_COLOR,
		P_BRAND
	order by
		LO_ORDERPRIORITY,
		LO_SHIPMODE,
		P_COLOR,
		P_BRAND
) t ;
--3218808  240012290

--Q5.2  5.43
select
	count(1),
	sum(cnt)
from
	(
	select
		LO_ORDERPRIORITY,
		LO_SHIPMODE,
		P_COLOR,
		P_BRAND,
		count(1) as cnt,
		sum(LO_SUPPLYCOST)
	from
		ssb.lineorder_flat
	where
		S_NATION = 'UNITED STATES'
		AND P_CATEGORY = 'MFGR#14'
	group by
		LO_ORDERPRIORITY,
		LO_SHIPMODE,
		P_COLOR,
		P_BRAND
	order by
		LO_ORDERPRIORITY,
		LO_SHIPMODE,
		P_COLOR,
		P_BRAND
) t ;
--117571

--Q6.1   58.79
select
	count(1),
	sum(cnt)
from
	(
	select
		LO_ORDERPRIORITY,
		LO_SHIPMODE,
		P_COLOR,
		P_BRAND,
		count(1) as cnt,
		sum(LO_SUPPLYCOST) as sm,
		count(distinct S_NAME) as dcnt
	from
		ssb.lineorder_flat
	group by
		LO_ORDERPRIORITY,
		LO_SHIPMODE,
		P_COLOR,
		P_BRAND
	order by
		LO_ORDERPRIORITY,
		LO_SHIPMODE,
		P_COLOR,
		P_BRAND
) t ;
--报错，内存不足

--Q6.2  10.81
select
	count(1),
	sum(cnt)
from
	(
	select
		LO_ORDERPRIORITY,
		LO_SHIPMODE,
		P_COLOR,
		P_BRAND,
		count(1) as cnt,
		sum(LO_SUPPLYCOST) as sm,
		count(distinct S_NAME) as dcnt
	from
		ssb.lineorder_flat
	where
		S_NATION = 'UNITED STATES'
		AND P_CATEGORY = 'MFGR#14'
	group by
		LO_ORDERPRIORITY,
		LO_SHIPMODE,
		P_COLOR,
		P_BRAND
	order by
		LO_ORDERPRIORITY,
		LO_SHIPMODE,
		P_COLOR,
		P_BRAND
) t ;
--117571 386092
