【数据库系统概论】实验七嵌入式SQL查询

一、实验目的（1）了解嵌入式SQL的使用方法。（2）设计用户界面，能对数据表进行查询。二、实验内容设计一个应用程序，实现对教学管理数据库中所选定的表按指定条件进行查询。用户界面如图1所示。图1用户界面完成以下功能：（1）在学号、姓名、性别、年龄等输入框中输入一个或多个值，点击搜索按钮，能够查询相应记录。如果不输入任何数据，则查询学生表中所有记录。三、实验指导（一）Visual C# 嵌入式SQL语

明金同学

5746人浏览 · 2023-03-17 09:30:00

明金同学 · 2023-03-17 09:30:00 发布

一、实验目的

（1）了解嵌入式SQL的使用方法。
（2）设计用户界面，能对数据表进行查询。

二、实验内容

设计一个应用程序，实现对教学管理数据库中所选定的表按指定条件进行查询。用户界面如图1所示。

图1 用户界面
完成以下功能：
（1）在学号、姓名、性别、年龄等输入框中输入一个或多个值，点击搜索按钮，能够查询相应记录。如果不输入任何数据，则查询学生表中所有记录。

三、实验指导

（一）Visual C# 嵌入式SQL语句

新建一个网站；
在web.config中增加配置项：

<connectionStrings>
	<add name="conn" connectionString="Data Source=127.0.0.1;Initial Catalog=stu_db;Integrated Security=SSPI;" providerName="System.Data.SqlClient"/>
	<add name="conn" connectionString="Data Source=localhost;Initial Catalog=stu_db;User ID=sa;Password=123456789" providerName="System.Data.SqlClient"/>
</connectionStrings>

3．绘制程序界面，如图1所示，使用表格进行布局。代码如下：

<html>
 <head></head>
 <body>
  <table style="width: 800;" border="1" cellpadding="0" cellspacing="0" frame="border">
   <tbody>
    <tr>
     <td class="style1">
      <asp:label id="Label1" runat="server" text="学号："></asp:label>
      <asp:textbox id="TextBox1" runat="server"></asp:textbox> </td>
     <td class="style2">
      <asp:label id="Label2" runat="server" text="姓名：" width="50"></asp:label>
      <asp:textbox id="TextBox2" runat="server"></asp:textbox> </td>
     <td> &nbsp;
      <asp:label id="Label3" runat="server" text="性别："></asp:label> &nbsp;
      <asp:dropdownlist id="DropDownList1" runat="server">
       <asp:listitem>
       </asp:listitem>
       <asp:listitem value="1">
        男
       </asp:listitem>
       <asp:listitem value="2">
        女
       </asp:listitem>
      </asp:dropdownlist> </td>
    </tr>
    <tr>
     <td class="style1">
      <asp:label id="Label4" runat="server" text="年龄："></asp:label>
      <asp:textbox id="TextBox3" runat="server"></asp:textbox> </td>
     <td>
      <asp:label id="Label5" runat="server" text="岁到：" width="50px"></asp:label>
      <asp:textbox id="TextBox4" runat="server"></asp:textbox> </td>
     <td> &nbsp;
      <asp:button id="Button1" runat="server" onclick="Button1_Click" text="搜索" width="92px" /> </td>
    </tr>
    <tr>
     <td colspan="3"> &nbsp;
      <asp:gridview id="GridView1" runat="server" backcolor="White" bordercolor="#E7E7FF" borderstyle="None" borderwidth="1px" cellpadding="3" gridlines="Horizontal" width="100%">
       <alternatingrowstyle backcolor="#F7F7F7" />
       <footerstyle backcolor="#B5C7DE" forecolor="#4A3C8C" />
       <headerstyle backcolor="#4A3C8C" font-bold="True" forecolor="#F7F7F7" />
       <pagerstyle backcolor="#E7E7FF" forecolor="#4A3C8C" horizontalalign="Right" />
       <rowstyle backcolor="#E7E7FF" forecolor="#4A3C8C" />
       <selectedrowstyle backcolor="#738A9C" font-bold="True" forecolor="#F7F7F7" />
       <sortedascendingcellstyle backcolor="#F4F4FD" />
       <sortedascendingheaderstyle backcolor="#5A4C9D" />
       <sorteddescendingcellstyle backcolor="#D8D8F0" />
       <sorteddescendingheaderstyle backcolor="#3E3277" />
      </asp:gridview> </td>
    </tr>
   </tbody>
  </table>
 </body>
</html>

在命令按钮的click事件中执行以下代码：

using System.Data.SqlClient;
using System.Data;
using System.Configuration;

string strconn = ConfigurationManager.ConnectionStrings["conn"].ConnectionString;
        SqlConnection con = new SqlConnection(strconn);
        con.Open();

        string condition = "";
        string sql;
        if (TextBox2.Text != "")
            condition = condition + " sname like'" + TextBox2.Text + "%'";
        if (DropDownList1.SelectedItem.ToString() != "")
            condition = condition + " and sex='" + DropDownList1.SelectedItem + "'";
        if (condition != "")
            sql = "select * from T.student where" + condition;
        else
            sql = "select * from T.student ";
        //Response.Write(sql);
        SqlDataAdapter da = new SqlDataAdapter(sql, con);
        DataSet ds = new DataSet();
        da.Fill(ds);
        GridView1.DataSource = ds;
        GridView1.DataBind();
        con.Close();

四、实验结果

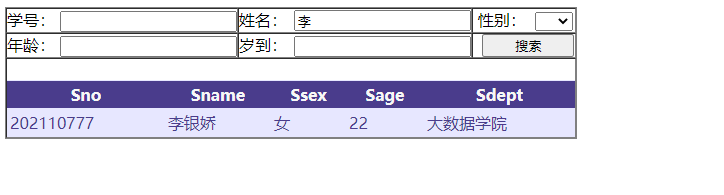

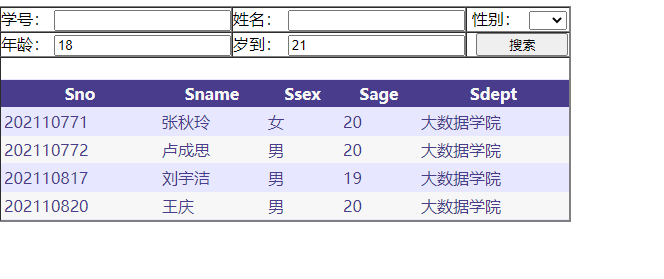

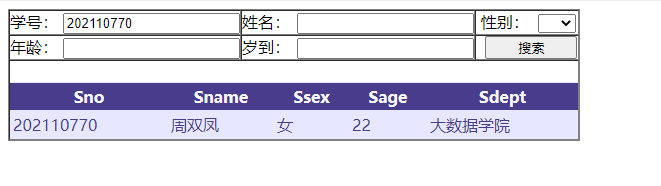

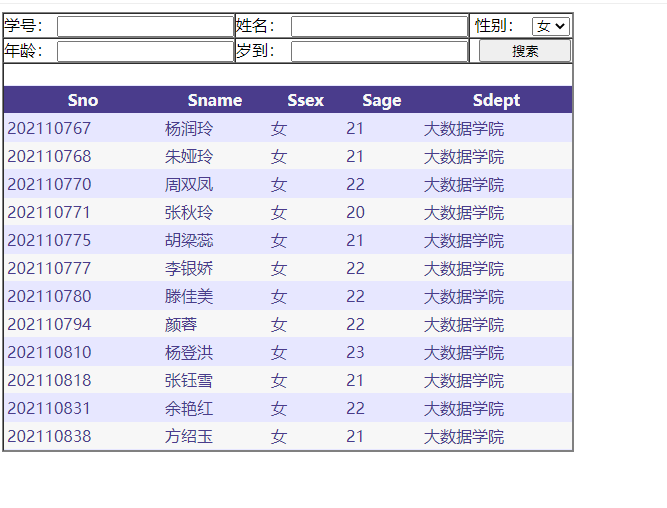

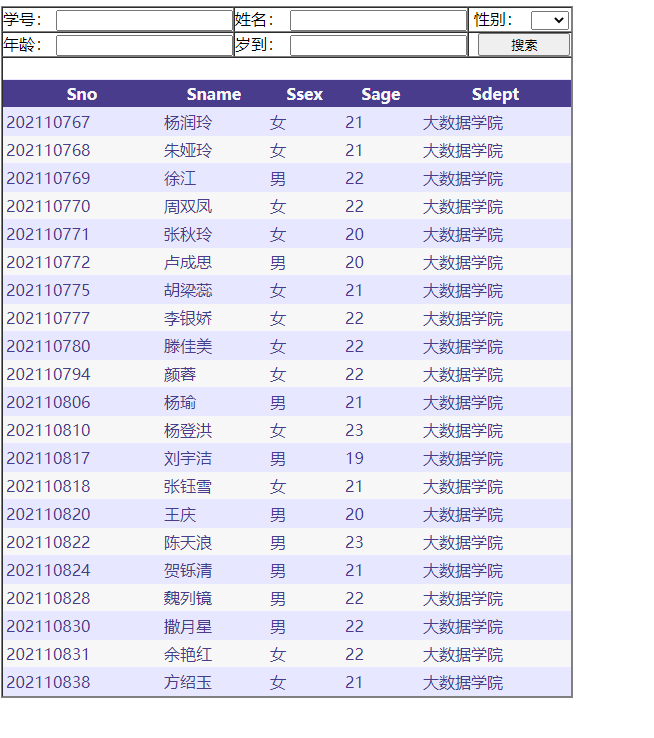

1、主要界面
QQ截图20221129000734 QQ截图20221129000712 QQ截图20221129000756

2．主要事件及代码

<html xmlns="http://www.w3.org/1999/xhtml">
 <head></head>
 <body>
  &lt;%@ Page Language=&quot;C#&quot; AutoEventWireup=&quot;true&quot; CodeBehind=&quot;Default2.aspx.cs&quot; Inherits=&quot;ceShi.Default2&quot; %&gt;
  <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
  <title></title>
  <form id="form1" runat="server">
   <div>
    <table style="width: 800;" border="1" cellpadding="0" cellspacing="0" frame="border">
     <tbody>
      <tr>
       <td class="style1">
        <asp:label id="Label1" runat="server" text="学号："></asp:label>
        <asp:textbox id="TextBox1" runat="server"></asp:textbox> </td>
       <td class="style2">
        <asp:label id="Label2" runat="server" text="姓名：" width="50"></asp:label>
        <asp:textbox id="TextBox2" runat="server"></asp:textbox> </td>
       <td> &nbsp;
        <asp:label id="Label3" runat="server" text="性别："></asp:label> &nbsp;
        <asp:dropdownlist id="DropDownList1" runat="server">
         <asp:listitem>
         </asp:listitem>
         <asp:listitem value="1">
          男
         </asp:listitem>
         <asp:listitem value="2">
          女
         </asp:listitem>
        </asp:dropdownlist> </td>
      </tr>
      <tr>
       <td class="style1">
        <asp:label id="Label4" runat="server" text="年龄："></asp:label>
        <asp:textbox id="TextBox3" runat="server"></asp:textbox> </td>
       <td>
        <asp:label id="Label5" runat="server" text="岁到：" width="50px"></asp:label>
        <asp:textbox id="TextBox4" runat="server"></asp:textbox> </td>
       <td> &nbsp;
        <asp:button id="Button1" runat="server" onclick="Button1_Click" text="搜索" width="92px" /> </td>
      </tr>
      <tr>
       <td colspan="3"> &nbsp;
        <asp:gridview id="GridView1" runat="server" backcolor="White" bordercolor="#E7E7FF" borderstyle="None" borderwidth="1px" cellpadding="3" gridlines="Horizontal" width="100%">
         <alternatingrowstyle backcolor="#F7F7F7" />
         <footerstyle backcolor="#B5C7DE" forecolor="#4A3C8C" />
         <headerstyle backcolor="#4A3C8C" font-bold="True" forecolor="#F7F7F7" />
         <pagerstyle backcolor="#E7E7FF" forecolor="#4A3C8C" horizontalalign="Right" />
         <rowstyle backcolor="#E7E7FF" forecolor="#4A3C8C" />
         <selectedrowstyle backcolor="#738A9C" font-bold="True" forecolor="#F7F7F7" />
         <sortedascendingcellstyle backcolor="#F4F4FD" />
         <sortedascendingheaderstyle backcolor="#5A4C9D" />
         <sorteddescendingcellstyle backcolor="#D8D8F0" />
         <sorteddescendingheaderstyle backcolor="#3E3277" />
        </asp:gridview> </td>
      </tr>
     </tbody>
    </table>
   </div>
  </form>
 </body>
</html>

3、点击事件实现

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data.SqlClient;
using System.Data;
using System.Configuration;

namespace ceShi
{
    public partial class Default2 : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {

        }

        protected void Button1_Click(object sender, EventArgs e)
        {
            string strconn = ConfigurationManager.ConnectionStrings["conn"].ConnectionString;
            SqlConnection con = new SqlConnection(strconn);
            con.Open();
            string sql = "select * from T.Student where 1=1";
            if (TextBox1.Text != "")
                sql = sql + " and sno = '" + TextBox1.Text + "'";
            if (TextBox2.Text != "")
                sql = sql + " and sname like'" + TextBox2.Text + "%'";
            if (DropDownList1.SelectedItem.ToString() != "")
                sql = sql + " and ssex = '" + DropDownList1.SelectedItem + "'";
            if (TextBox3.Text != "")
                sql = sql + " and sage > " + TextBox3.Text;
            if (TextBox4.Text != "")
                sql = sql + " and sage < " + TextBox4.Text;
            SqlDataAdapter da = new SqlDataAdapter(sql, con);
            DataSet ds = new DataSet();
            da.Fill(ds);
            GridView1.DataSource = ds;
            GridView1.DataBind();
            con.Close();
        }
    }
}
