引言

使用MFC联合Halcon，将HDevelop中的演示结果用MFC中对话框的形式显示

一、结果

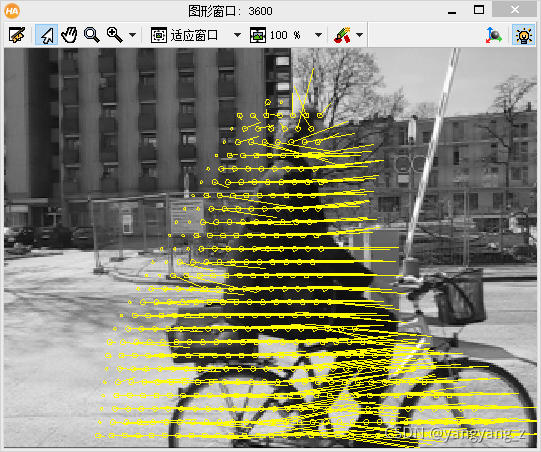

1.1 Halcon演示结果

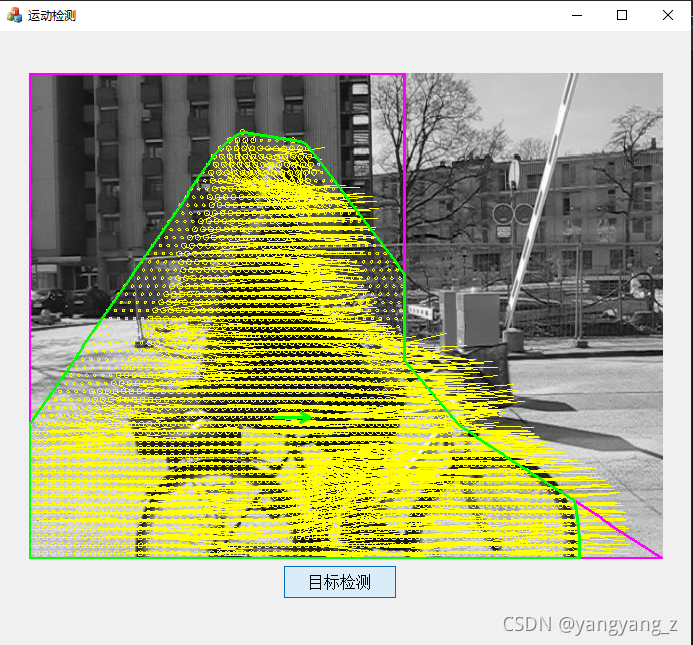

1.2 MFC演示结果

二、Halcon代码

* This example demonstrates the use of the optical flow for
* the detection of moving objects in an image sequence.
* The region of interest is analyzed to detect moving objects.
* If a moving object is detected, the exit gate is opened automatically.
*
* Initialize output window
dev_update_off ()
read_image (Image1, 'bicycle/bicycle_01')
ZoomFactor := 0.5
zoom_image_factor (Image1, Image1, ZoomFactor, ZoomFactor, 'constant')
dev_close_window ()
dev_open_window_fit_image (Image1, 0, 0, -1, -1, WindowHandle)
dev_set_draw ('margin')
*
* Generate ROI
gen_contour_polygon_xld (ROI, [0,0,283,348,479,479] * ZoomFactor, [0,379,379,434,639,0] * ZoomFactor)
gen_region_contour_xld (ROI, RegionROI, 'filled')
reduce_domain (Image1, RegionROI, Image1ROI)
*
* Main loop: Calculate optical flow and display moving area
*
for I := 2 to 27 by 1
    read_image (Image2, 'bicycle/bicycle_' + I$'.2')
    *
    * Zoom images to speed-up calculation of optical flow
    zoom_image_factor (Image2, Image2, ZoomFactor, ZoomFactor, 'constant')
    reduce_domain (Image2, RegionROI, Image2ROI)
    *
    optical_flow_mg (Image1ROI, Image2ROI, VectorField, 'fdrig', 0.8, 1, 10, 5, ['default_parameters','warp_zoom_factor'], ['fast',0.8])
    vector_field_length (VectorField, LengthImage, 'squared_length')
    *
    * Segment regions with moving objects in the defined ROI
    min_max_gray (RegionROI, LengthImage, 0.1, Min, Max, Range)
    dev_display (Image2)
    if (Max > 2)
        threshold (LengthImage, RegionMovement, 2, Max)
        connection (RegionMovement, ConnectedRegions)
        * Select largest moving region
        select_shape_std (ConnectedRegions, RegionMovement, 'max_area', 70)
        area_center (RegionMovement, Area, RCenterNew, CCenterNew)
        if (Area > 0)
            shape_trans (RegionMovement, ConvexHullregion, 'convex')
            intersection (RegionROI, ConvexHullregion, RegionMovementInROI)
            reduce_domain (VectorField, ConvexHullregion, VectorReduced)
            vector_field_to_real (VectorReduced, Row, Column)
            *
            * Estimate the movement direction and the speed
            intensity (RegionMovementInROI, Row, MeanRow, Deviation)
            intensity (RegionMovementInROI, Column, MeanColumn, Deviation1)
            *
            * Display results
            dev_set_line_width (1)
            dev_set_color ('yellow')
            dev_display (VectorReduced)
            * Display region of interest
            dev_set_line_width (3)
            dev_set_color ('magenta')
            dev_display (RegionROI)
            * Display region of moving object in the region of interest
            dev_set_color ('green')
            dev_display (RegionMovementInROI)
            gen_arrow_contour_xld (Arrow, RCenterNew, CCenterNew, RCenterNew + MeanRow, CCenterNew + MeanColumn, 10, 10)
            dev_display (Arrow)
        endif
    endif
    *
    copy_obj (Image2ROI, Image1ROI, 1, 1)
endfor

三、MFC源代码

1.头文件主要代码

public:
	MyAssist myassist;
	HTuple picture1_WindowID,picture2_WindowID;
	CWnd *pWnd;

	// Local iconic variables
	HObject  ho_Image1, ho_ROI, ho_RegionROI, ho_Image1ROI;
	HObject  ho_Image2, ho_Image2ROI, ho_VectorField, ho_LengthImage;
	HObject  ho_RegionMovement, ho_ConnectedRegions, ho_ConvexHullregion;
	HObject  ho_RegionMovementInROI, ho_VectorReduced, ho_Row;
	HObject  ho_Column, ho_Arrow;

	// Local control variables
	HTuple  hv_ZoomFactor, hv_WindowHandle, hv_I;
	HTuple  hv_Min, hv_Max, hv_Range, hv_Area, hv_RCenterNew;
	HTuple  hv_CCenterNew, hv_MeanRow, hv_Deviation, hv_MeanColumn;
	HTuple  hv_Deviation1;
public:

	afx_msg void OnBnClickedButtonReadImg();

2.源文件主要代码

void CHalconMFCDlg::OnBnClickedButtonReadImg()
{
	// TODO: 在此添加控件通知处理程序代码
	CRect rect;
	pWnd = GetDlgItem(IDC_STATIC_ORIGINAL_IMG);
	picture1_WindowID = (Hlong)pWnd->m_hWnd;
	pWnd->GetWindowRect(&rect);
  //This example demonstrates the use of the optical flow for
  //the detection of moving objects in an image sequence.
  //The region of interest is analyzed to detect moving objects.
  //If a moving object is detected, the exit gate is opened automatically.
  //
  //Initialize output window
	myassist.dev_update_off();
	ReadImage(&ho_Image1, "bicycle/bicycle_01");
	hv_ZoomFactor =1;
	ZoomImageFactor(ho_Image1, &ho_Image1, hv_ZoomFactor, hv_ZoomFactor, "constant");
	OpenWindow(0, 0, rect.Width(), rect.Height(), picture1_WindowID, "visible", "", &hv_WindowHandle);
	HDevWindowStack::Push(hv_WindowHandle);
	//myassist.dev_open_window_fit_image(ho_Image1, 0, 0, -1, -1, &hv_WindowHandle);
	if (HDevWindowStack::IsOpen())
		SetDraw(HDevWindowStack::GetActive(), "margin");
	//
	//Generate ROI
	GenContourPolygonXld(&ho_ROI, (((((HTuple(0).Append(0)).Append(283)).Append(348)).Append(479)).Append(479))*hv_ZoomFactor,
		(((((HTuple(0).Append(379)).Append(379)).Append(434)).Append(639)).Append(0))*hv_ZoomFactor);
	GenRegionContourXld(ho_ROI, &ho_RegionROI, "filled");
	ReduceDomain(ho_Image1, ho_RegionROI, &ho_Image1ROI);
	//
	//Main loop: Calculate optical flow and display moving area
	//
	for (hv_I = 2; hv_I <= 27; hv_I += 1)
	{
		ReadImage(&ho_Image2, "bicycle/bicycle_" + (hv_I.TupleString(".2")));
		//
		//Zoom images to speed-up calculation of optical flow
		ZoomImageFactor(ho_Image2, &ho_Image2, hv_ZoomFactor, hv_ZoomFactor, "constant");
		ReduceDomain(ho_Image2, ho_RegionROI, &ho_Image2ROI);
		//
		OpticalFlowMg(ho_Image1ROI, ho_Image2ROI, &ho_VectorField, "fdrig", 0.8, 1, 10,
			5, (HTuple("default_parameters").Append("warp_zoom_factor")), (HTuple("fast").Append(0.8)));
		VectorFieldLength(ho_VectorField, &ho_LengthImage, "squared_length");
		//
		//Segment regions with moving objects in the defined ROI
		MinMaxGray(ho_RegionROI, ho_LengthImage, 0.1, &hv_Min, &hv_Max, &hv_Range);
		if (HDevWindowStack::IsOpen())
			DispObj(ho_Image2, HDevWindowStack::GetActive());
		if (0 != (hv_Max > 2))
		{
			Threshold(ho_LengthImage, &ho_RegionMovement, 2, hv_Max);
			Connection(ho_RegionMovement, &ho_ConnectedRegions);
			//Select largest moving region
			SelectShapeStd(ho_ConnectedRegions, &ho_RegionMovement, "max_area", 70);
			AreaCenter(ho_RegionMovement, &hv_Area, &hv_RCenterNew, &hv_CCenterNew);
			if (0 != (hv_Area > 0))
			{
				ShapeTrans(ho_RegionMovement, &ho_ConvexHullregion, "convex");
				Intersection(ho_RegionROI, ho_ConvexHullregion, &ho_RegionMovementInROI);
				ReduceDomain(ho_VectorField, ho_ConvexHullregion, &ho_VectorReduced);
				VectorFieldToReal(ho_VectorReduced, &ho_Row, &ho_Column);
				//
				//Estimate the movement direction and the speed
				Intensity(ho_RegionMovementInROI, ho_Row, &hv_MeanRow, &hv_Deviation);
				Intensity(ho_RegionMovementInROI, ho_Column, &hv_MeanColumn, &hv_Deviation1);
				//
				//Display results
				if (HDevWindowStack::IsOpen())
					SetLineWidth(HDevWindowStack::GetActive(), 1);
				if (HDevWindowStack::IsOpen())
					SetColor(HDevWindowStack::GetActive(), "yellow");
				if (HDevWindowStack::IsOpen())
					DispObj(ho_VectorReduced, HDevWindowStack::GetActive());
				//Display region of interest
				if (HDevWindowStack::IsOpen())
					SetLineWidth(HDevWindowStack::GetActive(), 3);
				if (HDevWindowStack::IsOpen())
					SetColor(HDevWindowStack::GetActive(), "magenta");
				if (HDevWindowStack::IsOpen())
					DispObj(ho_RegionROI, HDevWindowStack::GetActive());
				//Display region of moving object in the region of interest
				if (HDevWindowStack::IsOpen())
					SetColor(HDevWindowStack::GetActive(), "green");
				if (HDevWindowStack::IsOpen())
					DispObj(ho_RegionMovementInROI, HDevWindowStack::GetActive());
				myassist.gen_arrow_contour_xld(&ho_Arrow, hv_RCenterNew, hv_CCenterNew, hv_RCenterNew + hv_MeanRow,
					hv_CCenterNew + hv_MeanColumn, 10, 10);
				if (HDevWindowStack::IsOpen())
					DispObj(ho_Arrow, HDevWindowStack::GetActive());
			}
		}
		//
		CopyObj(ho_Image2ROI, &ho_Image1ROI, 1, 1);
	}
}
