利用python简单分析抓包数据

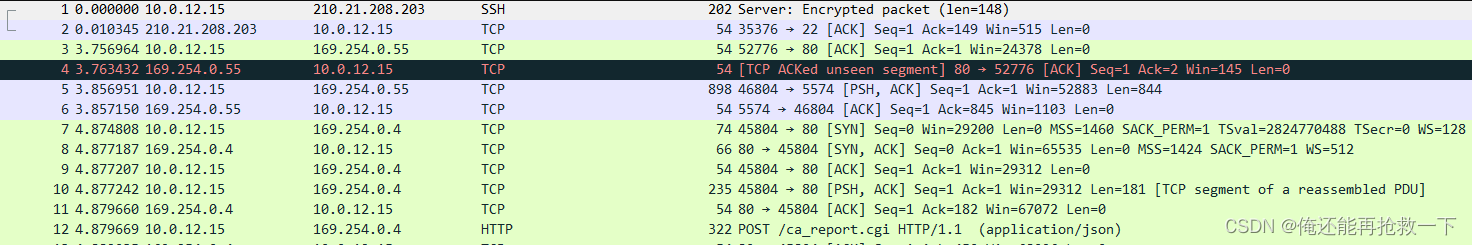

wireshark的数据

先读一行看看长啥样

import json
data_file = r'E:\download\data.json'
with open(data_file,'r',encoding='utf8') as f:
    data_list = json.loads(f.read())
    print(data_list[0])

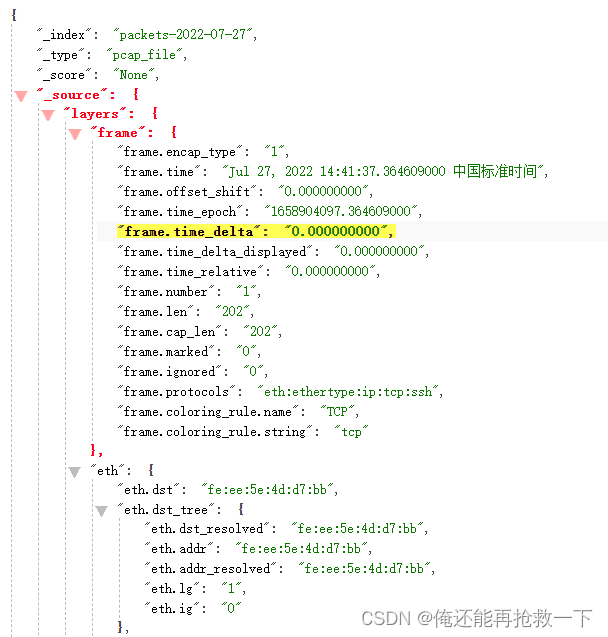

用格式化工具看

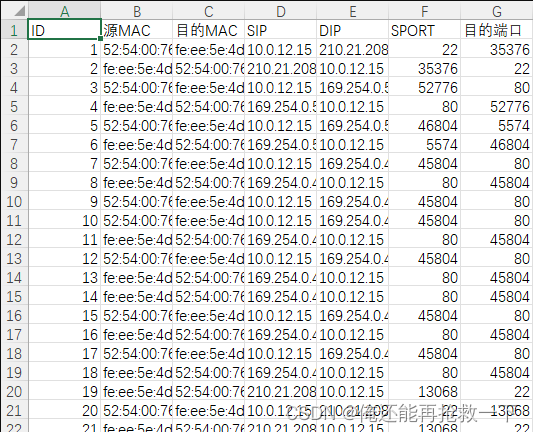

完整代码&最终结果

import json

data_file = r'E:\download\data.json'
output_file = r'E:\download\netflow.csv'
with open(data_file,'r',encoding='utf8') as f:
    data_list = json.loads(f.read())

with open(output_file,'w') as f:
    title = 'ID,源MAC,目的MAC,SIP,DIP,SPORT,目的端口\n'
    f.write(title)
    id= 0
    for data_item in data_list:
        base_idx = data_item.get("_source").get("layers")
        srcmac = base_idx.get("eth").get("eth.src")
        dstmac =base_idx.get("eth").get("eth.dst")
        srcip = base_idx.get("ip").get("ip.src")
        dstip = base_idx.get("ip").get("ip.dst")
        srcport = base_idx.get("tcp").get("tcp.srcport")
        dstport = base_idx.get("tcp").get("tcp.dstport")
        id+=1
        try:
            f.write( '%s,%s,%s,%s,%s,%s,%s\n' % (line, srcmac,dstmac,srcip,dstip,srcport,dstport))
        except Exception as e:
            print(e)
            continue
