功能磁共振影像数据统计分析的目标主要包括:

  • localizing brain areas activated by the task(找到被任务激活的脑区)
  • determining networks corresponding to brain function
  • making predictions about psychological or disease states

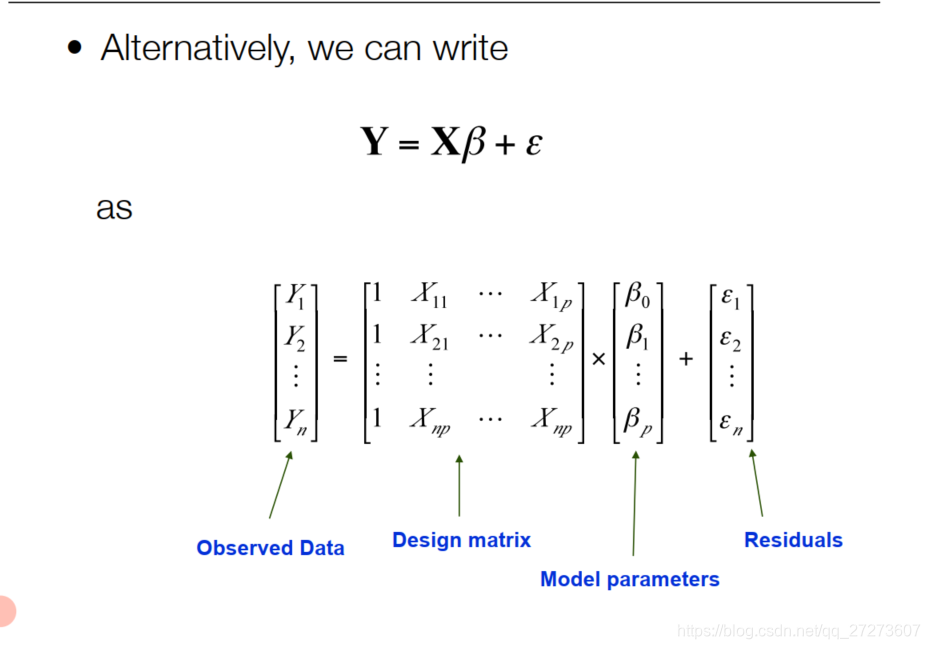

The general linear model (GLM) approach treats the data as a linear combination of model functions (predictors) plus noise (error)
在这里插入图片描述
在一般线性模型运用于fmri数据分析时,通过对roi区域的每个体素(each voxel)的时间序列作为outcome(Y).

  • Stimulus, task, and/or behavioral variables are the predictors (X)

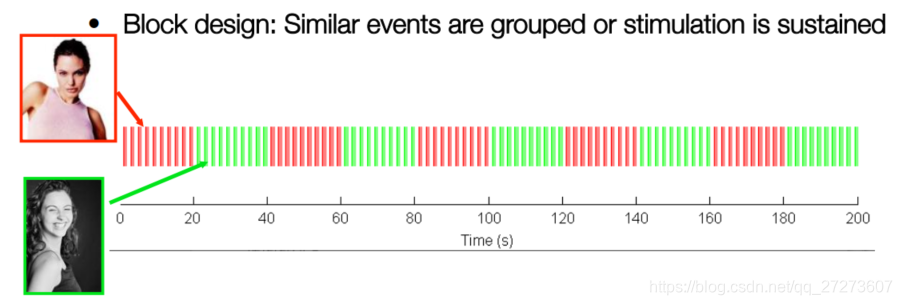

    以一个简单的观察图片的fmri实验为例(alternating blocks of viewing famous and non-famous faces),实验设计采用BLOCK design,
    即Similar events are grouped or stimulation is sustained

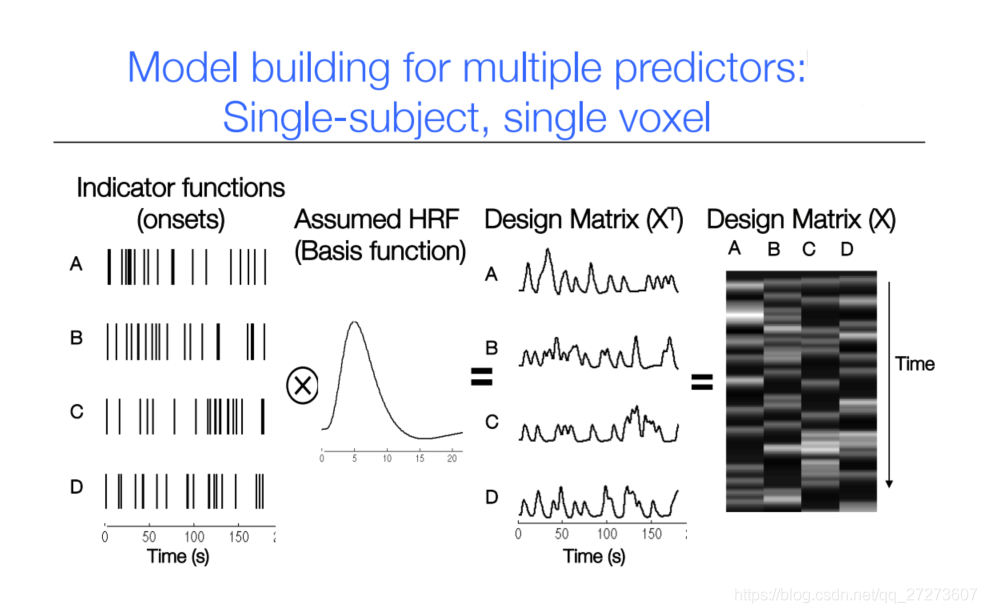

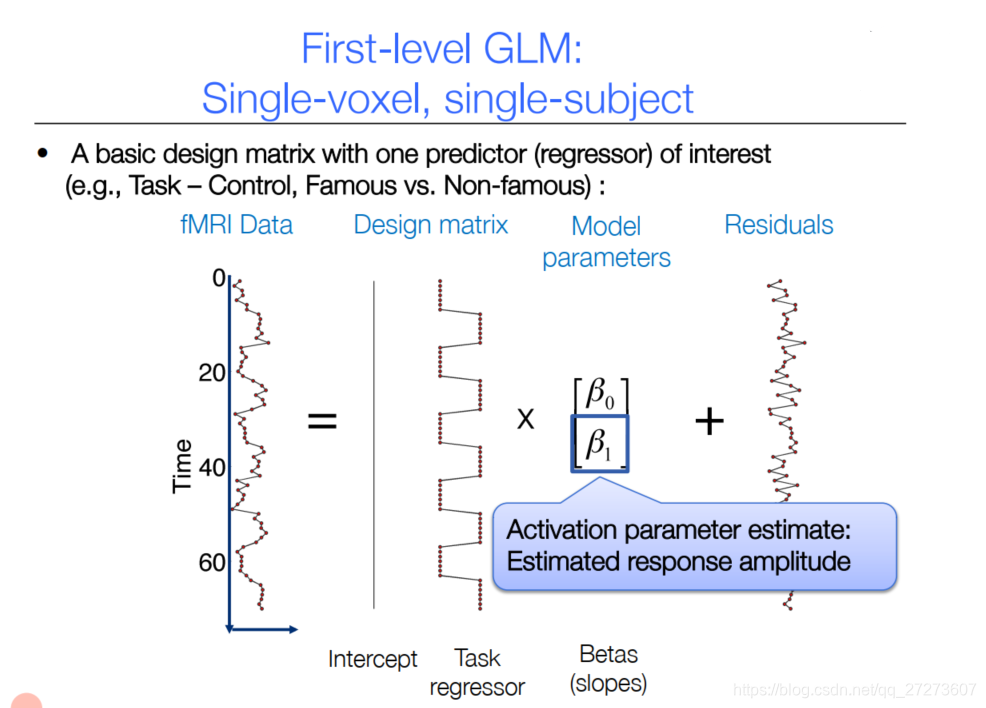

    在这里插入图片描述
    在这里插入图片描述
    在这里插入图片描述

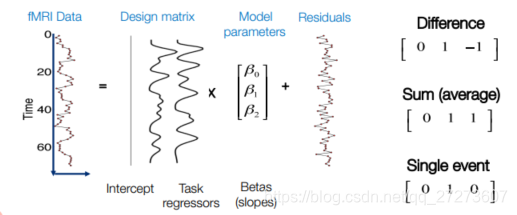

Contrasts:一个灵活而强大的工具,它是GLM的beta参数的线性组合。
当权重矩阵C取不同的值时,反映出不同beta值组合代表的含义。
在这里插入图片描述
