1、需要准备三个软件包，百度网盘提取

链接：https://pan.baidu.com/s/1H-8j9NjCP7R_oA_av2RHXQ?pwd=9527
提取码：9527

2、使用需要的服务器环境准备

服务器名	IP
Prometheus服务器	192.168.202.128
grafana服务器	192.168.202.128
被监控服务器	192.168.202.129
软件包	在线下载地址
prometheus-2.42.0.linux-amd64.tar.gz	https://prometheus.io/download/
grafana-enterprise-9.3.6-1.x86_64.rpm	Download Grafana | Grafana Labs
node_exporter-1.5.0.linux-amd64.tar.gz	https://prometheus.io/download/

3、需要开启相应端口

开启端口
firewall-cmd --zone=public --add-port=9100/tcp --permanent

重启防火墙，使得规则生效
firewall-cmd --reload

# 关闭selinux
sed -i 's/enforcing/disabled/' /etc/selinux/config
# 临时生效
setenforce 0

4、部署prometheus

#解压安装包
tar -xvf prometheus-2.42.0.linux-amd64.tar.gz -C  /usr/local/
cd /usr/local/
mv prometheus-2.42.0.linux-amd64/  prometheus

# 进入prometheus目录下
cd /usr/local/prometheus/

# 启动脚本
echo ' ./prometheus --config.file=./prometheus.yml &' > start.sh && chmod +x start.sh
# 停止脚本
echo ' pkill prometheus' > stop.sh && chmod +x stop.sh
[root@localhost prometheus]#./start.sh
#  确认是否启动（默认端口9090）
[root@localhost prometheus]# netstat -ntlp | grep 9090
tcp6       0      0 :::9090                 :::*                    LISTEN    19449/./prometheus
[root@localhost prometheus]#

使用浏览器访问http://192.168.202.128:9090/，就能访问到Prometheus

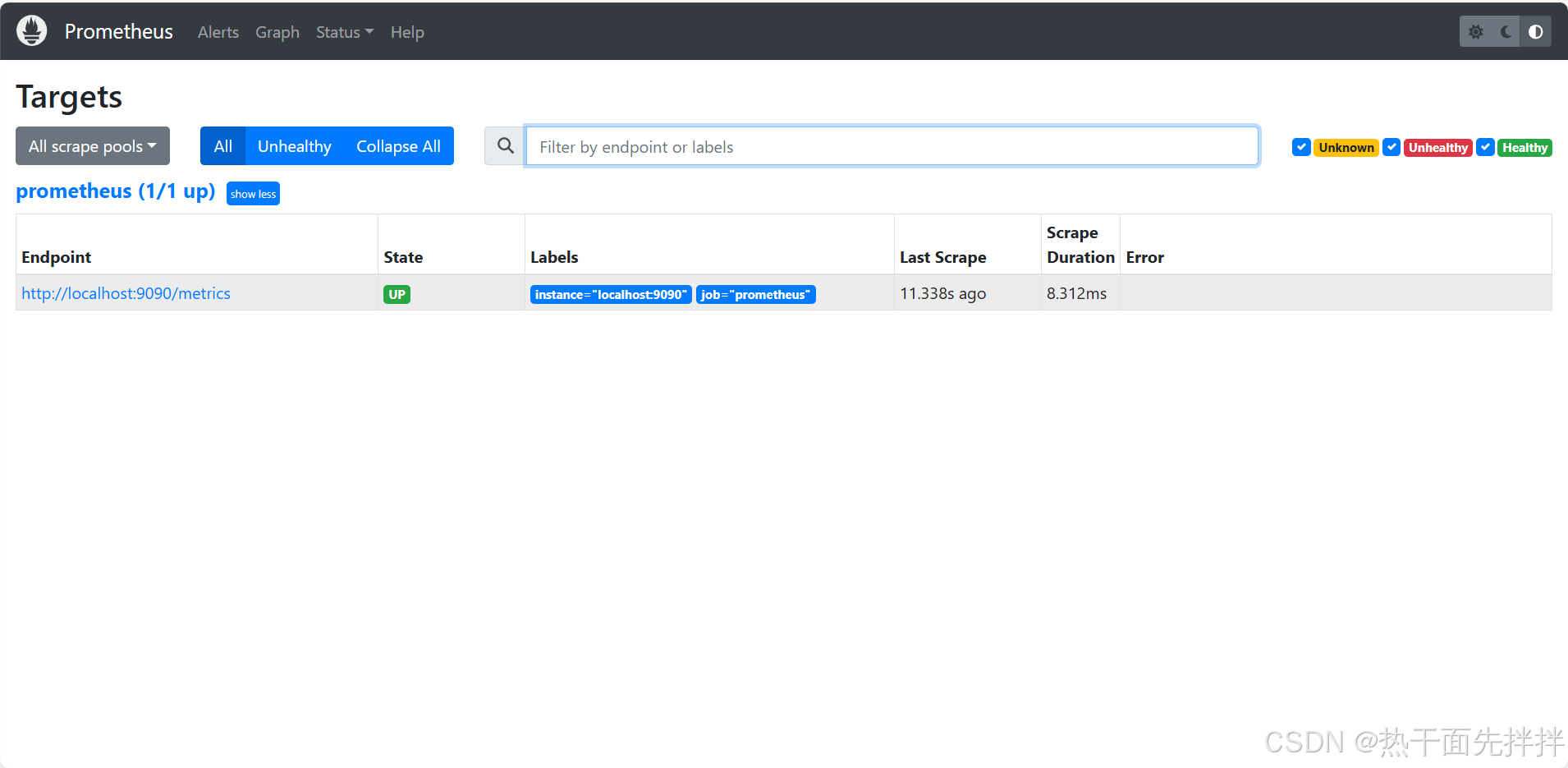

 点击status再点击Targets就能看到本机了

 5、部署可视化工具

下载rpm包

[root@localhost ~]# rpm -ivh  grafana-enterprise-9.3.6-1.x86_64.rpm
[root@localhost ~]# systemctl start grafana-server.service
[root@localhost ~]# systemctl enable grafana-server.service
[root@localhost ~]# netstat  -ntlp |grep grafana
tcp6       0      0 :::3000                 :::*                    LISTEN      19754/grafana-serve
[root@localhost ~]#

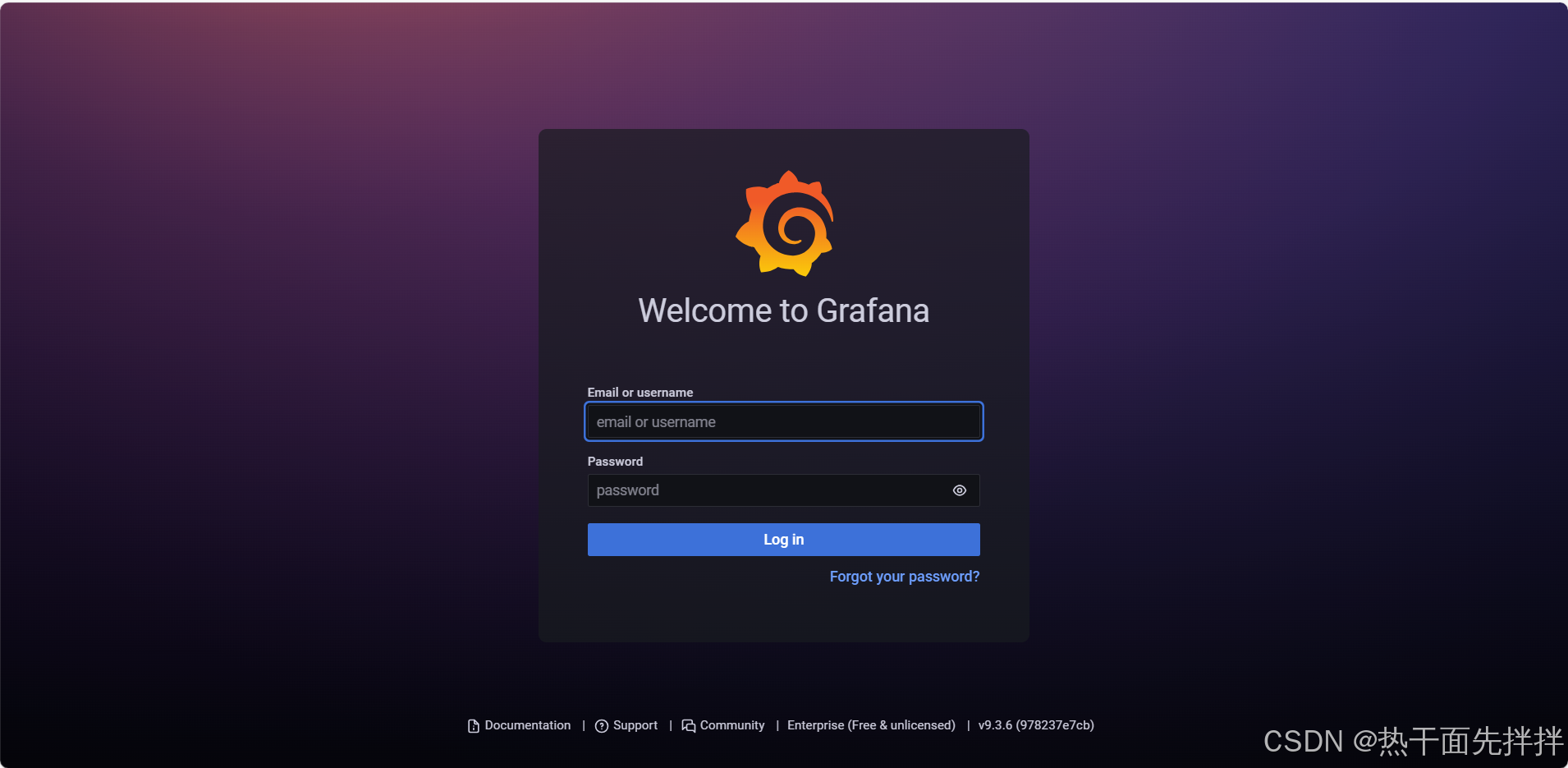

 使用浏览器访问http://192.168.202.128:3000/  访问到grafana的主页面

首次访问的账号密码为admin

到这里，我们就能看到grafana的主页面了

6、被监控的远程服务器

被远程监控服务器：192.168.202.129



tar -xvf node_exporter-1.5.0.linux-amd64.tar.gz -C /usr/local/
cd /usr/local/
mv node_exporter-1.5.0.linux-amd64/  node_exporter
cd node_exporter
# 启动脚本
echo ' ./node_exporter &' > start.sh && chmod +x start.sh
# 停止脚本
echo ' pkill node_exporter ' > stop.sh && chmod +x stop.sh

[root@localhost node_exporter]#./start.sh
[root@localhost node_exporter]#netstat  -ntlp |grep 9100
tcp6       0      0 :::9100                 :::*                    LISTEN      12270/./node_export
[root@localhost node_exporter]#

 使用浏览器访问http://192.168.202.129:9100/metrics即可查看被监控服务器收集到监控信息

7、配置prometheus.yml

在192.168.202.128服务器的配置文件里添加被监控机器

[root@localhost ~]# cd /usr/local/prometheus/
[root@localhost ~]#vi  prometheus.yml
# my global config
global:
  scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  # scrape_timeout is set to the global default (10s).

# Alertmanager configuration
alerting:
  alertmanagers:
    - static_configs:
        - targets:
          # - alertmanager:9093

# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"

# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: "prometheus"

    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.

    static_configs:
      - targets: #["192.168.202.128:9090",'192.168.202.128:9100','192.168.202.129:9100']
         - "192.168.202.128:9090"
         - '192.168.202.128:9100'
         - '192.168.202.129:9100'

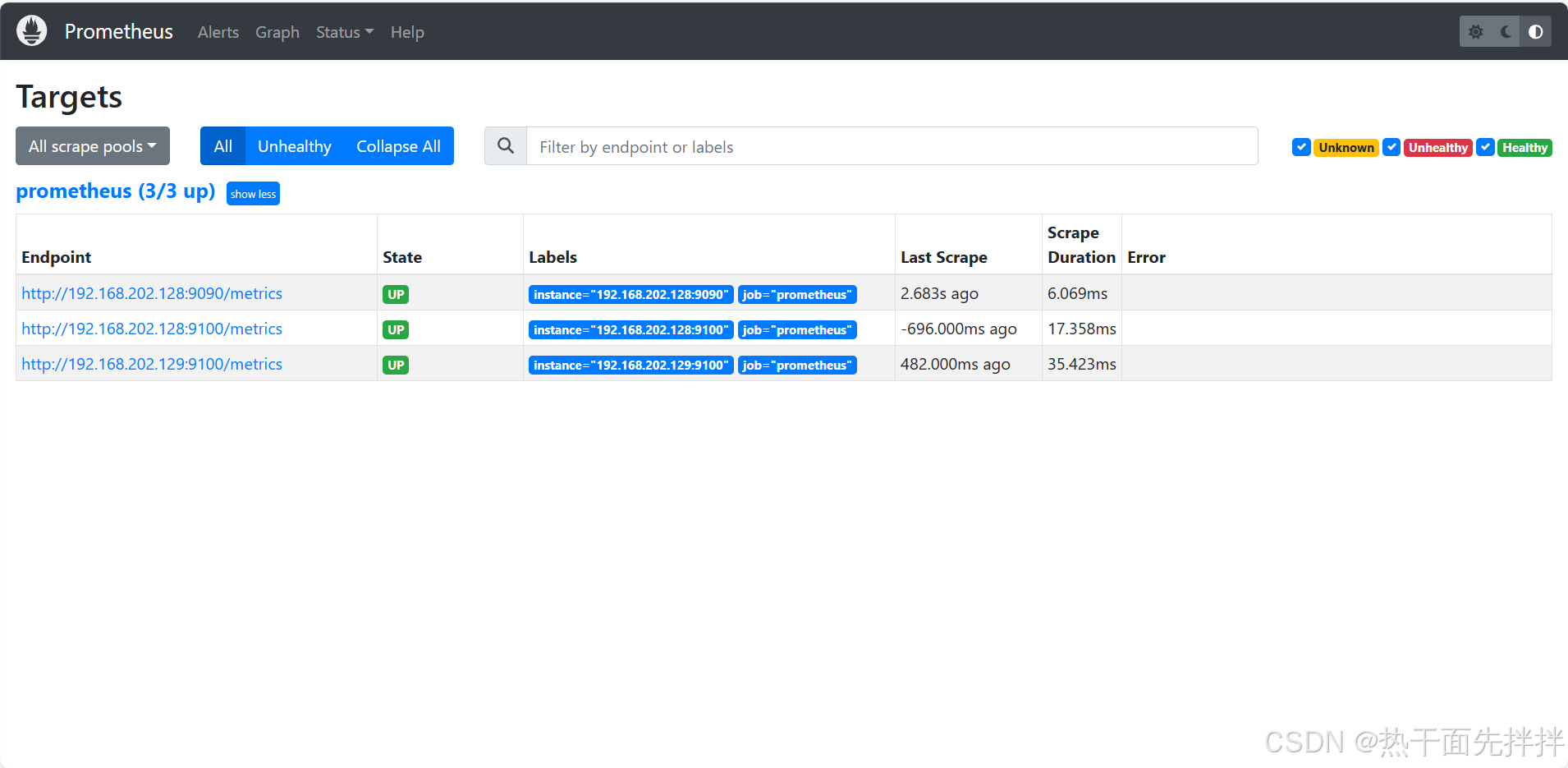

在http://192.168.202.128:9090/targets查看就能发现多了两台被监控主机

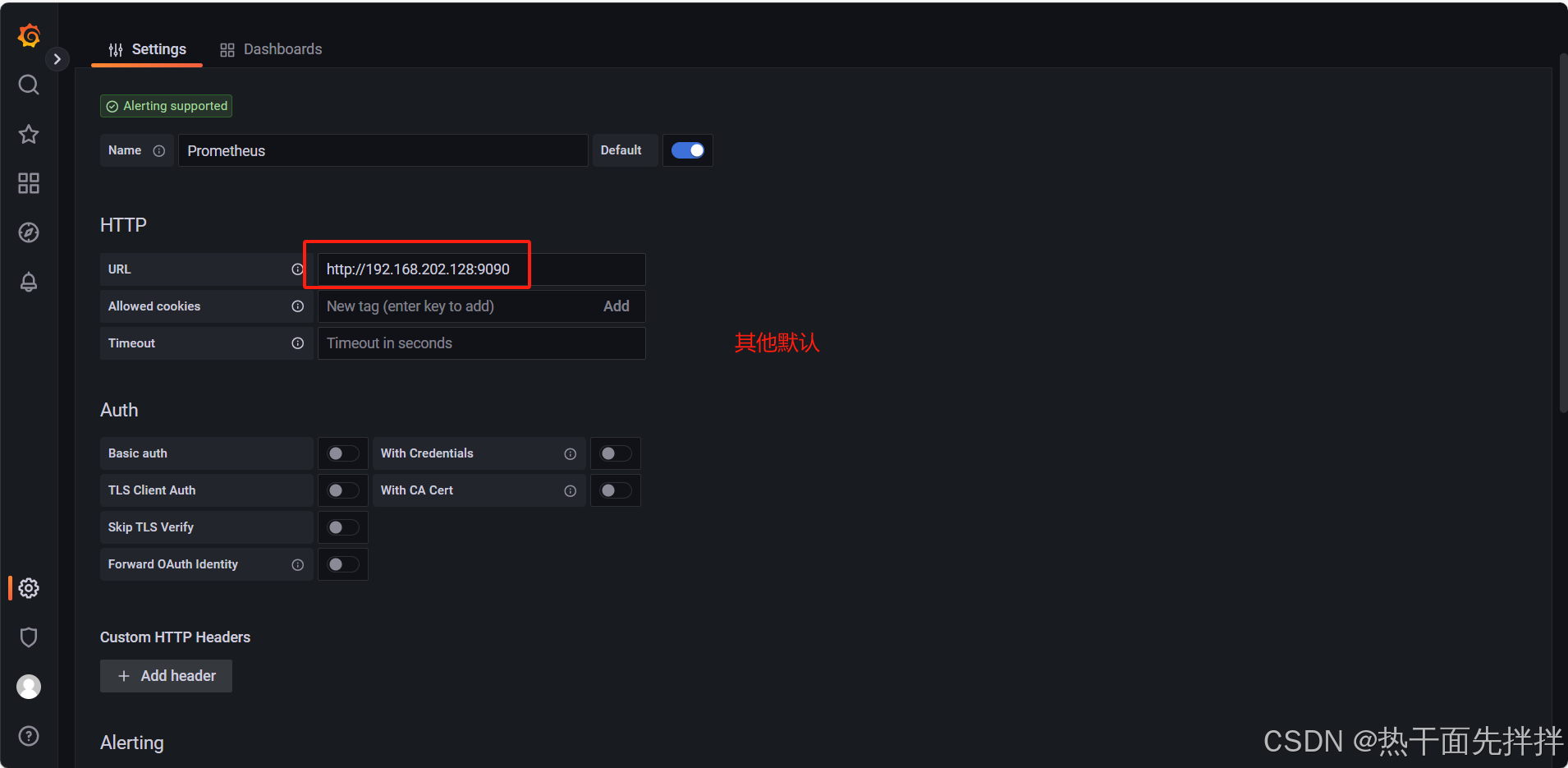

 8、登录grafana web页面进行配置

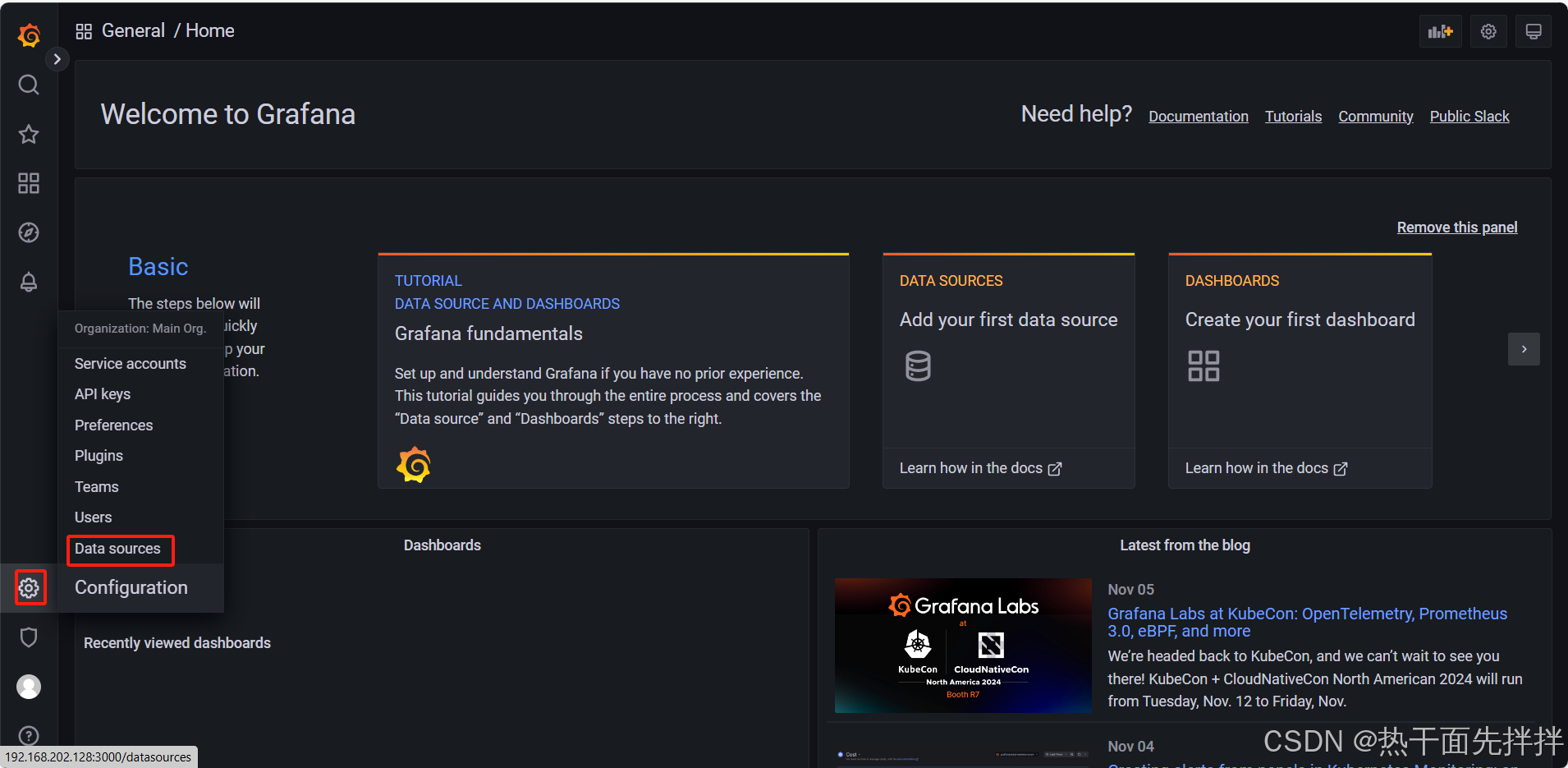

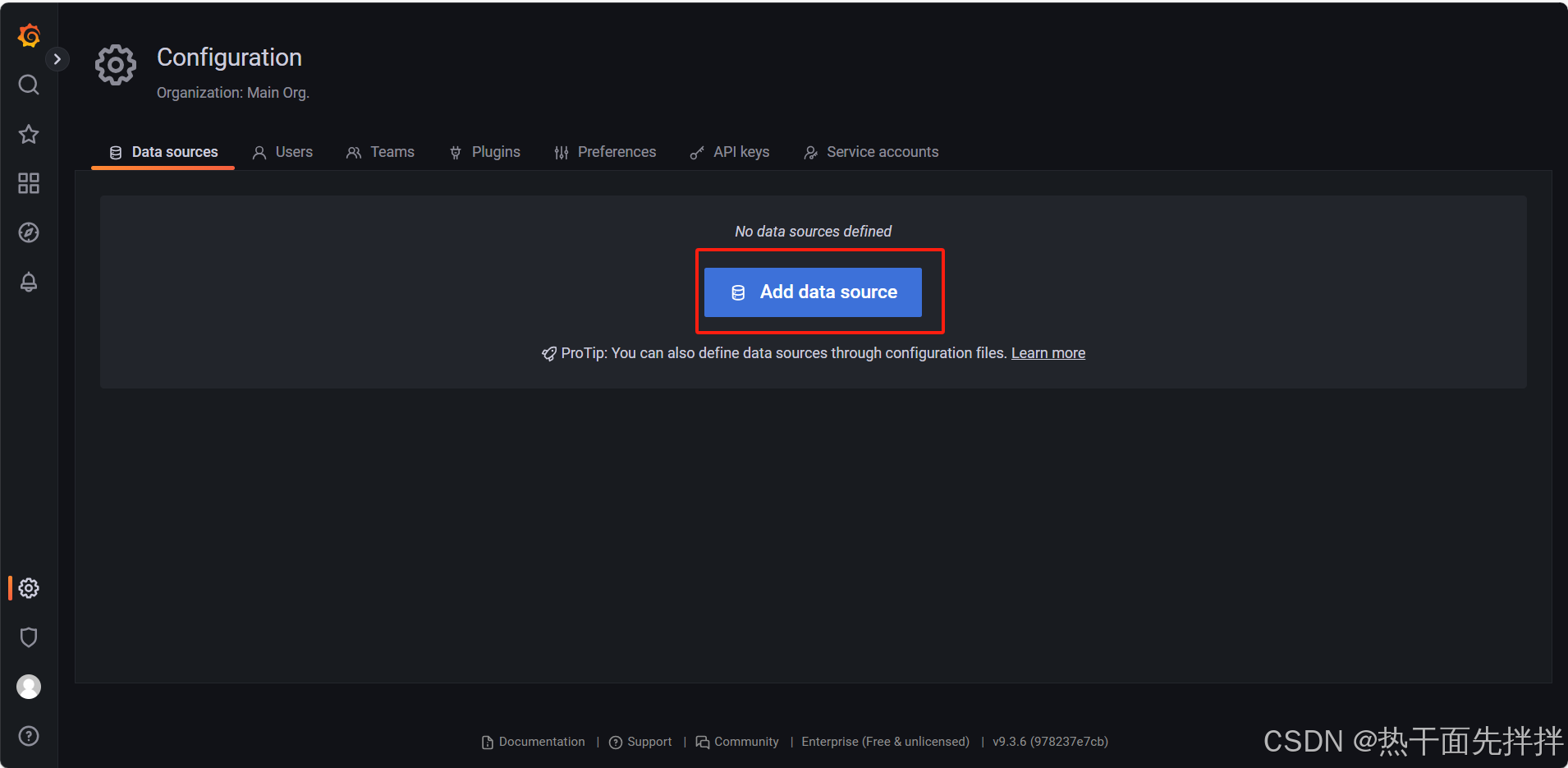

访问http://192.168.202.128:3000/并进入主页面

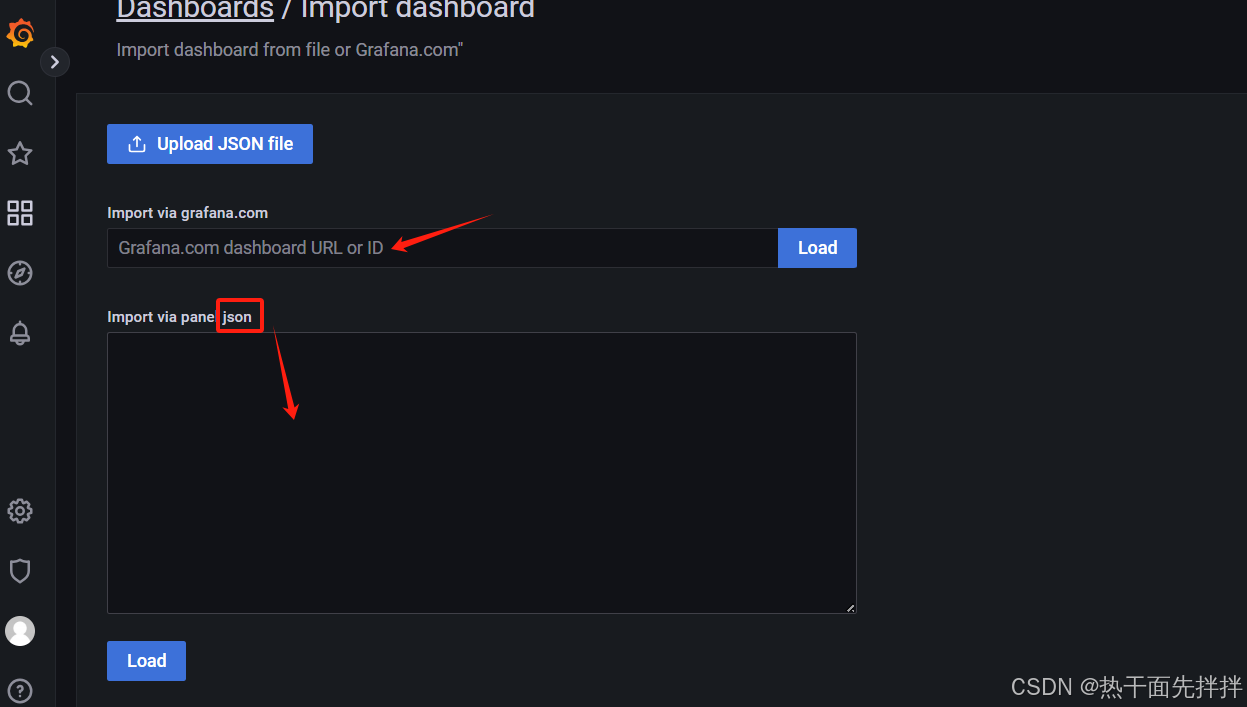

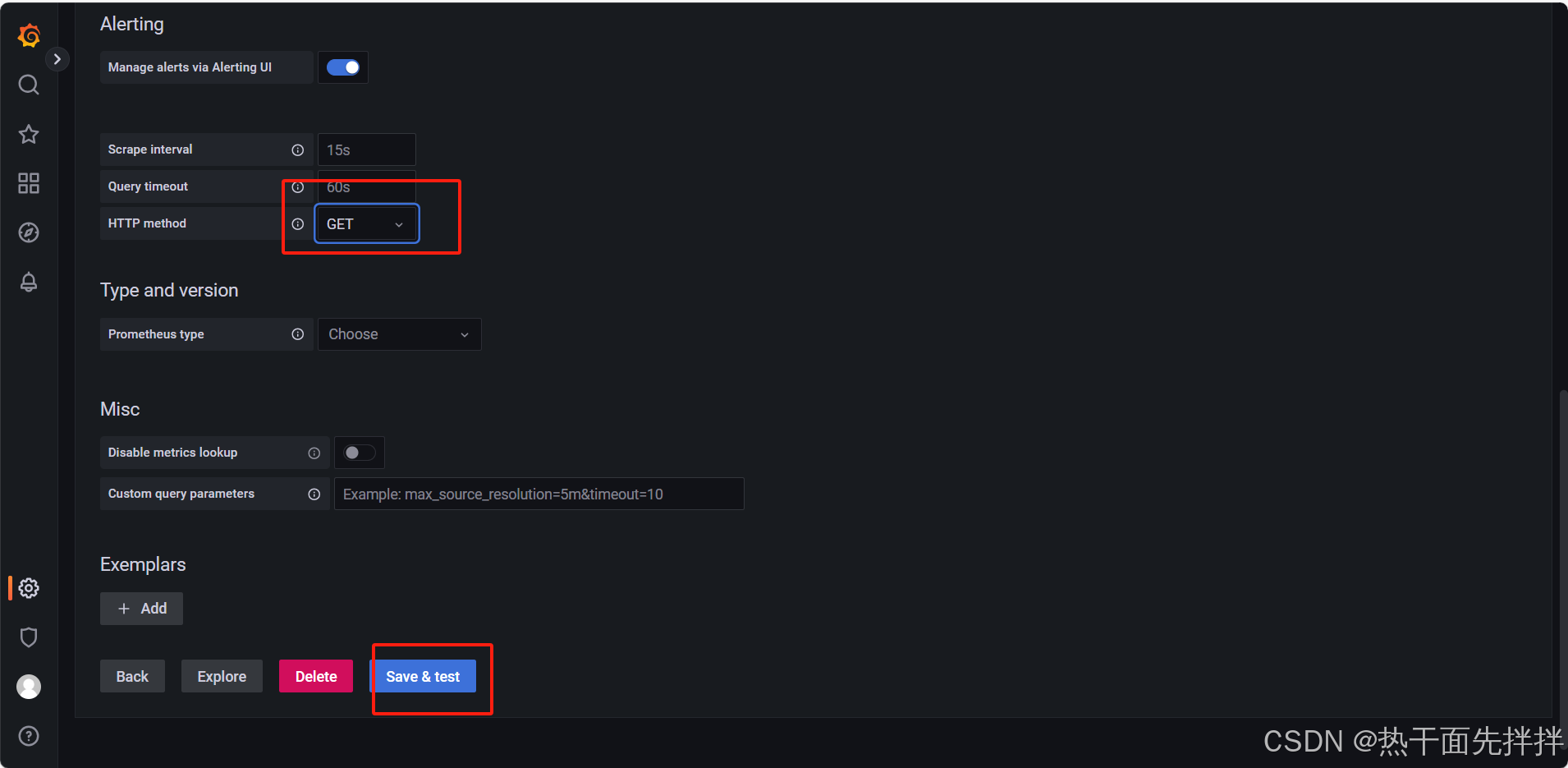

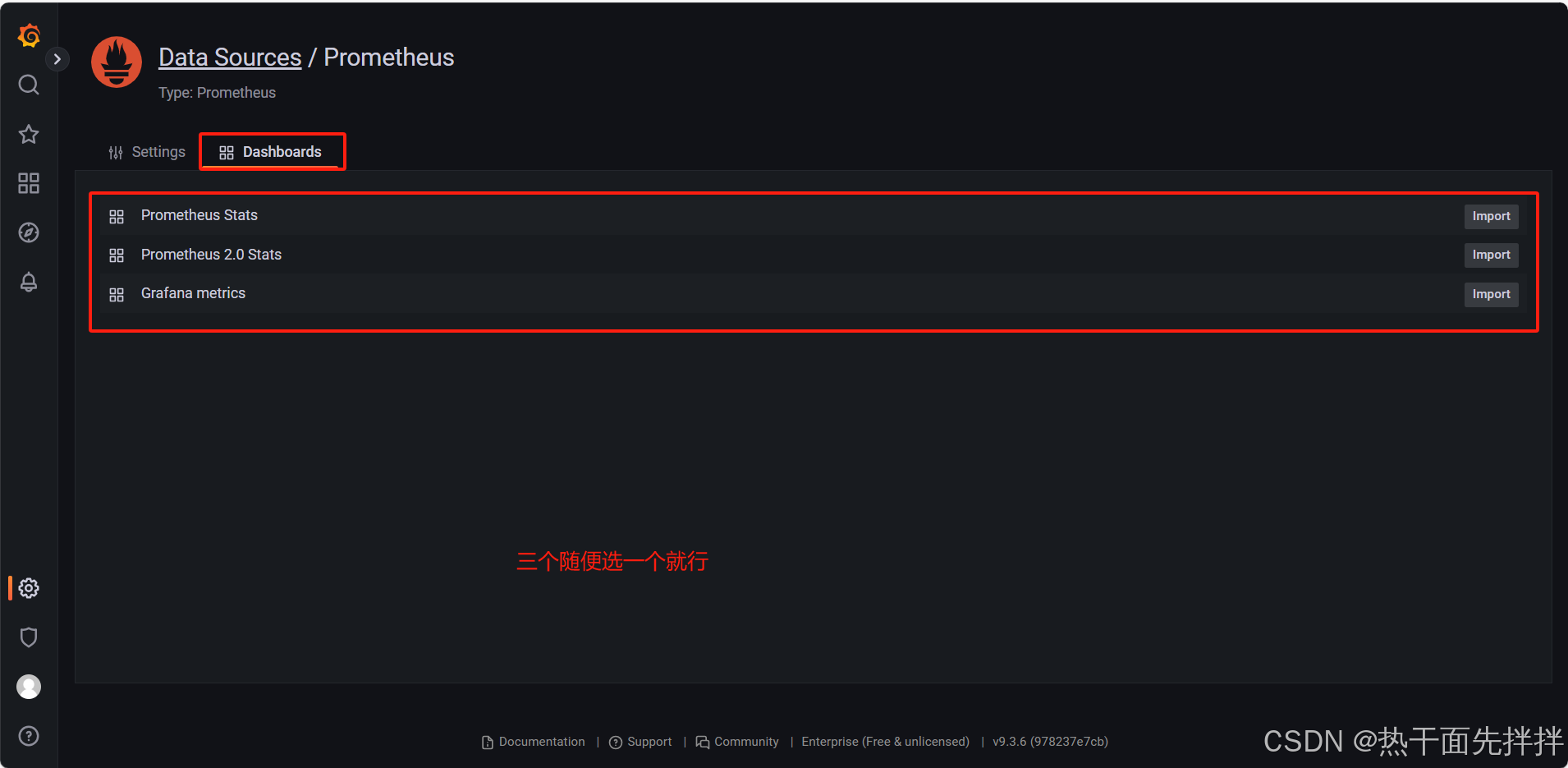

 保存后拉到最上面

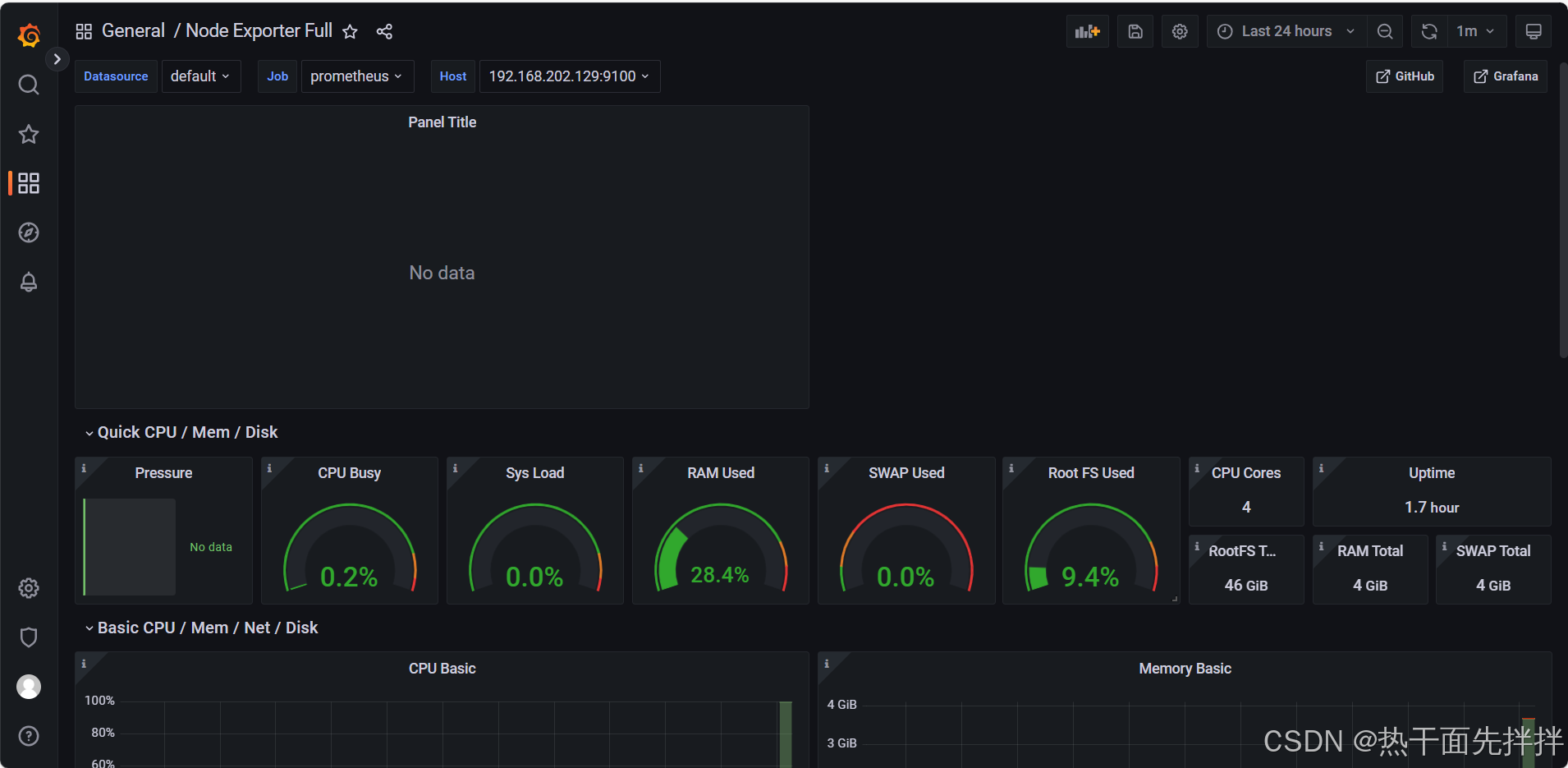

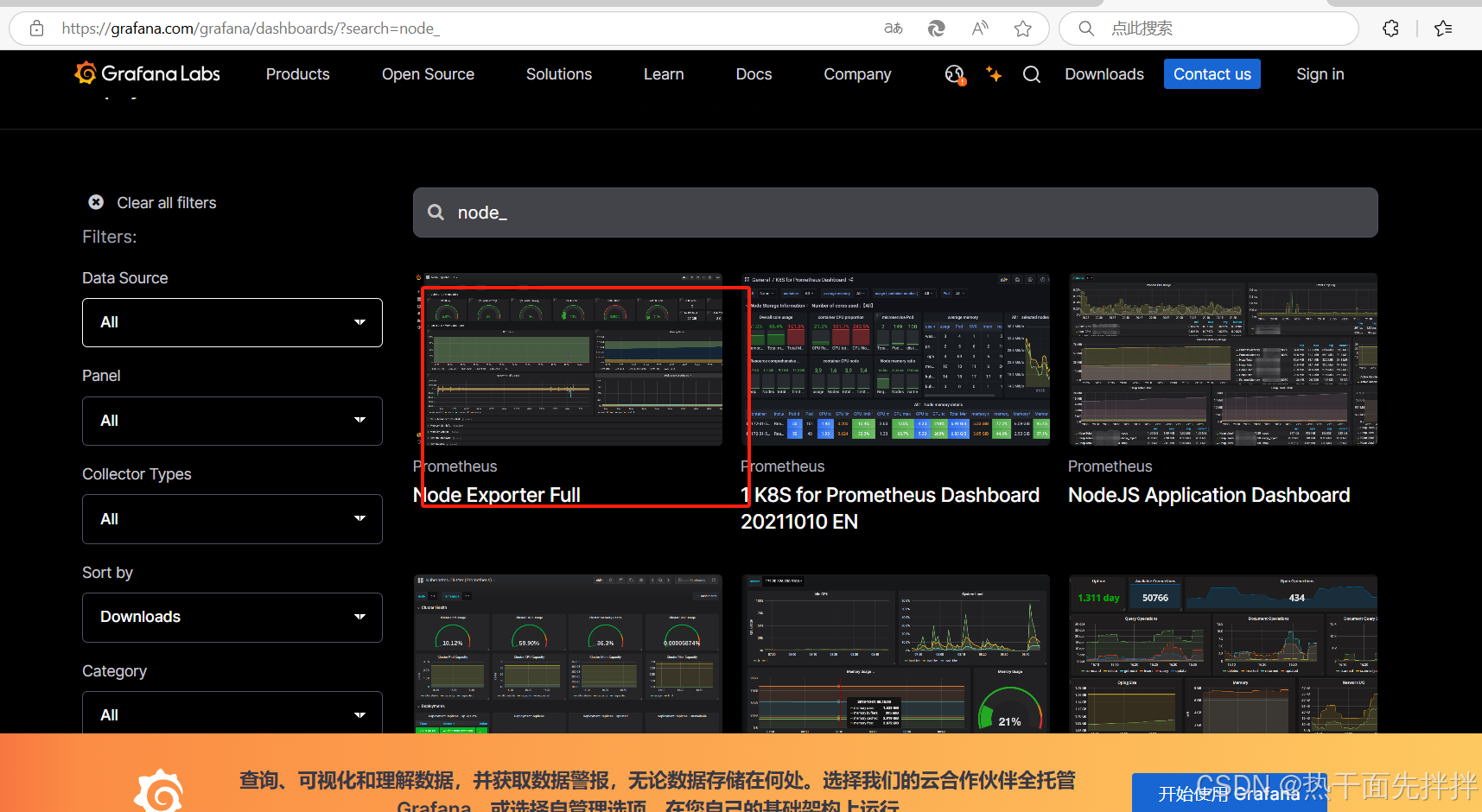

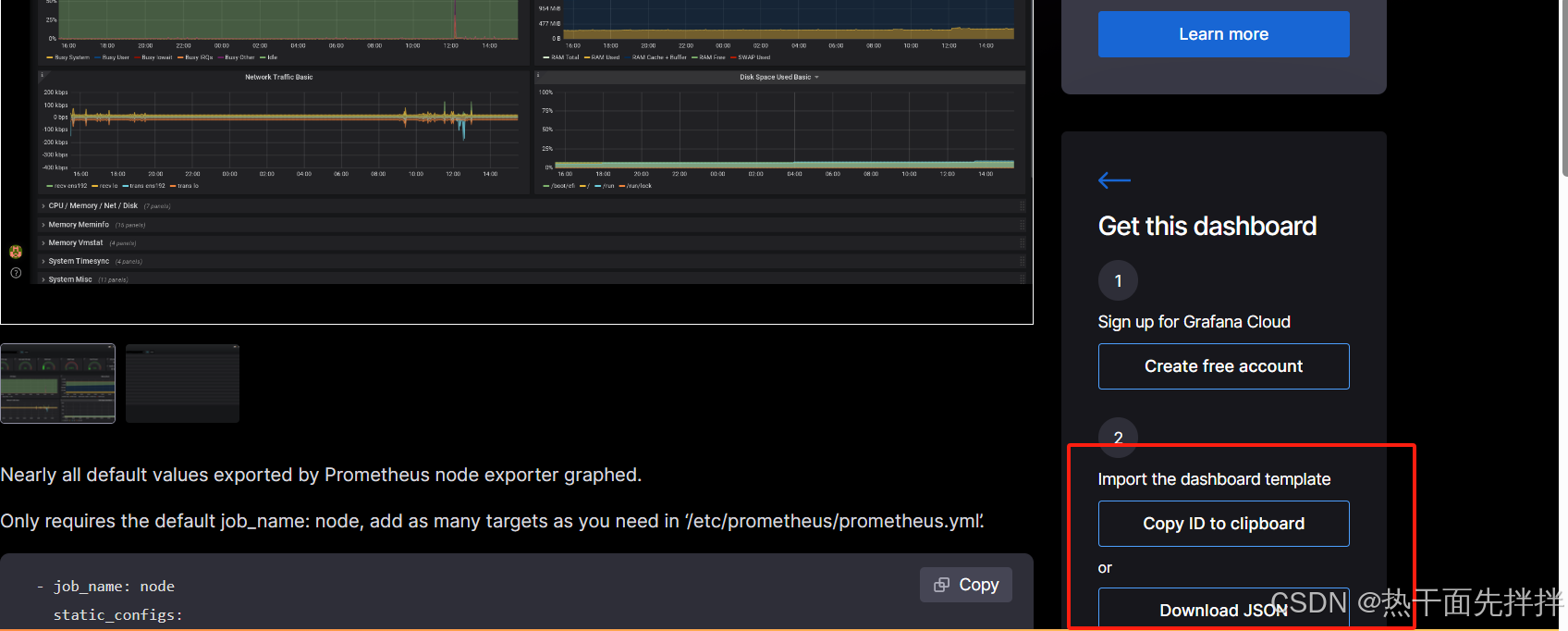

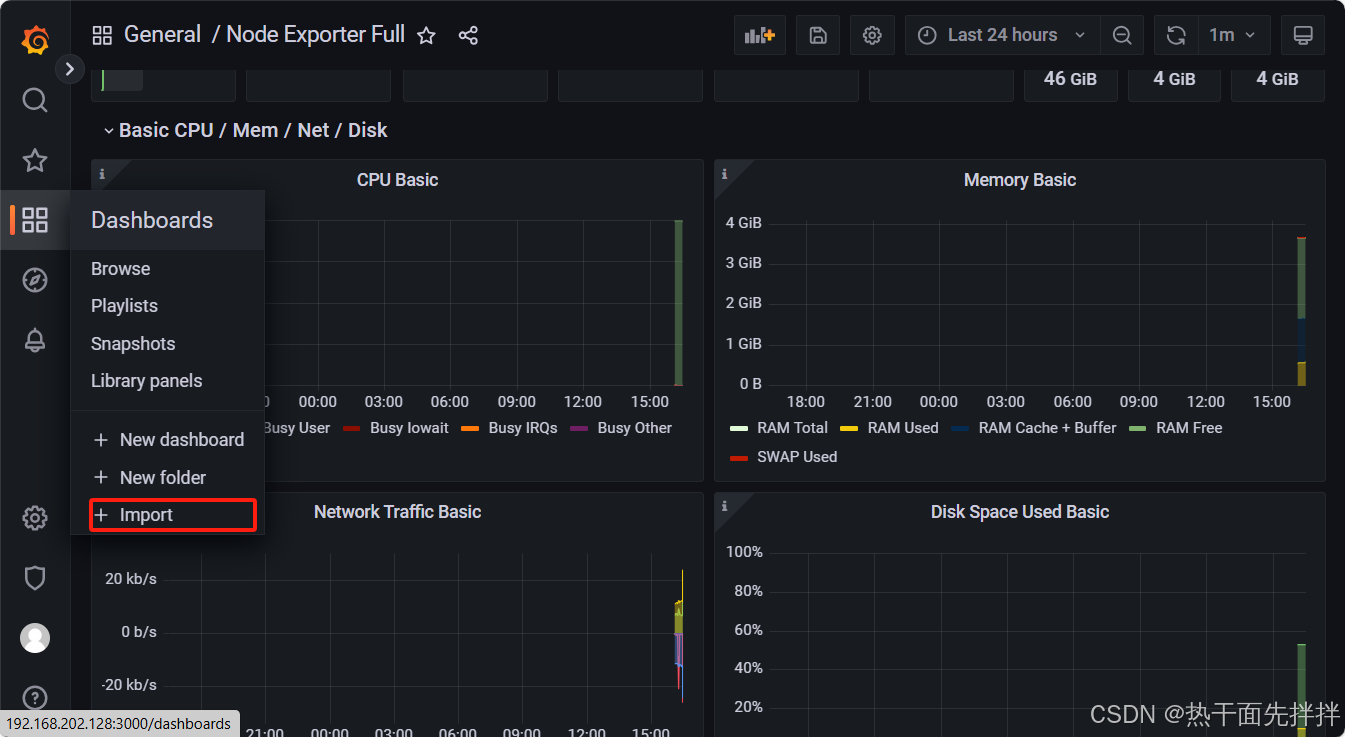

访问https://grafana.com/grafana/dashboards去选择模板



 到此结束
