1.启动SRS

./objs/srs -c conf/rtc.conf

配置文件：

listen              1935;
max_connections     1000;
daemon              off;
srs_log_tank        console;

http_server {
    enabled         on;
    listen          8080;
    dir             ./objs/nginx/html;
}

http_api {
    enabled         on;
    listen          1985;
}
stats {
    network         0;
}
rtc_server {
    enabled on;
    # Listen at udp://8000
    listen 8000;
    #
    # The $CANDIDATE means fetch from env, if not configed, use * as default.
    #
    # The * means retrieving server IP automatically, from all network interfaces,
    # @see https://github.com/ossrs/srs/wiki/v4_CN_RTCWiki#config-candidate 这里需要配置外网IP
    candidate 192.168.1.103;
}

推流：

ffmpeg -re -i time.flv -vcodec copy -acodec copy -f flv -y rtmp://192.168.1.103/live/livestream

播放：

http:///192.168.1.103:8080/players/rtc_player.html

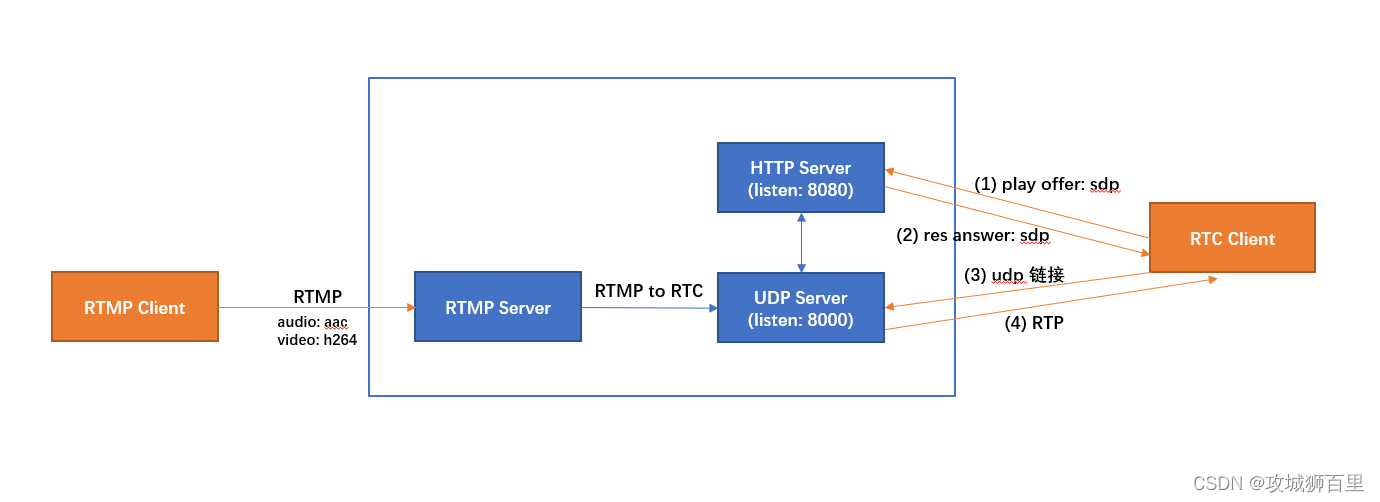

2.代码框架

在这里插入图片描述
这里主要分为几个部分：
rtmp推流到SRS
RTMP流转为RTC流
RTC客户端和SRS通过HTTP交互SDP信息
RTC客户端通过RTP拉流

RTMP推流到SRS

SrsLiveSource：代表RTMP源
SRS针对推流会创建专门的SrsLiveSource来表示源，本章主要分析一下源的创建和数据流的接受

创建Source

rtmp推流的时候就会创建SrsLiveSource和SrsRtcSource；
SrsRtmpConn::stream_service_cycle()

srs_error_t SrsRtmpConn::stream_service_cycle()
{
    srs_error_t err = srs_success;

    SrsRequest* req = info->req;

    if ((err = rtmp->identify_client(info->res->stream_id, info->type, req->stream, req->duration)) != srs_success) {
        return srs_error_wrap(err, "rtmp: identify client");
    }

    srs_discovery_tc_url(req->tcUrl, req->schema, req->host, req->vhost, req->app, req->stream, req->port, req->param);
    req->strip();
    srs_trace("client identified, type=%s, vhost=%s, app=%s, stream=%s, param=%s, duration=%dms",
        srs_client_type_string(info->type).c_str(), req->vhost.c_str(), req->app.c_str(), req->stream.c_str(), req->param.c_str(), srsu2msi(req->duration));

    // discovery vhost, resolve the vhost from config
    SrsConfDirective* parsed_vhost = _srs_config->get_vhost(req->vhost);
    if (parsed_vhost) {
        req->vhost = parsed_vhost->arg0();
    }

    if (req->schema.empty() || req->vhost.empty() || req->port == 0 || req->app.empty()) {
        return srs_error_new(ERROR_RTMP_REQ_TCURL, "discovery tcUrl failed, tcUrl=%s, schema=%s, vhost=%s, port=%d, app=%s",
            req->tcUrl.c_str(), req->schema.c_str(), req->vhost.c_str(), req->port, req->app.c_str());
    }

    // check vhost, allow default vhost.
    if ((err = check_vhost(true)) != srs_success) {
        return srs_error_wrap(err, "check vhost");
    }

    srs_trace("connected stream, tcUrl=%s, pageUrl=%s, swfUrl=%s, schema=%s, vhost=%s, port=%d, app=%s, stream=%s, param=%s, args=%s",
        req->tcUrl.c_str(), req->pageUrl.c_str(), req->swfUrl.c_str(), req->schema.c_str(), req->vhost.c_str(), req->port,
        req->app.c_str(), req->stream.c_str(), req->param.c_str(), (req->args? "(obj)":"null"));

    // do token traverse before serve it.
    // @see https://github.com/ossrs/srs/pull/239
    if (true) {
        info->edge = _srs_config->get_vhost_is_edge(req->vhost);
        bool edge_traverse = _srs_config->get_vhost_edge_token_traverse(req->vhost);
        if (info->edge && edge_traverse) {
            if ((err = check_edge_token_traverse_auth()) != srs_success) {
                return srs_error_wrap(err, "rtmp: check token traverse");
            }
        }
    }

    // security check
    if ((err = security->check(info->type, ip, req)) != srs_success) {
        return srs_error_wrap(err, "rtmp: security check");
    }

    // Never allow the empty stream name, for HLS may write to a file with empty name.
    // @see https://github.com/ossrs/srs/issues/834
    if (req->stream.empty()) {
        return srs_error_new(ERROR_RTMP_STREAM_NAME_EMPTY, "rtmp: empty stream");
    }

    // client is identified, set the timeout to service timeout.
    rtmp->set_recv_timeout(SRS_CONSTS_RTMP_TIMEOUT);
    rtmp->set_send_timeout(SRS_CONSTS_RTMP_TIMEOUT);

    // find a source to serve.
    SrsLiveSource* source = NULL;
    if ((err = _srs_sources->fetch_or_create(req, server, &source)) != srs_success) {
        return srs_error_wrap(err, "rtmp: fetch source");
    }
    srs_assert(source != NULL);

    // update the statistic when source disconveried.
    SrsStatistic* stat = SrsStatistic::instance();
    if ((err = stat->on_client(_srs_context->get_id().c_str(), req, this, info->type)) != srs_success) {
        return srs_error_wrap(err, "rtmp: stat client");
    }

    bool enabled_cache = _srs_config->get_gop_cache(req->vhost);
    srs_trace("source url=%s, ip=%s, cache=%d, is_edge=%d, source_id=%s/%s",
        req->get_stream_url().c_str(), ip.c_str(), enabled_cache, info->edge, source->source_id().c_str(), source->pre_source_id().c_str());
    source->set_cache(enabled_cache);

    switch (info->type) {
        case SrsRtmpConnPlay: {
            // response connection start play
            if ((err = rtmp->start_play(info->res->stream_id)) != srs_success) {
                return srs_error_wrap(err, "rtmp: start play");
            }
            if ((err = http_hooks_on_play()) != srs_success) {
                return srs_error_wrap(err, "rtmp: callback on play");
            }

            err = playing(source);
            http_hooks_on_stop();

            return err;
        }
        case SrsRtmpConnFMLEPublish: {
            if ((err = rtmp->start_fmle_publish(info->res->stream_id)) != srs_success) {
                return srs_error_wrap(err, "rtmp: start FMLE publish");
            }

            return publishing(source);
        }
        case SrsRtmpConnHaivisionPublish: {
            if ((err = rtmp->start_haivision_publish(info->res->stream_id)) != srs_success) {
                return srs_error_wrap(err, "rtmp: start HAIVISION publish");
            }

            return publishing(source);
        }
        case SrsRtmpConnFlashPublish: {
            if ((err = rtmp->start_flash_publish(info->res->stream_id)) != srs_success) {
                return srs_error_wrap(err, "rtmp: start FLASH publish");
            }

            return publishing(source);
        }
        default: {
            return srs_error_new(ERROR_SYSTEM_CLIENT_INVALID, "rtmp: unknown client type=%d", info->type);
        }
    }

    return err;
}

这里RTMP的业务处理中心，比较重要，推流和播放都在这里处理，同时SrsLiveSource也是在这里创建的。

数据接受

我们在source的音频回调这里打一下断点，看一下调用栈，就可以知道调用顺序

(gdb) bt
#0  SrsLiveSource::on_audio (this=0xfcd7a0, shared_audio=0x1067b80) at src/app/srs_app_source.cpp:2140
#1  0x00000000004f2241 in SrsRtmpConn::process_publish_message (this=0xfcd890, source=0xfcd7a0, msg=0x1067b80) at src/app/srs_app_rtmp_conn.cpp:1055
#2  0x00000000004f20ef in SrsRtmpConn::handle_publish_message (this=0xfcd890, source=0xfcd7a0, msg=0x1067b80) at src/app/srs_app_rtmp_conn.cpp:1034
#3  0x00000000005a0d06 in SrsPublishRecvThread::consume (this=0x10060a0, msg=0x1067b80) at src/app/srs_app_recv_thread.cpp:376
#4  0x000000000059fe7e in SrsRecvThread::do_cycle (this=0x10060c0) at src/app/srs_app_recv_thread.cpp:133
#5  0x000000000059fcea in SrsRecvThread::cycle (this=0x10060c0) at src/app/srs_app_recv_thread.cpp:102
#6  0x000000000051fe11 in SrsFastCoroutine::cycle (this=0x10679c0) at src/app/srs_app_st.cpp:253
#7  0x000000000051fe94 in SrsFastCoroutine::pfn (arg=0x10679c0) at src/app/srs_app_st.cpp:268
#8  0x00000000006346e8 in _st_thread_main () at sched.c:363
#9  0x0000000000634f5b in st_thread_create (start=0x1005daf, arg=0x10679a0, joinable=0, stk_size=16801184) at sched.c:694

SrsRecvThread::do_cycle()

srs_error_t SrsRecvThread::do_cycle()
{
    srs_error_t err = srs_success;

    while (true) {
        if ((err = trd->pull()) != srs_success) {
            return srs_error_wrap(err, "recv thread");
        }

        // When the pumper is interrupted, wait then retry.
        if (pumper->interrupted()) {
            srs_usleep(timeout);
            continue;
        }

        SrsCommonMessage* msg = NULL;

        // Process the received message.
        if ((err = rtmp->recv_message(&msg)) == srs_success) {
            err = pumper->consume(msg);
        }

        if (err != srs_success) {
            // Interrupt the receive thread for any error.
            trd->interrupt();

            // Notify the pumper to quit for error.
            pumper->interrupt(err);

            return srs_error_wrap(err, "recv thread");
        }
    }

    return err;
}

SRS有个专门的协程处理数据接受，主要关注两个rtmp->recv_message(&msg)和pumper->consume(msg)
rtmp->recv_message(&msg)：用来接受数据，最终调用SrsProtocol::recv_interlaced_message(SrsCommonMessage** pmsg)

pumper->consume(msg)：用来处理数据

SrsProtocol::recv_interlaced_message(SrsCommonMessage** pmsg)

srs_error_t SrsProtocol::read_message_payload(SrsChunkStream* chunk, SrsCommonMessage** pmsg)
{
    srs_error_t err = srs_success;

    // empty message
    if (chunk->header.payload_length <= 0) {
        srs_trace("get an empty RTMP message(type=%d, size=%d, time=%" PRId64 ", sid=%d)", chunk->header.message_type,
                  chunk->header.payload_length, chunk->header.timestamp, chunk->header.stream_id);

        *pmsg = chunk->msg;
        chunk->msg = NULL;

        return err;
    }
    srs_assert(chunk->header.payload_length > 0);

    // the chunk payload size.
    int payload_size = chunk->header.payload_length - chunk->msg->size;
    payload_size = srs_min(payload_size, in_chunk_size);

    // create msg payload if not initialized
    if (!chunk->msg->payload) {
        chunk->msg->create_payload(chunk->header.payload_length);
    }

    // read payload to buffer
    if ((err = in_buffer->grow(skt, payload_size)) != srs_success) {
        return srs_error_wrap(err, "read %d bytes payload", payload_size);
    }
    memcpy(chunk->msg->payload + chunk->msg->size, in_buffer->read_slice(payload_size), payload_size);
    chunk->msg->size += payload_size;

    // got entire RTMP message?
    if (chunk->header.payload_length == chunk->msg->size) {
        *pmsg = chunk->msg;
        chunk->msg = NULL;
        return err;
    }

    return err;
}

这里分别拷贝rtmp的header和body给SrsCommonMessage，到这里我们就算拿到rtmp的数据了。

音频的话，rtmp的header的TypeID应该为8，即rtmpt.header.typeid == 0x08。

而body是按照flv的格式组织的，相当于flv的音频tag：

第⼀个字节包含了⾳频数据的参数信息，
第⼆个字节开始为⾳频流数据。

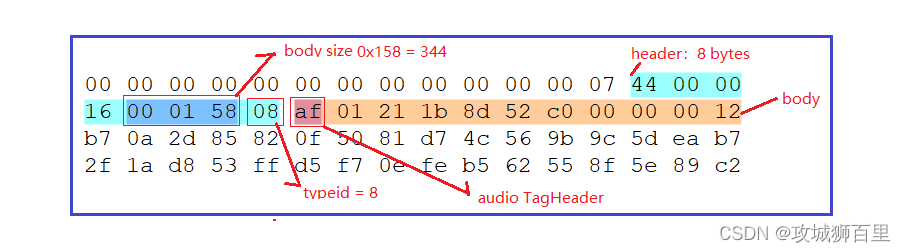

我们抓一个音频的rtmp包分析一下：
在这里插入图片描述

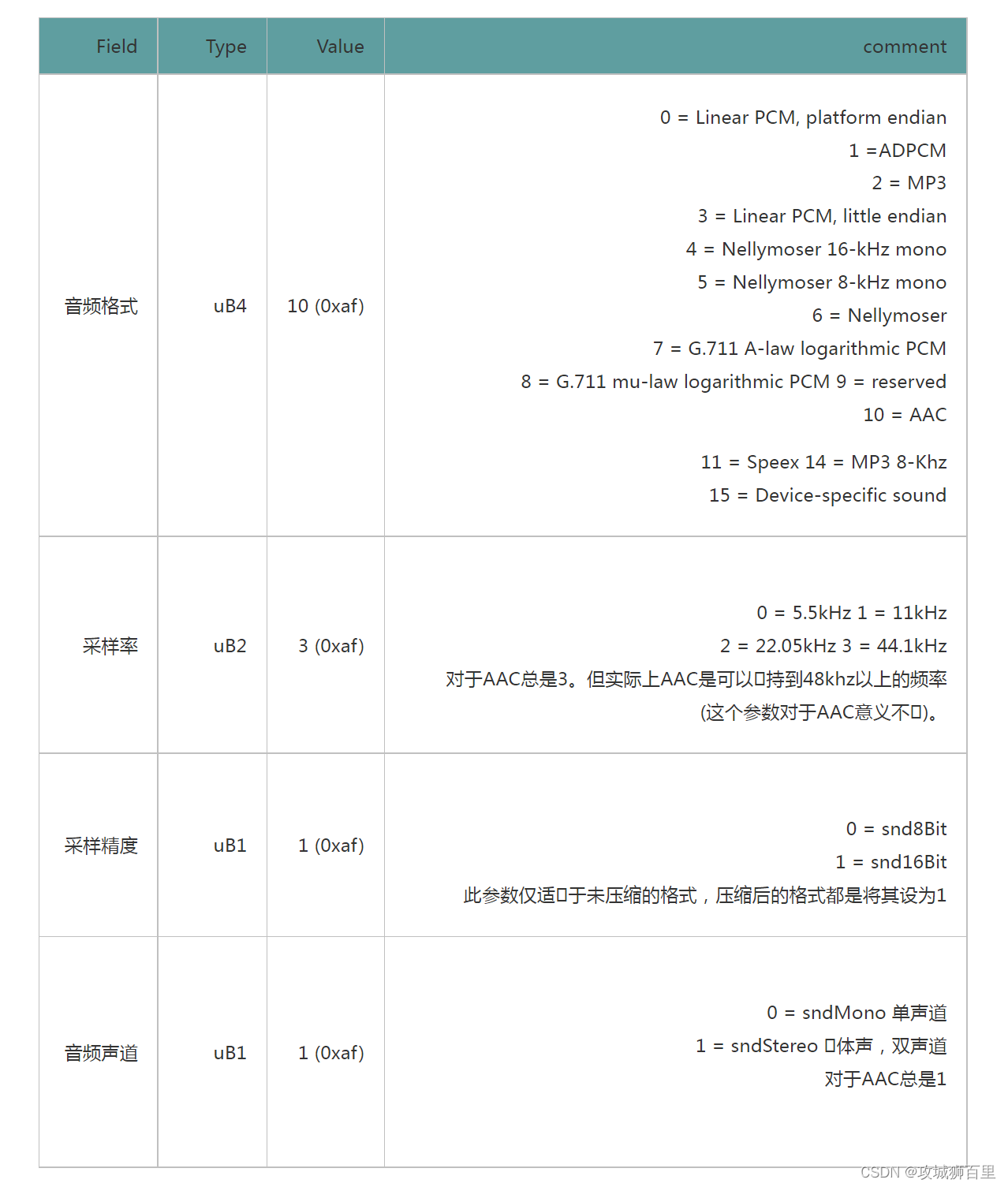

AudioTagHeader格式：

处理数据

通过pumper->consume跟踪，发现process_publish_message()用来处理rtmp的message。

srs_error_t SrsRtmpConn::process_publish_message(SrsLiveSource* source, SrsCommonMessage* msg)
{
    srs_error_t err = srs_success;

    // for edge, directly proxy message to origin.
    if (info->edge) {
        if ((err = source->on_edge_proxy_publish(msg)) != srs_success) {
            return srs_error_wrap(err, "rtmp: proxy publish");
        }
        return err;
    }

    // process audio packet 语音包 typeid = 8
    if (msg->header.is_audio()) {
        if ((err = source->on_audio(msg)) != srs_success) {
            return srs_error_wrap(err, "rtmp: consume audio");
        }
        return err;
    }
    // process video packet 视频包 typeid = 9
    if (msg->header.is_video()) {
        if ((err = source->on_video(msg)) != srs_success) {
            return srs_error_wrap(err, "rtmp: consume video");
        }
        return err;
    }

    // process aggregate packet 统计消息 typeid = 22
    if (msg->header.is_aggregate()) {
        if ((err = source->on_aggregate(msg)) != srs_success) {
            return srs_error_wrap(err, "rtmp: consume aggregate");
        }
        return err;
    }

    // process onMetaData 数据消息 typed = 18 | 15
    if (msg->header.is_amf0_data() || msg->header.is_amf3_data()) {
        SrsPacket* pkt = NULL;
        if ((err = rtmp->decode_message(msg, &pkt)) != srs_success) {
            return srs_error_wrap(err, "rtmp: decode message");
        }
        SrsAutoFree(SrsPacket, pkt);

        if (dynamic_cast<SrsOnMetaDataPacket*>(pkt)) {
            SrsOnMetaDataPacket* metadata = dynamic_cast<SrsOnMetaDataPacket*>(pkt);
            if ((err = source->on_meta_data(msg, metadata)) != srs_success) {
                return srs_error_wrap(err, "rtmp: consume metadata");
            }
            return err;
        }
        return err;
    }

    return err;
}

这里分别处理语音、视频等各种消息。

RTMP协议转WebRTC

SrsLiveSource：代表RTMP源
SrsRtcSource：代表RTC源

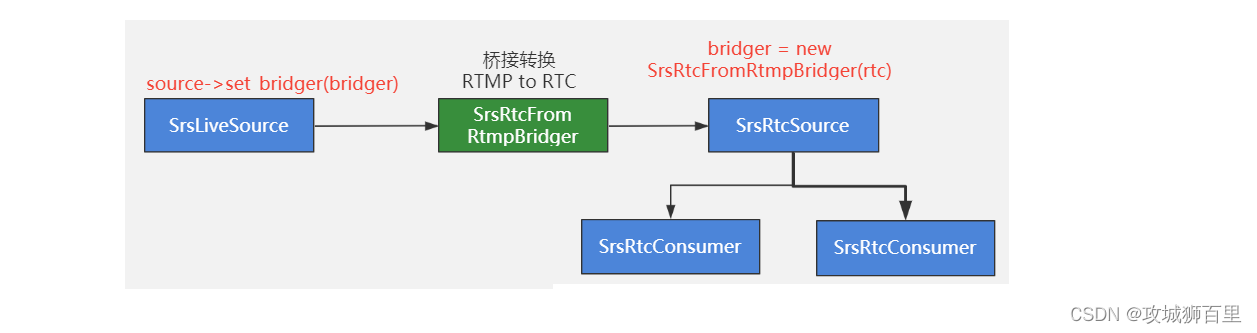

两个协议的转换，就是怎么从SrsLiveSource转到SrsRtcSource，这里需要一个桥梁SrsRtcFromRtmpBridger
在这里插入图片描述

创建Source

rtmp推流的时候就会创建SrsLiveSource和SrsRtcSource；

SrsRtmpConn::stream_service_cycle()

srs_error_t SrsRtmpConn::stream_service_cycle()
{
    srs_error_t err = srs_success;

    SrsRequest* req = info->req;

    if ((err = rtmp->identify_client(info->res->stream_id, info->type, req->stream, req->duration)) != srs_success) {
        return srs_error_wrap(err, "rtmp: identify client");
    }

    srs_discovery_tc_url(req->tcUrl, req->schema, req->host, req->vhost, req->app, req->stream, req->port, req->param);
    req->strip();
    srs_trace("client identified, type=%s, vhost=%s, app=%s, stream=%s, param=%s, duration=%dms",
        srs_client_type_string(info->type).c_str(), req->vhost.c_str(), req->app.c_str(), req->stream.c_str(), req->param.c_str(), srsu2msi(req->duration));

    // discovery vhost, resolve the vhost from config
    SrsConfDirective* parsed_vhost = _srs_config->get_vhost(req->vhost);
    if (parsed_vhost) {
        req->vhost = parsed_vhost->arg0();
    }

    if (req->schema.empty() || req->vhost.empty() || req->port == 0 || req->app.empty()) {
        return srs_error_new(ERROR_RTMP_REQ_TCURL, "discovery tcUrl failed, tcUrl=%s, schema=%s, vhost=%s, port=%d, app=%s",
            req->tcUrl.c_str(), req->schema.c_str(), req->vhost.c_str(), req->port, req->app.c_str());
    }

    // check vhost, allow default vhost.
    if ((err = check_vhost(true)) != srs_success) {
        return srs_error_wrap(err, "check vhost");
    }

    srs_trace("connected stream, tcUrl=%s, pageUrl=%s, swfUrl=%s, schema=%s, vhost=%s, port=%d, app=%s, stream=%s, param=%s, args=%s",
        req->tcUrl.c_str(), req->pageUrl.c_str(), req->swfUrl.c_str(), req->schema.c_str(), req->vhost.c_str(), req->port,
        req->app.c_str(), req->stream.c_str(), req->param.c_str(), (req->args? "(obj)":"null"));

    // do token traverse before serve it.
    // @see https://github.com/ossrs/srs/pull/239
    if (true) {
        info->edge = _srs_config->get_vhost_is_edge(req->vhost);
        bool edge_traverse = _srs_config->get_vhost_edge_token_traverse(req->vhost);
        if (info->edge && edge_traverse) {
            if ((err = check_edge_token_traverse_auth()) != srs_success) {
                return srs_error_wrap(err, "rtmp: check token traverse");
            }
        }
    }

    // security check
    if ((err = security->check(info->type, ip, req)) != srs_success) {
        return srs_error_wrap(err, "rtmp: security check");
    }

    // Never allow the empty stream name, for HLS may write to a file with empty name.
    // @see https://github.com/ossrs/srs/issues/834
    if (req->stream.empty()) {
        return srs_error_new(ERROR_RTMP_STREAM_NAME_EMPTY, "rtmp: empty stream");
    }

    // client is identified, set the timeout to service timeout.
    rtmp->set_recv_timeout(SRS_CONSTS_RTMP_TIMEOUT);
    rtmp->set_send_timeout(SRS_CONSTS_RTMP_TIMEOUT);

    // find a source to serve.
    SrsLiveSource* source = NULL;
    if ((err = _srs_sources->fetch_or_create(req, server, &source)) != srs_success) {
        return srs_error_wrap(err, "rtmp: fetch source");
    }
    srs_assert(source != NULL);

    // update the statistic when source disconveried.
    SrsStatistic* stat = SrsStatistic::instance();
    if ((err = stat->on_client(_srs_context->get_id().c_str(), req, this, info->type)) != srs_success) {
        return srs_error_wrap(err, "rtmp: stat client");
    }

    bool enabled_cache = _srs_config->get_gop_cache(req->vhost);
    srs_trace("source url=%s, ip=%s, cache=%d, is_edge=%d, source_id=%s/%s",
        req->get_stream_url().c_str(), ip.c_str(), enabled_cache, info->edge, source->source_id().c_str(), source->pre_source_id().c_str());
    source->set_cache(enabled_cache);

    switch (info->type) {
        case SrsRtmpConnPlay: {
            // response connection start play
            if ((err = rtmp->start_play(info->res->stream_id)) != srs_success) {
                return srs_error_wrap(err, "rtmp: start play");
            }
            if ((err = http_hooks_on_play()) != srs_success) {
                return srs_error_wrap(err, "rtmp: callback on play");
            }

            err = playing(source);
            http_hooks_on_stop();

            return err;
        }
        case SrsRtmpConnFMLEPublish: {
            if ((err = rtmp->start_fmle_publish(info->res->stream_id)) != srs_success) {
                return srs_error_wrap(err, "rtmp: start FMLE publish");
            }

            return publishing(source);
        }
        case SrsRtmpConnHaivisionPublish: {
            if ((err = rtmp->start_haivision_publish(info->res->stream_id)) != srs_success) {
                return srs_error_wrap(err, "rtmp: start HAIVISION publish");
            }

            return publishing(source);
        }
        case SrsRtmpConnFlashPublish: {
            if ((err = rtmp->start_flash_publish(info->res->stream_id)) != srs_success) {
                return srs_error_wrap(err, "rtmp: start FLASH publish");
            }

            return publishing(source);
        }
        default: {
            return srs_error_new(ERROR_SYSTEM_CLIENT_INVALID, "rtmp: unknown client type=%d", info->type);
        }
    }

    return err;
}

这里推流的业务处理，是会创建SrsLiveSource，然后我们看看publishing

SrsRtmpConn::publishing(SrsLiveSource* source)

srs_error_t SrsRtmpConn::publishing(SrsLiveSource* source)
{
    srs_error_t err = srs_success;

    SrsRequest* req = info->req;

    if (_srs_config->get_refer_enabled(req->vhost)) {
        if ((err = refer->check(req->pageUrl, _srs_config->get_refer_publish(req->vhost))) != srs_success) {
            return srs_error_wrap(err, "rtmp: referer check");
        }
    }

    if ((err = http_hooks_on_publish()) != srs_success) {
        return srs_error_wrap(err, "rtmp: callback on publish");
    }

    // TODO: FIXME: Should refine the state of publishing.
    if ((err = acquire_publish(source)) == srs_success) {
        // use isolate thread to recv,
        // @see: https://github.com/ossrs/srs/issues/237
        SrsPublishRecvThread rtrd(rtmp, req, srs_netfd_fileno(stfd), 0, this, source, _srs_context->get_id());
        err = do_publishing(source, &rtrd);
        rtrd.stop();
    }

    // whatever the acquire publish, always release publish.
    // when the acquire error in the midlle-way, the publish state changed,
    // but failed, so we must cleanup it.
    // @see https://github.com/ossrs/srs/issues/474
    // @remark when stream is busy, should never release it.
    if (srs_error_code(err) != ERROR_SYSTEM_STREAM_BUSY) {
        release_publish(source);
    }

    http_hooks_on_unpublish();

    return err;
}

这里先看看acquire_publish处理

srs_error_t SrsRtmpConn::acquire_publish(SrsLiveSource* source)
{
    srs_error_t err = srs_success;

    SrsRequest* req = info->req;

    // Check whether RTMP stream is busy.
    if (!source->can_publish(info->edge)) {
        return srs_error_new(ERROR_SYSTEM_STREAM_BUSY, "rtmp: stream %s is busy", req->get_stream_url().c_str());
    }

    // Check whether RTC stream is busy.
#ifdef SRS_RTC
    SrsRtcSource *rtc = NULL;
    bool rtc_server_enabled = _srs_config->get_rtc_server_enabled();
    bool rtc_enabled = _srs_config->get_rtc_enabled(req->vhost);
    if (rtc_server_enabled && rtc_enabled && !info->edge) {
        if ((err = _srs_rtc_sources->fetch_or_create(req, &rtc)) != srs_success) {
            return srs_error_wrap(err, "create source");
        }

        if (!rtc->can_publish()) {
            return srs_error_new(ERROR_SYSTEM_STREAM_BUSY, "rtc stream %s busy", req->get_stream_url().c_str());
        }
    }
#endif

    // Bridge to RTC streaming.
#if defined(SRS_RTC) && defined(SRS_FFMPEG_FIT)
    if (rtc) {
        SrsRtcFromRtmpBridger *bridger = new SrsRtcFromRtmpBridger(rtc);
        if ((err = bridger->initialize(req)) != srs_success) {
            srs_freep(bridger);
            return srs_error_wrap(err, "bridger init");
        }

        source->set_bridger(bridger);
    }
#endif

    // Start publisher now.
    if (info->edge) {
        return source->on_edge_start_publish();
    } else {
        return source->on_publish();
    }
}

可以看出，如果配置了RTC，就会创建SrsRtcSource和SrsRtcFromRtmpBridger。

获取RTMP数据

SrsRtmpConn::process_publish_message(SrsLiveSource* source, SrsCommonMessage* msg)

srs_error_t SrsRtmpConn::process_publish_message(SrsLiveSource* source, SrsCommonMessage* msg)
{
    srs_error_t err = srs_success;

    // for edge, directly proxy message to origin.
    if (info->edge) {
        if ((err = source->on_edge_proxy_publish(msg)) != srs_success) {
            return srs_error_wrap(err, "rtmp: proxy publish");
        }
        return err;
    }

    // process audio packet
    if (msg->header.is_audio()) {
        if ((err = source->on_audio(msg)) != srs_success) {
            return srs_error_wrap(err, "rtmp: consume audio");
        }
        return err;
    }
    // process video packet
    if (msg->header.is_video()) {
        if ((err = source->on_video(msg)) != srs_success) {
            return srs_error_wrap(err, "rtmp: consume video");
        }
        return err;
    }

    // process aggregate packet
    if (msg->header.is_aggregate()) {
        if ((err = source->on_aggregate(msg)) != srs_success) {
            return srs_error_wrap(err, "rtmp: consume aggregate");
        }
        return err;
    }

    // process onMetaData
    if (msg->header.is_amf0_data() || msg->header.is_amf3_data()) {
        SrsPacket* pkt = NULL;
        if ((err = rtmp->decode_message(msg, &pkt)) != srs_success) {
            return srs_error_wrap(err, "rtmp: decode message");
        }
        SrsAutoFree(SrsPacket, pkt);

        if (dynamic_cast<SrsOnMetaDataPacket*>(pkt)) {
            SrsOnMetaDataPacket* metadata = dynamic_cast<SrsOnMetaDataPacket*>(pkt);
            if ((err = source->on_meta_data(msg, metadata)) != srs_success) {
                return srs_error_wrap(err, "rtmp: consume metadata");
            }
            return err;
        }
        return err;
    }

    return err;
}

这里处理收到的源数据，下面分析一下音频的处理

srs_error_t SrsLiveSource::on_audio(SrsCommonMessage* shared_audio)
{
    srs_error_t err = srs_success;

    // monotically increase detect.
    if (!mix_correct && is_monotonically_increase) {
        if (last_packet_time > 0 && shared_audio->header.timestamp < last_packet_time) {
            is_monotonically_increase = false;
            srs_warn("AUDIO: stream not monotonically increase, please open mix_correct.");
        }
    }
    last_packet_time = shared_audio->header.timestamp;

    // convert shared_audio to msg, user should not use shared_audio again.
    // the payload is transfer to msg, and set to NULL in shared_audio.
    SrsSharedPtrMessage msg;
    if ((err = msg.create(shared_audio)) != srs_success) {
        return srs_error_wrap(err, "create message");
    }

    // directly process the audio message.
    if (!mix_correct) {
        return on_audio_imp(&msg);
    }

    // insert msg to the queue.
    mix_queue->push(msg.copy());

    // fetch someone from mix queue.
    SrsSharedPtrMessage* m = mix_queue->pop();
    if (!m) {
        return err;
    }

    // consume the monotonically increase message.
    if (m->is_audio()) {
        err = on_audio_imp(m);
    } else {
        err = on_video_imp(m);
    }
    srs_freep(m);

    return err;
}

SrsLiveSource::on_audio_imp(SrsSharedPtrMessage* msg)

srs_error_t SrsLiveSource::on_audio_imp(SrsSharedPtrMessage* msg)
{
    srs_error_t err = srs_success;

    bool is_aac_sequence_header = SrsFlvAudio::sh(msg->payload, msg->size);
    bool is_sequence_header = is_aac_sequence_header;

    // whether consumer should drop for the duplicated sequence header.
    bool drop_for_reduce = false;
    if (is_sequence_header && meta->previous_ash() && _srs_config->get_reduce_sequence_header(req->vhost)) {
        if (meta->previous_ash()->size == msg->size) {
            drop_for_reduce = srs_bytes_equals(meta->previous_ash()->payload, msg->payload, msg->size);
            srs_warn("drop for reduce sh audio, size=%d", msg->size);
        }
    }

    // Copy to hub to all utilities.
    if ((err = hub->on_audio(msg)) != srs_success) {
        return srs_error_wrap(err, "consume audio");
    }

    // For bridger to consume the message.
    if (bridger_ && (err = bridger_->on_audio(msg)) != srs_success) {
        return srs_error_wrap(err, "bridger consume audio");
    }

    // copy to all consumer
    if (!drop_for_reduce) {
        for (int i = 0; i < (int)consumers.size(); i++) {
            SrsLiveConsumer* consumer = consumers.at(i);
            if ((err = consumer->enqueue(msg, atc, jitter_algorithm)) != srs_success) {
                return srs_error_wrap(err, "consume message");
            }
        }
    }

    // cache the sequence header of aac, or first packet of mp3.
    // for example, the mp3 is used for hls to write the "right" audio codec.
    // TODO: FIXME: to refine the stream info system.
    if (is_aac_sequence_header || !meta->ash()) {
        if ((err = meta->update_ash(msg)) != srs_success) {
            return srs_error_wrap(err, "meta consume audio");
        }
    }

    // when sequence header, donot push to gop cache and adjust the timestamp.
    if (is_sequence_header) {
        return err;
    }

    // cache the last gop packets
    if ((err = gop_cache->cache(msg)) != srs_success) {
        return srs_error_wrap(err, "gop cache consume audio");
    }

    // if atc, update the sequence header to abs time.
    if (atc) {
        if (meta->ash()) {
            meta->ash()->timestamp = msg->timestamp;
        }
        if (meta->data()) {
            meta->data()->timestamp = msg->timestamp;
        }
    }

    return err;
}

这里把数据转发给SrsRtcFromRtmpBridger,上面都比较简单，下面着重分析一下SrsRtcFromRtmpBridger收到数据以后的语音转码

转码：aac转opus

FFmpeg/WebRTC/RTMP/NDK/Android音视频流媒体高级开发
学习资料、教学视频和学习路线图有需要的可以自行添加学习交流群960994558

技术共进，成长同行——讯飞AI开发者社区

更多推荐

AI赋能：智能电网的未来革命

智能电网通过传感器、智能电表和物联网设备收集海量数据，包括用电量、电压、电流、频率等实时信息。这些数据为人工智能提供了丰富的输入源，使其能够进行预测、优化和自动化决策。人工智能技术在智能电网中的应用主要体现在负荷预测、故障检测、能源调度和分布式能源管理等方面。结合图神经网络，可以分析电网拓扑结构中的故障传播路径，快速定位问题源头。能源调度是智能电网的核心问题，需要在满足需求的同时最小化成本和碳排放

讯飞AI开发者社区

【计算机视觉】概述

讯飞AI开发者社区

AI赋能智能家居：30字揭秘能耗管理黑科技

随着算法进步和硬件发展，未来的智能家居系统将实现更高精度的能耗管理和更自然的用户交互。人工智能模型可以识别能耗 patterns，预测未来能耗需求，并自动调整设备运行参数。深度学习算法在处理非结构化数据方面表现出色，能够从复杂的能耗数据中提取有价值的信息。智能家居设备产生的大数据为能耗管理提供了丰富的信息源。环境模拟智能家居系统的状态变化，智能体通过不断尝试和学习，找到最小化能耗的最优策略。这种方
