GPTCache介绍

随着应用程序越来越受欢迎并遇到更高的流量水平，与 LLM API 调用相关的费用可能会变得相当可观。此外，LLM 服务的响应时间可能会很慢，尤其是在处理大量请求时。GPTCache是一个致力于构建用于存储 LLM 响应的语义缓存的项目。

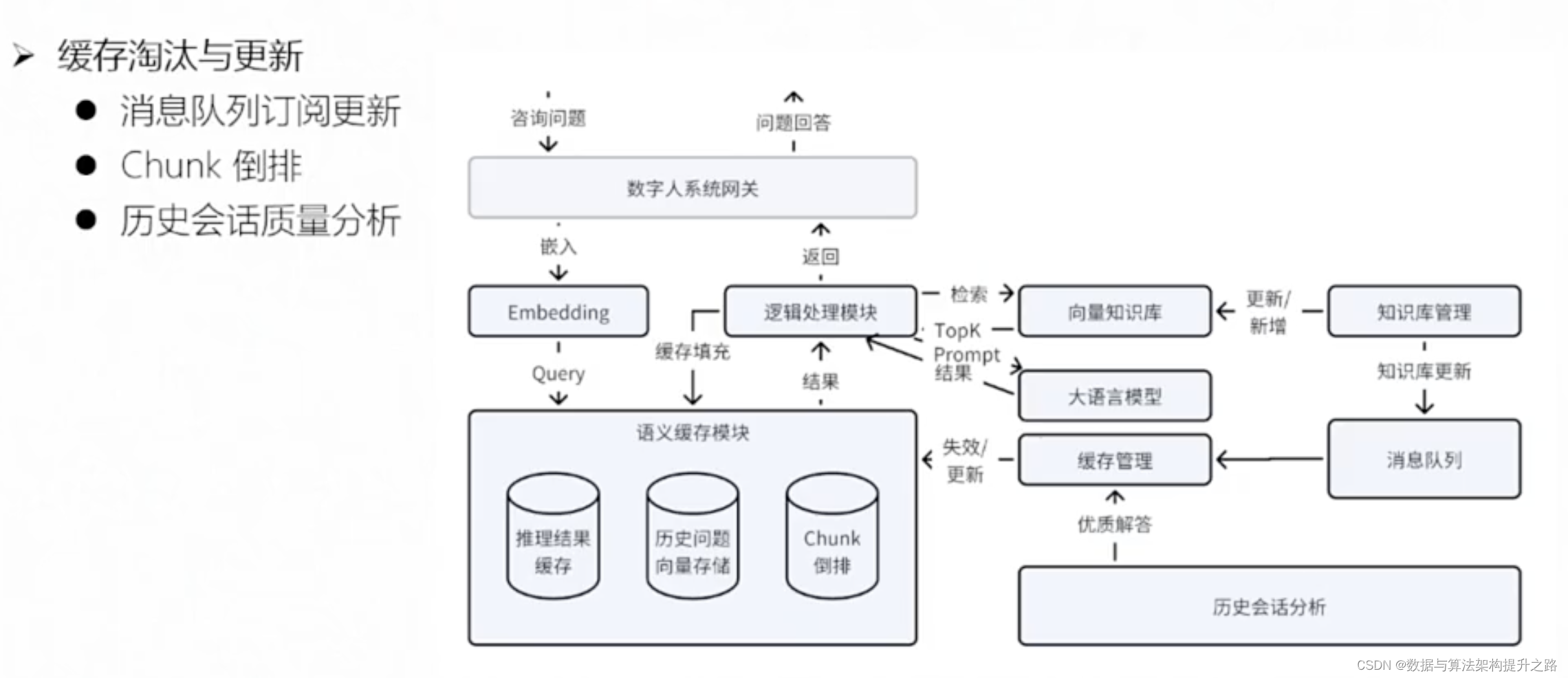

 项目架构

代码分段实现

1. 运行视觉问答示例

import openai
from gptcache import cache

# 问答函数
def ask_question(question, image_path=None):
    if image_path:
        prompt = f"Image: {image_path}\nQuestion: {question}"
    else:
        prompt = question

    response = openai.Completion.create(
        engine="davinci",
        prompt=prompt,
        max_tokens=50
    )
    return response['choices'][0]['text']

# 主函数
def main():

    # 示例图片和问题
    image_path = "path_to_image.jpg"
    question_text = "What is shown in this image?"


    # 处理包含图片的问答
    if cache.contains((image_path, question_text)):
        print("Cache hit:", cache.get((image_path, question_text)))
    else:
        answer = ask_question(question_text, image_path=image_path)
        cache.set((image_path, question_text), answer)
        print("Generated and cached:", answer)


if __name__ == "__main__":
    main()

2. 设置嵌入函数

嵌入函数的作用是将用户的查询和响应数据转换为嵌入向量，从而实现高效的缓存管理和相似性搜索。

def to_embeddings(data, **kwargs):
    return data

from gptcache.embedding import Onnx

onnx = Onnx()
embedding_func = onnx.to_embeddings

3. 设置数据管理器类

from gptcache.manager import get_data_manager, CacheBase, VectorBase
from gptcache import cache
import numpy as np

cache_base = CacheBase('sqlite')
vector_base = VectorBase('faiss', dimension=onnx.dimension)
data_manager = get_data_manager(cache_base, vector_base)

cache.init(
    embedding_func=embedding_func,
    data_manager=data_manager,
)

4. 初始化其他缓存参数

cache.init(
    embedding_func=embedding_func,
    data_manager=data_manager,
    similarity_evaluation=similarity_evaluation,
)
cache.set_openai_key('your_openai_api_key')

5. 使用 GPTCache 服务器

$ gptcache_server -s 0.0.0.0 -p 8000 -d /path/to/cache_directory -f /path/to/cache_config.yaml

 服务器配置示例（cache_config.yaml）：

embedding: onnx
embedding_config:
  # Set embedding model params here
storage_config:
  data_dir: gptcache_data
  manager: sqlite,faiss
  vector_params:
    # Set vector storage related params here
evaluation: distance
evaluation_config:
  # Set evaluation metric kws here
pre_function: get_prompt
post_function: first
config:
  similarity_threshold: 0.8
  # Set other config here

6. 基准测试

基准测试主要用于评估缓存系统的性能，包括缓存命中率、查询响应时间和资源利用率。通过基准测试，可以了解缓存策略的有效性，并根据测试结果进行优化

import json
import numpy as np
from gptcache import cache
from gptcache.manager import get_data_manager, CacheBase, VectorBase
from gptcache.similarity_evaluation.distance import SearchDistanceEvaluation

def mock_embeddings(data, **kwargs):
    return np.random.random((8,)).astype('float32')

cache_base = CacheBase('sqlite')
vector_base = VectorBase('faiss', dimension=8)
data_manager = get_data_manager(cache_base, vector_base)

cache.init(
    embedding_func=mock_embeddings,
    data_manager=data_manager,
    similarity_evaluation=SearchDistanceEvaluation(),
)
cache.set_openai_key('your_openai_api_key')

# 加载测试数据
with open('mock_data.json', 'r') as f:
    data = json.load(f)

# 进行基准测试
for item in data:
    prompt = item['prompt']
    answer = item['answer']

    if cache.contains(prompt):
        print("Cache hit:", cache.get(prompt))
    else:
        cache.set(prompt, answer)
        print("Generated and cached:", answer)

代码综合实现

import openai
from gptcache import cache
from gptcache.embedding import Onnx
from gptcache.manager import get_data_manager, CacheBase, VectorBase
from gptcache.similarity_evaluation.distance import SearchDistanceEvaluation
from gptcache.session import Session
import numpy as np
import json

openai.api_key = 'your_openai_api_key'

# 嵌入函数
def to_embeddings(data, **kwargs):
    return data



# 问答函数
def ask_question(question, image_path=None):
    if image_path:
        prompt = f"Image: {image_path}\nQuestion: {question}"
    else:
        prompt = question

    response = openai.Completion.create(
        engine="davinci",
        prompt=prompt,
        max_tokens=50
    )
    return response['choices'][0]['text']

# 主函数
def main():

    onnx = Onnx()
    embedding_func = onnx.to_embeddings

    # 数据管理器配置
    cache_base = CacheBase('sqlite')
    vector_base = VectorBase('faiss', dimension=onnx.dimension)
    data_manager = get_data_manager(cache_base, vector_base)

    # 初始化缓存
    cache.init(
        embedding_func=embedding_func,
        data_manager=data_manager,
        similarity_evaluation=SearchDistanceEvaluation(),
    )
    cache.set_openai_key('your_openai_api_key')

    # 示例图片和问题
    image_path = "path_to_image.jpg"
    question_text = "What is shown in this image?"


    # 处理包含图片的问答
    if cache.contains((image_path, question_text)):
        print("Cache hit:", cache.get((image_path, question_text)))
    else:
        answer = ask_question(question_text, image_path=image_path)
        cache.set((image_path, question_text), answer)
        print("Generated and cached:", answer)


# 基准测试
def benchmark():
    def mock_embeddings(data, **kwargs):
        return np.random.random((8,)).astype('float32')

    cache_base = CacheBase('sqlite')
    vector_base = VectorBase('faiss', dimension=8)
    data_manager = get_data_manager(cache_base, vector_base)

    cache.init(
        embedding_func=mock_embeddings,
        data_manager=data_manager,
        similarity_evaluation=SearchDistanceEvaluation(),
    )
    cache.set_openai_key('your_openai_api_key')

    # 加载测试数据
    with open('mock_data.json', 'r') as f:
        data = json.load(f)

    # 进行基准测试
    for item in data:
        prompt = item['prompt']
        answer = item['answer']

        if cache.contains(prompt):
            print("Cache hit:", cache.get(prompt))
        else:
            cache.set(prompt, answer)
            print("Generated and cached:", answer)

if __name__ == "__main__":

    main()
    benchmark()

知识拓展

KV Cache 是一种大模型服务端的缓存机制，用于存储模型在前向传播过程中生成的键（Key）和值（Value）。在 Transformer 结构中，注意力机制会计算查询（Query）与键和值之间的关系。在处理长序列或多轮对话时，直接重新计算所有的键和值会非常耗时且计算资源密集。KV Cache 通过缓存这些中间结果，避免了重复计算，从而大大提高了推理效率。

GPT2 中 KV Cache 代码实现：

class GPT2Attention(nn.Module):
    def forward(
        self,
        hidden_states: Optional[Tuple[torch.FloatTensor]],
        layer_past: Optional[Tuple[torch.Tensor]] = None,
        attention_mask: Optional[torch.FloatTensor] = None,
        head_mask: Optional[torch.FloatTensor] = None,
        encoder_hidden_states: Optional[torch.Tensor] = None,
        encoder_attention_mask: Optional[torch.FloatTensor] = None,
        use_cache: Optional[bool] = False,
        output_attentions: Optional[bool] = False,
    ) -> Tuple[Union[torch.Tensor, Tuple[torch.Tensor]], ...]:
        ...

        # 拆分 Q、K、V
        query, key, value = self.c_attn(hidden_states).split(self.split_size, dim=2)

        ...

        # [batch, sequence_len, embeded_dim] -> [batch, heads, sequence_len, head_dim]
        query = self._split_heads(query, self.num_heads, self.head_dim) # 当前token对应的query
        key = self._split_heads(key, self.num_heads, self.head_dim) # 当前token对应的key
        value = self._split_heads(value, self.num_heads, self.head_dim) # 当前token对应的value

        ##################################
        # KV Cache 核心代码逻辑
        if layer_past is not None:
            past_key, past_value = layer_past # 从 KV Cache 去数据
            key = torch.cat((past_key, key), dim=-2) # 将当前token的key与历史的K拼接
            value = torch.cat((past_value, value), dim=-2) # 将当前token的value与历史的V拼接

        if use_cache is True:
            present = (key, value) # 将数据存到 KV Cache
        else:
            present = None
        ##################################
        ...

        # 使用当前token的query与K和V计算注意力表示
        attn_output, attn_weights = self._attn(query, key, value, attention_mask, head_mask) # 返回att输出（激活）和权重

        # 合并多头注意力
        # attn_output: [batch, heads, sequence_len, head_dim] -> [batch, heads, embed_dim]
        attn_output = self._merge_heads(attn_output, self.num_heads, self.head_dim)

        attn_output = self.c_proj(attn_output)
        attn_output = self.resid_dropout(attn_output)

        outputs = (attn_output, present)
        if output_attentions:
            outputs += (attn_weights,)

        return outputs  # a, present, (attentions)

参考文章

大模型KV Cache产生背景及技术细节
