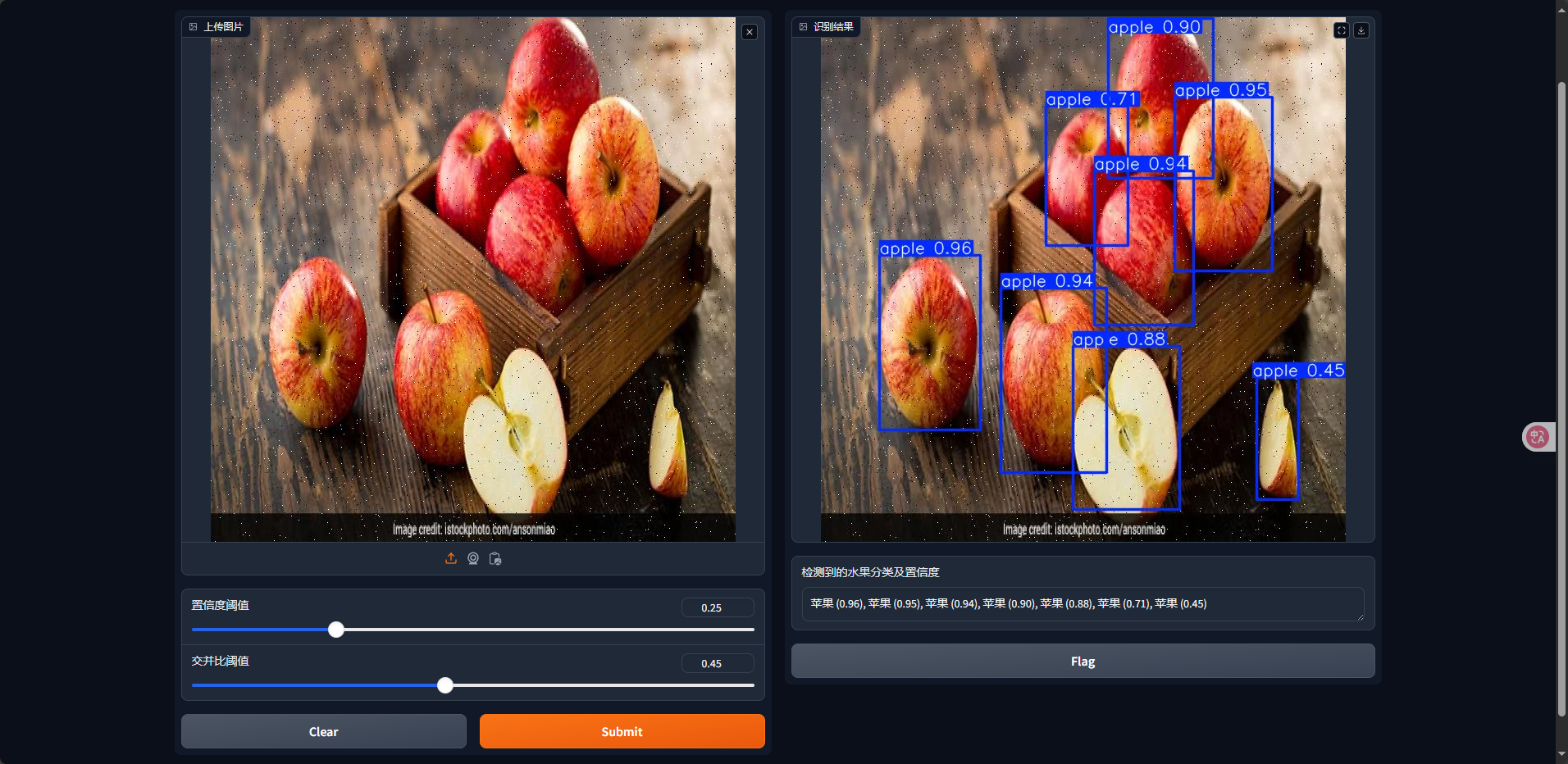

效果演示

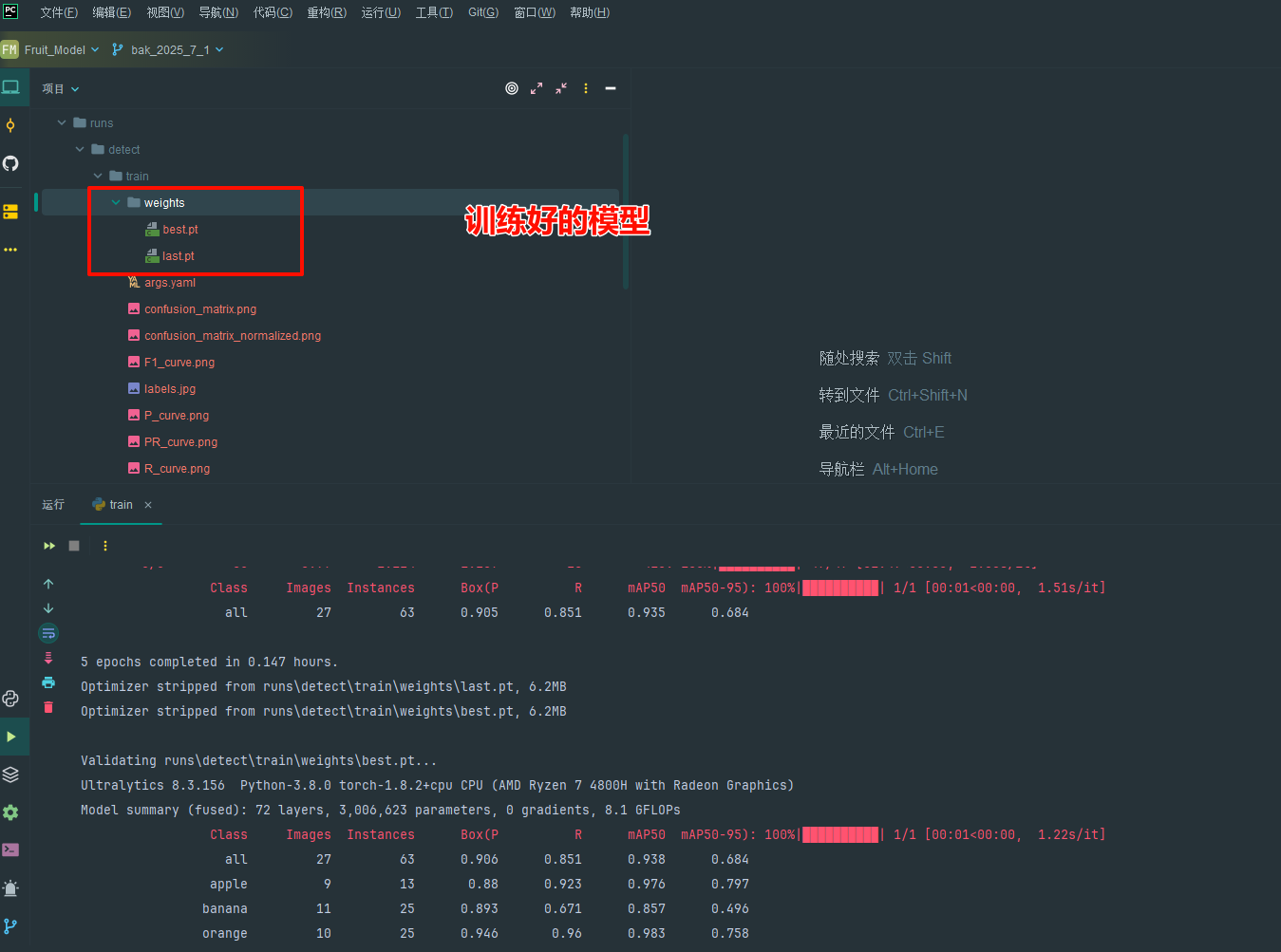

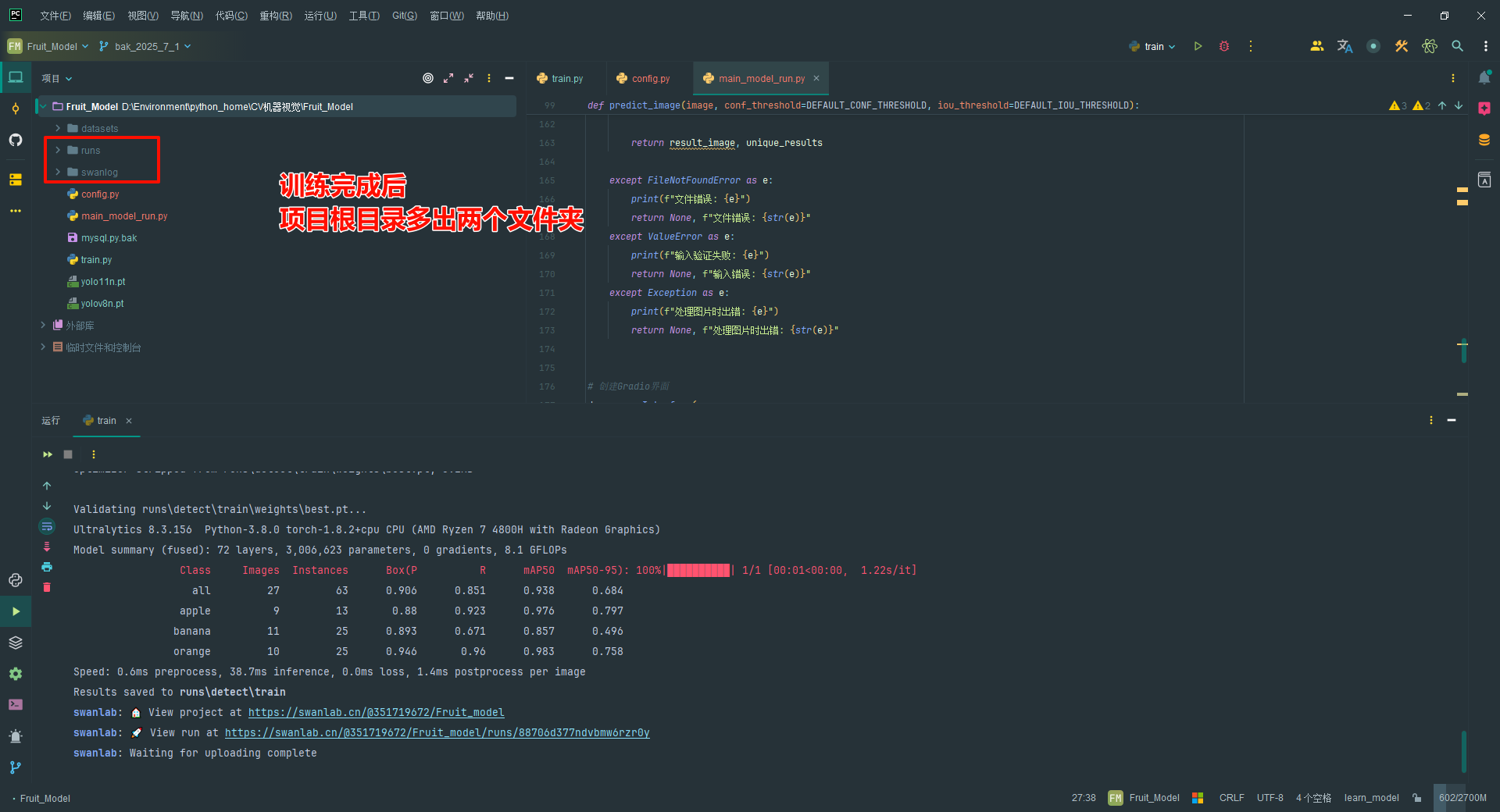

训练模型

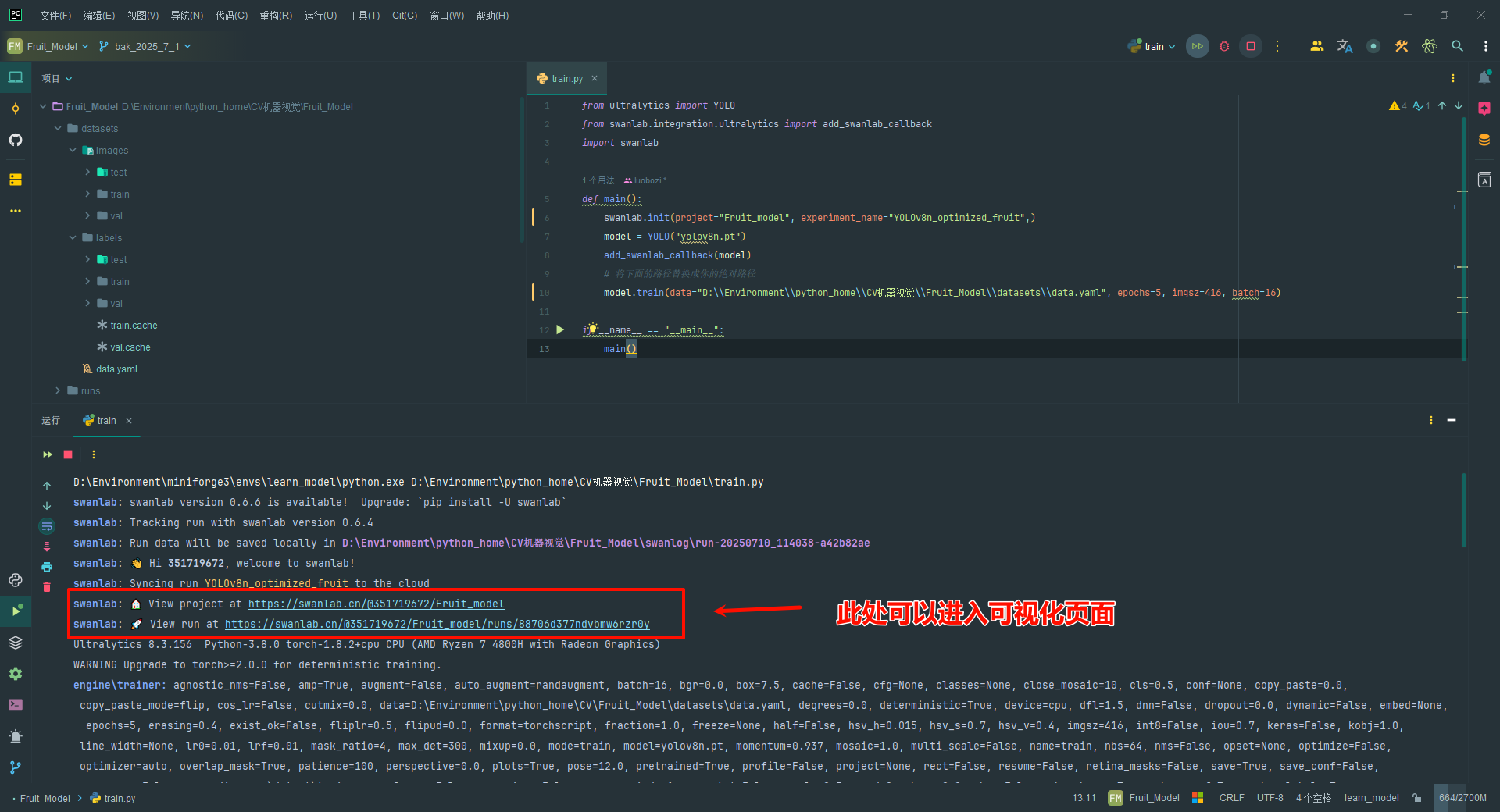

运行train.py，第一次运行需要注册swanlab账号，申请apikey

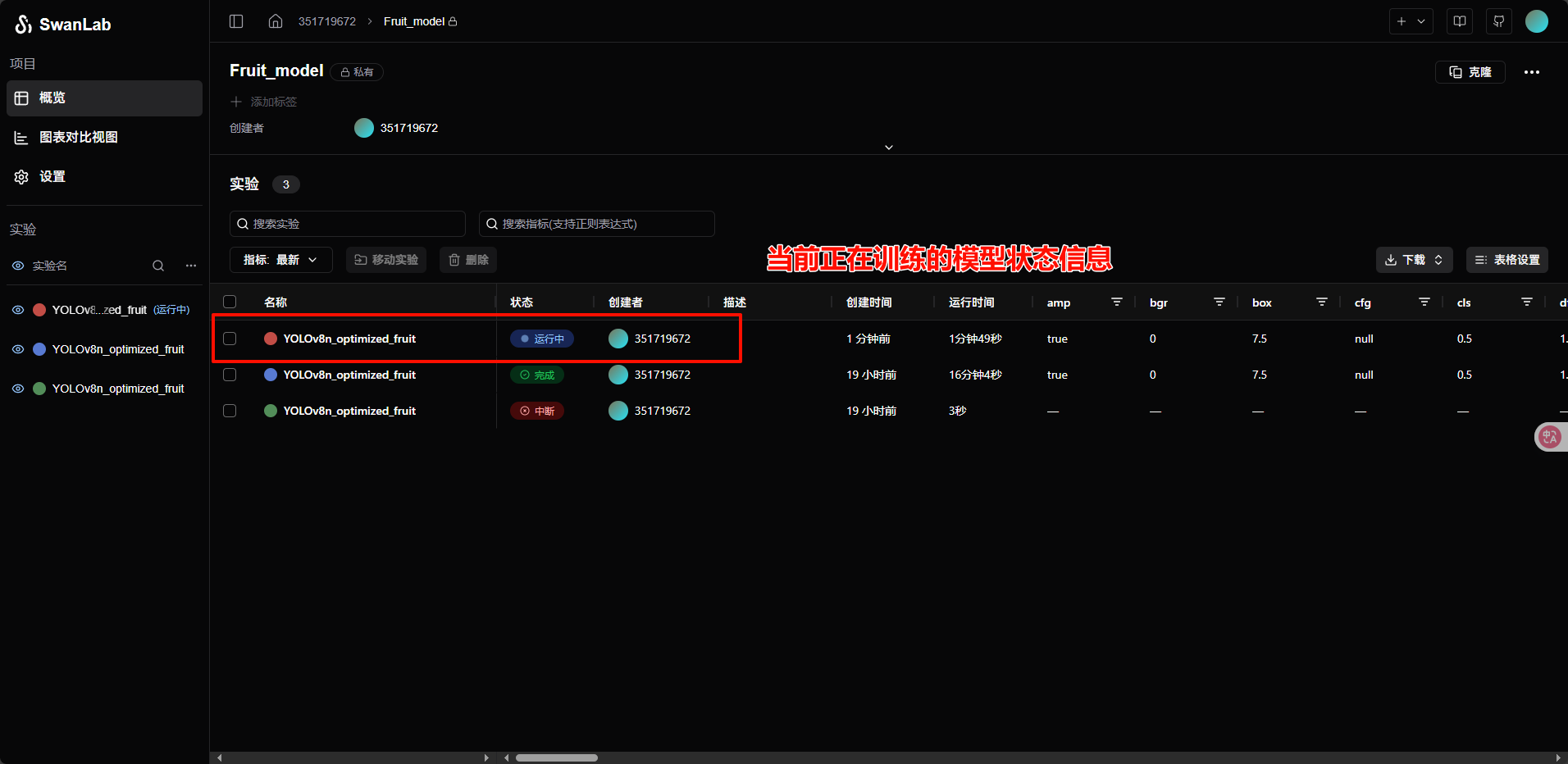

进入可视化页面后可以看到当前训练的一些详细的参数

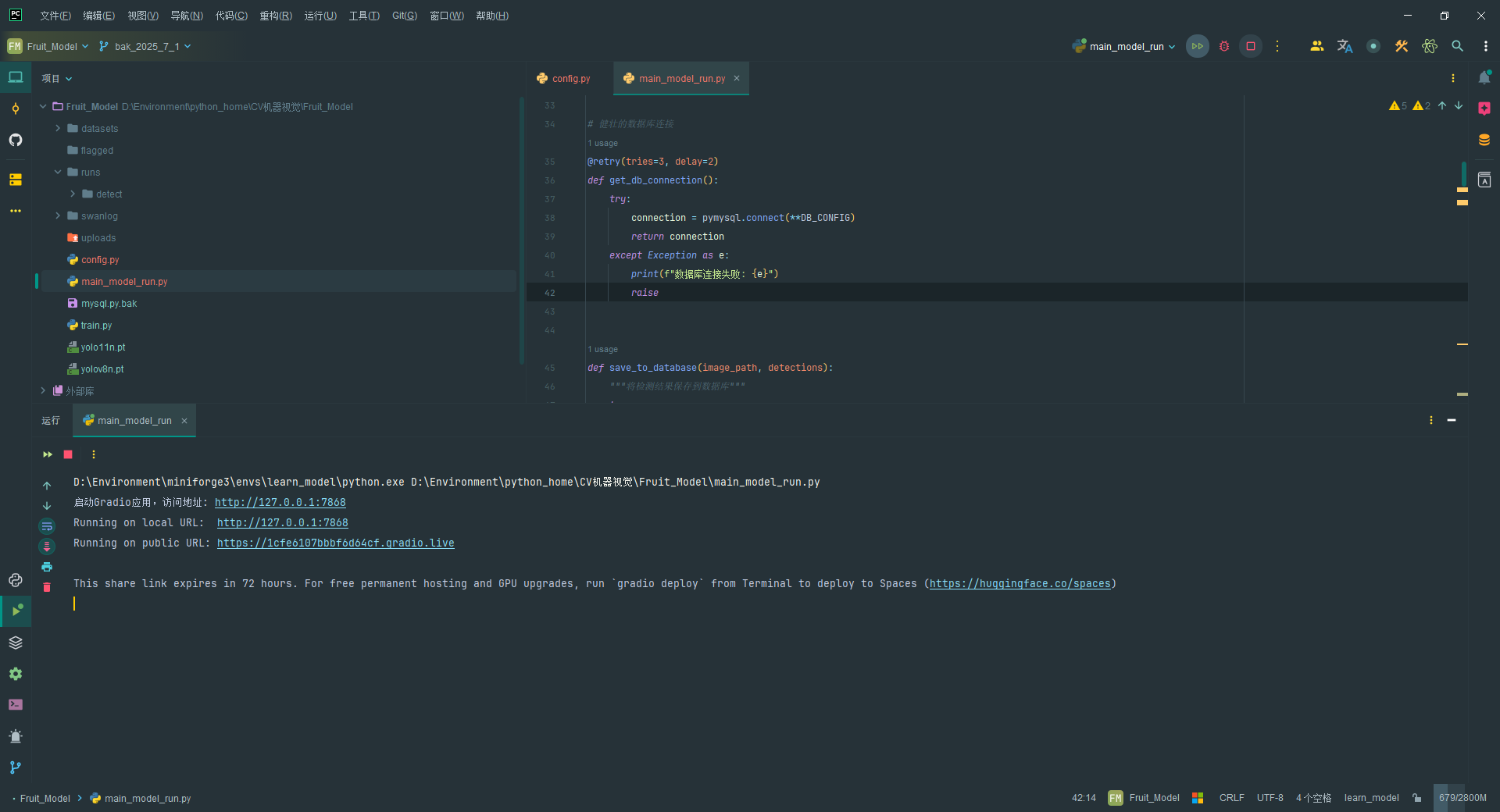

运行模型

访问网址

环境准备

依赖

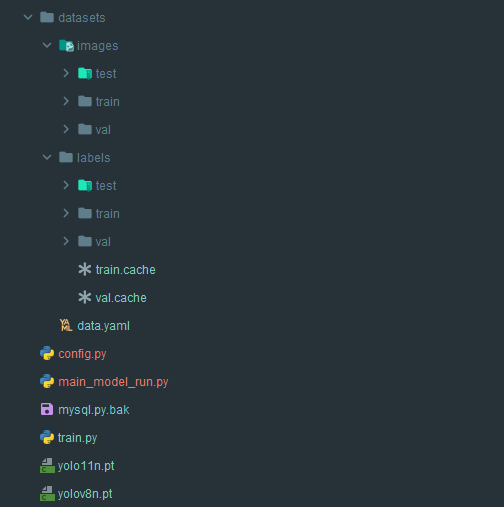

目录结构

准备好图片和标注文件

(learn_model) Fruit_Model> tree
卷 worker 的文件夹 PATH 列表
卷序列号为 AACB-A67E
D:.
├─datasets
│  ├─images
│  │  ├─test
│  │  ├─train
│  │  └─val
│  └─labels
│      ├─test
│      ├─train
│      └─val

定义数据集的结构和类别信息

D:\Environment\python_home\CV机器视觉\Fruit_Model\datasets\data.yaml

path: D:\Environment\python_home\CV机器视觉\Fruit_Model\datasets\
train: images/train
test: images/test
val: images/val

# class names
names:
  0: apple
  1: banana
  2: not apple
  3: not banana
  4: orange

训练模型

train.py

from ultralytics import YOLO
from swanlab.integration.ultralytics import add_swanlab_callback
import swanlab

def main():
    swanlab.init(project="Fruit_model", experiment_name="YOLOv8n_optimized_fruit",)
    model = YOLO("yolov8n.pt")
    add_swanlab_callback(model)
    # 将下面的路径替换成你的绝对路径
    model.train(data="D:\\Environment\\python_home\\CV机器视觉\\Fruit_Model\\datasets\\data.yaml", epochs=5, imgsz=416, batch=16)

if __name__ == "__main__":
    main()

启动模型APP

config.py

import os
import pymysql

# 项目根目录
BASE_DIR = os.path.dirname(os.path.abspath(__file__))

# 模型配置
MODEL_PATH = os.path.join(BASE_DIR, 'yolo11n.pt')

# 上传文件配置
UPLOAD_DIR = os.path.join(BASE_DIR, 'uploads')
os.makedirs(UPLOAD_DIR, exist_ok=True)

# 数据库配置
DB_CONFIG = {
    "host": "192.168.100.153",
    "user": "root",
    "password": "123456",
    "database": "fruit_db",
    "charset": "utf8mb4",
    "cursorclass": pymysql.cursors.DictCursor,
    "connect_timeout": 10  # 连接超时时间（秒）
}

# 类别映射表
CLASS_NAME_MAPPING = {
    "apple": "苹果",
    "banana": "香蕉",
    "not apple": "不是苹果",
    "not banana": "不是香蕉",
    "orange": "橘子"
}

# 模型默认参数
DEFAULT_CONF_THRESHOLD = 0.25
DEFAULT_IOU_THRESHOLD = 0.45
DEFAULT_IMGSZ = 416

# Gradio 服务器配置
GRADIO_SERVER_CONFIG = {
    "share": True,
    "server_name": "127.0.0.1",
    "server_port": 7868
}

main.py

import gradio as gr
from ultralytics import YOLO
from PIL import Image
import pymysql
from datetime import datetime
import os
import time
from config import (
    MODEL_PATH, UPLOAD_DIR, DB_CONFIG, CLASS_NAME_MAPPING,
    DEFAULT_CONF_THRESHOLD, DEFAULT_IOU_THRESHOLD, DEFAULT_IMGSZ,
    GRADIO_SERVER_CONFIG
)


# 重试装饰器
def retry(tries=3, delay=1):
    def decorator(func):
        def wrapper(*args, **kwargs):
            attempt = 0
            while attempt < tries:
                try:
                    return func(*args, **kwargs)
                except Exception as e:
                    attempt += 1
                    if attempt == tries:
                        raise e
                    time.sleep(delay)

        return wrapper

    return decorator


# 健壮的数据库连接
@retry(tries=3, delay=2)
def get_db_connection():
    try:
        connection = pymysql.connect(**DB_CONFIG)
        return connection
    except Exception as e:
        print(f"数据库连接失败: {e}")
        raise


def save_to_database(image_path, detections):
    """将检测结果保存到数据库"""
    try:
        with get_db_connection() as connection:
            with connection.cursor() as cursor:
                # 插入检测记录
                insert_detection_query = """
                INSERT INTO detections (image_path, upload_time)
                VALUES (%s, %s)
                """
                upload_time = datetime.now()
                cursor.execute(insert_detection_query, (image_path, upload_time))
                detection_id = cursor.lastrowid

                # 批量插入检测结果
                insert_result_query = """
                INSERT INTO detection_results
                (detection_id, english_name, chinese_name, confidence)
                VALUES (%s, %s, %s, %s)
                """
                result_data = [
                    (detection_id, english_name, chinese_name, confidence)
                    for english_name, chinese_name, confidence in detections
                ]
                cursor.executemany(insert_result_query, result_data)

                connection.commit()
                print(f"成功保存 {len(detections)} 条检测结果到数据库")

    except Exception as e:
        print(f"数据库操作失败: {e}")
        # 可以添加日志记录或其他恢复机制


def validate_image(image):
    """验证图像有效性"""
    if image is None:
        raise ValueError("请上传有效图像")

    # 检查图像尺寸
    width, height = image.size
    if width < 10 or height < 10:
        raise ValueError("图像尺寸过小")

    # 检查图像模式
    if image.mode not in ('RGB', 'RGBA'):
        try:
            image = image.convert('RGB')
        except Exception as e:
            raise ValueError("无法转换图像格式") from e

    return image


def predict_image(image, conf_threshold=DEFAULT_CONF_THRESHOLD, iou_threshold=DEFAULT_IOU_THRESHOLD):
    try:
        # 验证输入
        image = validate_image(image)

        # 保存原始图像
        timestamp = datetime.now().strftime("%Y%m%d%H%M%S")
        temp_image_path = os.path.join(UPLOAD_DIR, f"{timestamp}.jpg")

        # 确保文件名不冲突
        counter = 1
        while os.path.exists(temp_image_path):
            temp_image_path = os.path.join(UPLOAD_DIR, f"{timestamp}_{counter}.jpg")
            counter += 1

        image.save(temp_image_path)

        # 加载模型
        if not hasattr(predict_image, 'model'):
            if not os.path.exists(MODEL_PATH):
                raise FileNotFoundError(f"模型文件不存在: {MODEL_PATH}")
            predict_image.model = YOLO(MODEL_PATH)

        # 模型推理
        results = predict_image.model.predict(
            source=image,
            conf=conf_threshold,
            iou=iou_threshold,
            imgsz=DEFAULT_IMGSZ
        )

        # 处理检测结果
        detections = []
        class_results = []

        for r in results:
            # 绘制结果图像
            im_array = r.plot()
            result_image = Image.fromarray(im_array[..., ::-1])

            # 提取检测信息
            if r.boxes is not None and len(r.boxes) > 0:
                for box in r.boxes:
                    class_id = int(box.cls)
                    confidence = float(box.conf)

                    # 验证类别ID有效性
                    if class_id >= len(predict_image.model.names):
                        continue

                    english_name = predict_image.model.names[class_id]
                    chinese_name = CLASS_NAME_MAPPING.get(english_name, english_name)

                    detections.append((english_name, chinese_name, confidence))
                    class_results.append(f"{chinese_name} ({confidence:.2f})")

        # 保存到数据库
        if detections:
            save_to_database(temp_image_path, detections)

        # 格式化结果
        unique_results = ", ".join(sorted(set(class_results), key=class_results.index)) if class_results else "未检测到目标"
        print(f"检测结果: {unique_results}")

        return result_image, unique_results

    except FileNotFoundError as e:
        print(f"文件错误: {e}")
        return None, f"文件错误: {str(e)}"
    except ValueError as e:
        print(f"输入验证失败: {e}")
        return None, f"输入错误: {str(e)}"
    except Exception as e:
        print(f"处理图片时出错: {e}")
        return None, f"处理图片时出错: {str(e)}"


# 创建Gradio界面
demo = gr.Interface(
    fn=predict_image,
    inputs=[
        gr.Image(type="pil", label="上传图片"),
        gr.Slider(0, 1, DEFAULT_CONF_THRESHOLD, label="置信度阈值"),
        gr.Slider(0, 1, DEFAULT_IOU_THRESHOLD, label="交并比阈值"),
    ],
    outputs=[
        gr.Image(type="pil", label="识别结果"),
        gr.Textbox(label="检测到的水果分类及置信度")
    ],
    title="人工智能识别系统",
    description="请上传一张水果的图像进行识别",
    examples=[
        ["examples/apple.jpg", 0.3, 0.45],
        ["examples/banana.jpg", 0.25, 0.5]
    ] if os.path.exists("examples") else None
)

# 启动应用
if __name__ == "__main__":
    print(
        f"启动Gradio应用，访问地址: http://{GRADIO_SERVER_CONFIG['server_name']}:{GRADIO_SERVER_CONFIG['server_port']}")
    demo.launch(**GRADIO_SERVER_CONFIG)
