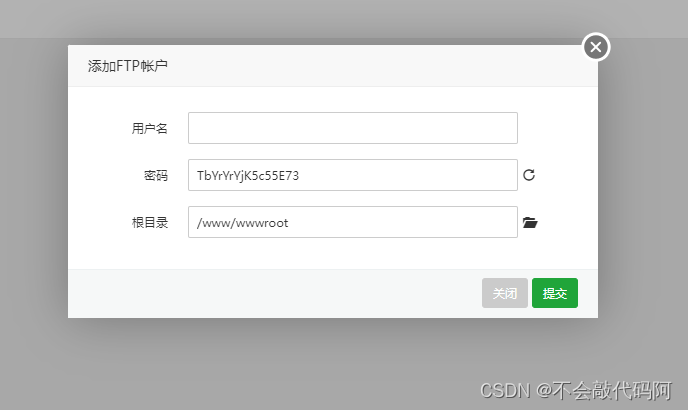

一：创建FTP

填入账号密码后，选择根目录，这个根目录就是nginx要代理的目录

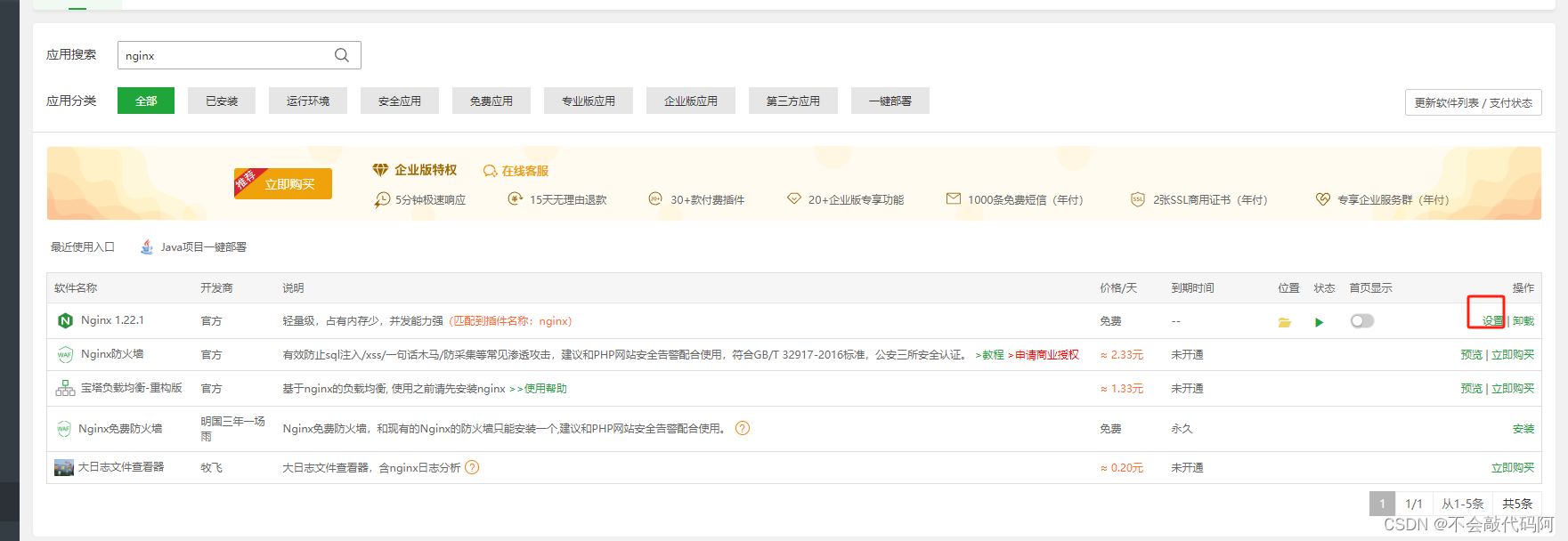

二：配置nginx

root的地址就是上面填的FTP根目录

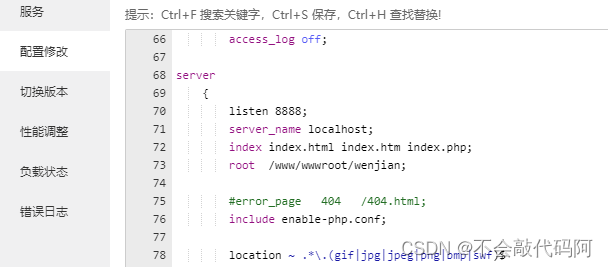

nginx配置文件

user  www www;
worker_processes auto;
error_log  /www/wwwlogs/nginx_error.log  crit;
pid        /www/server/nginx/logs/nginx.pid;
worker_rlimit_nofile 51200;

stream {
    log_format tcp_format '$time_local|$remote_addr|$protocol|$status|$bytes_sent|$bytes_received|$session_time|$upstream_addr|$upstream_bytes_sent|$upstream_bytes_received|$upstream_connect_time';

    access_log /www/wwwlogs/tcp-access.log tcp_format;
    error_log /www/wwwlogs/tcp-error.log;
    include /www/server/panel/vhost/nginx/tcp/*.conf;
}

events
    {
        use epoll;
        worker_connections 51200;
        multi_accept on;
    }

http
    {
        include       mime.types;
		#include luawaf.conf;

		include proxy.conf;
        lua_package_path "/www/server/nginx/lib/lua/?.lua;;";

        default_type  application/octet-stream;

        server_names_hash_bucket_size 512;
        client_header_buffer_size 32k;
        large_client_header_buffers 4 32k;
        client_max_body_size 50m;

        sendfile   on;
        tcp_nopush on;

        keepalive_timeout 60;

        tcp_nodelay on;

        fastcgi_connect_timeout 300;
        fastcgi_send_timeout 300;
        fastcgi_read_timeout 300;
        fastcgi_buffer_size 64k;
        fastcgi_buffers 4 64k;
        fastcgi_busy_buffers_size 128k;
        fastcgi_temp_file_write_size 256k;
		fastcgi_intercept_errors on;

        gzip on;
        gzip_min_length  1k;
        gzip_buffers     4 16k;
        gzip_http_version 1.1;
        gzip_comp_level 2;
        gzip_types     text/plain application/javascript application/x-javascript text/javascript text/css application/xml application/json image/jpeg image/gif image/png font/ttf font/otf image/svg+xml application/xml+rss text/x-js;
        gzip_vary on;
        gzip_proxied   expired no-cache no-store private auth;
        gzip_disable   "MSIE [1-6]\.";

        limit_conn_zone $binary_remote_addr zone=perip:10m;
		limit_conn_zone $server_name zone=perserver:10m;

        server_tokens off;
        access_log off;

server
    {
        listen 8888;  //该端口表示要监听的服务，防火墙记得开放
        server_name localhost;
        index index.html index.htm index.php;
        root  /www/wwwroot/wenjian;

        #error_page   404   /404.html;
        include enable-php.conf;

        location ~ .*\.(gif|jpg|jpeg|png|bmp|swf)$
        {
            expires      30d;
        }

        location ~ .*\.(js|css)?$
        {
            expires      12h;
        }

        location ~ /\.
        {
            deny all;
        }

        access_log  /www/wwwlogs/access.log;
    }
include /www/server/panel/vhost/nginx/*.conf;
}

三：http访问

服务器ip+端口号加图片

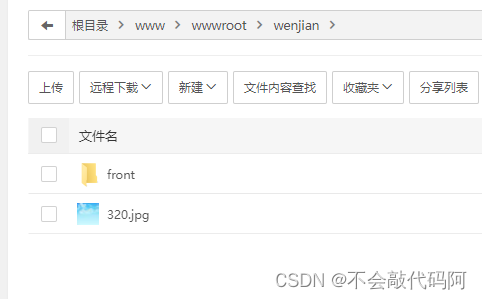

例如我放了一个320.jp
我服务器ip是110.120.120.120

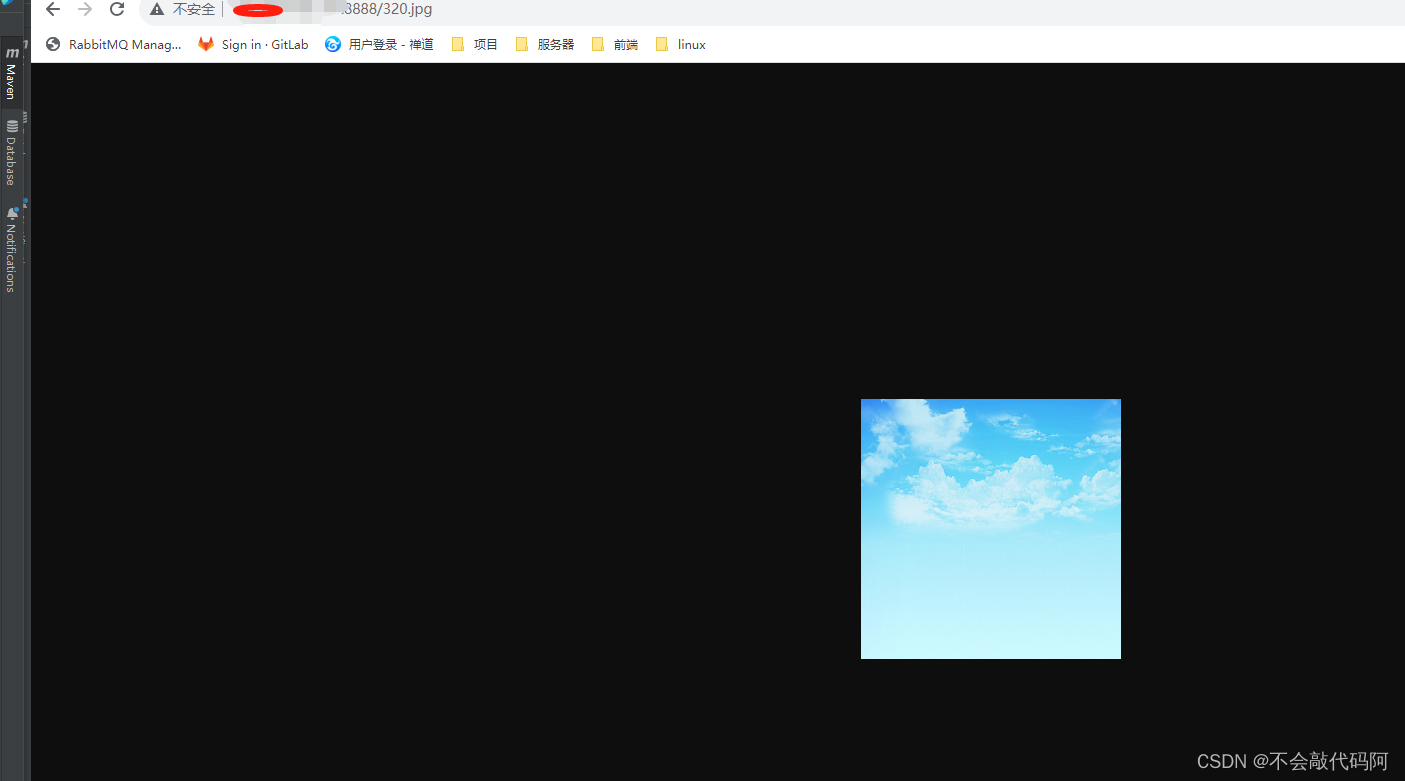

那么访问就是110.120.120.120:8888/320.jpg

四：总结

1.如果按照我的方法不行的话，linux你还得开放端口、关闭防火墙，并且在服务器也开放端口才能访问，比如我的端口是8888那么你久要开放8888的端口，linux版本还要多授权个权限，实在不行装个宝塔，我感觉挺方便的。

2.创作不易记得点赞三连，这个都是可用的.
