开始慢慢用Mpy做一些实际的东西了，将micropython发扬光大！
找到了一些动手能力强的小伙伴，修正了我自己手残的BUG。

这次想做个好玩的，驱动电机组，其实是要带17个电机的，常见的电机驱动板PCA9685可以带16个，先凑合用吧！

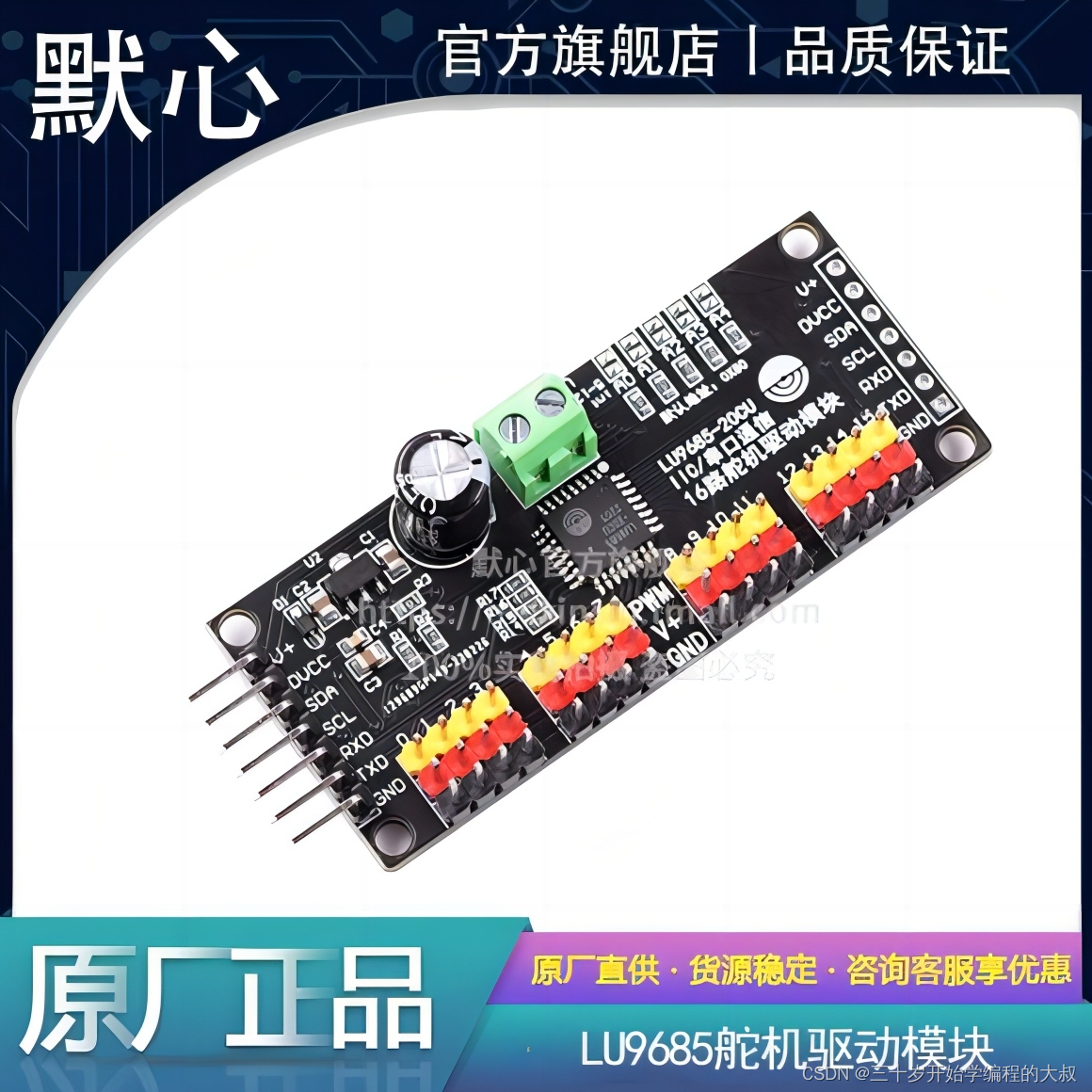

上来先踩个坑，因为图便宜先买了一个淘宝的国产电机驱动板，号称代替PCA9685，上当了，搞了半天，I2C地址都扫不到，奶奶的，玩我是吧，狗都不用这破板子，就是这个LU9685，说的就是你，还特意买了俩，I2C都没接通，恨死你，客服十天不答复，手册上跟PCA9685的用法也完全一样，信你个鬼！

有头铁的欢迎继续踩坑这个板子。

继续正题，github有现成的驱动，又买了俩PCA9685，直接用，直接过，真香，继续搬运代码：
pca9695.py

import ustruct
import time


class PCA9685:
    def __init__(self, i2c, address=0x40):
        self.i2c = i2c
        self.address = address
        self.reset()

    def _write(self, address, value):
        self.i2c.writeto_mem(self.address, address, bytearray([value]))

    def _read(self, address):
        return self.i2c.readfrom_mem(self.address, address, 1)[0]

    def reset(self):
        self._write(0x00, 0x00) # Mode1

    def freq(self, freq=None):
        if freq is None:
            return int(25000000.0 / 4096 / (self._read(0xfe) - 0.5))
        prescale = int(25000000.0 / 4096.0 / freq + 0.5)
        old_mode = self._read(0x00) # Mode 1
        self._write(0x00, (old_mode & 0x7F) | 0x10) # Mode 1, sleep
        self._write(0xfe, prescale) # Prescale
        self._write(0x00, old_mode) # Mode 1
        time.sleep_us(5)
        self._write(0x00, old_mode | 0xa1) # Mode 1, autoincrement on

    def pwm(self, index, on=None, off=None):
        if on is None or off is None:
            data = self.i2c.readfrom_mem(self.address, 0x06 + 4 * index, 4)
            return ustruct.unpack('<HH', data)
        data = ustruct.pack('<HH', on, off)
        self.i2c.writeto_mem(self.address, 0x06 + 4 * index,  data)

    def duty(self, index, value=None, invert=False):
        if value is None:
            pwm = self.pwm(index)
            if pwm == (0, 4096):
                value = 0
            elif pwm == (4096, 0):
                value = 4095
            value = pwm[1]
            if invert:
                value = 4095 - value
            return value
        if not 0 <= value <= 4095:
            raise ValueError("Out of range")
        if invert:
            value = 4095 - value
        if value == 0:
            self.pwm(index, 0, 4096)
        elif value == 4095:
            self.pwm(index, 4096, 0)
        else:
            self.pwm(index, 0, value)

test.py

import pca9685
import math
from machine import SoftI2C,Pin
i2c=SoftI2C(scl=Pin(7),sda=Pin(6))


class Servos:
    def __init__(self, i2c, address=0x40, freq=50, min_us=600, max_us=2400,
                 degrees=180):
        self.period = 1000000 / freq
        self.min_duty = self._us2duty(min_us)
        self.max_duty = self._us2duty(max_us)
        self.degrees = degrees
        self.freq = freq
        self.pca9685 = pca9685.PCA9685(i2c, address)
        self.pca9685.freq(freq)

    def _us2duty(self, value):
        return int(4095 * value / self.period)

    def position(self, index, degrees=None, radians=None, us=None, duty=None):
        span = self.max_duty - self.min_duty
        if degrees is not None:
            duty = self.min_duty + span * degrees / self.degrees
        elif radians is not None:
            duty = self.min_duty + span * radians / math.radians(self.degrees)
        elif us is not None:
            duty = self._us2duty(us)
        elif duty is not None:
            pass
        else:
            return self.pca9685.duty(index)
        duty = min(self.max_duty, max(self.min_duty, int(duty)))
        self.pca9685.duty(index, duty)

    def release(self, index):
        self.pca9685.duty(index, 0)

servo=Servos(i2c, address=0x40, freq=50, min_us=600, max_us=2400, degrees=180)
servo.position(0,degrees=50)

后面我会发布效果，先卖个关子。
